ZLA574
DESCRIPTION
This is a brand new product developed by BOLANY after a year of meticulous polishing. Firstly, it features a 36mm large inner tube, turtle and rabbit damping adjustment, 160mm large stroke, compatibility with multiple size specifications, and X-shaped fork shoulder reinforcement design. It can be said that this product has undergone multiple tests and optimizations, and is a mature product that has been integrated into one.
FEATURES

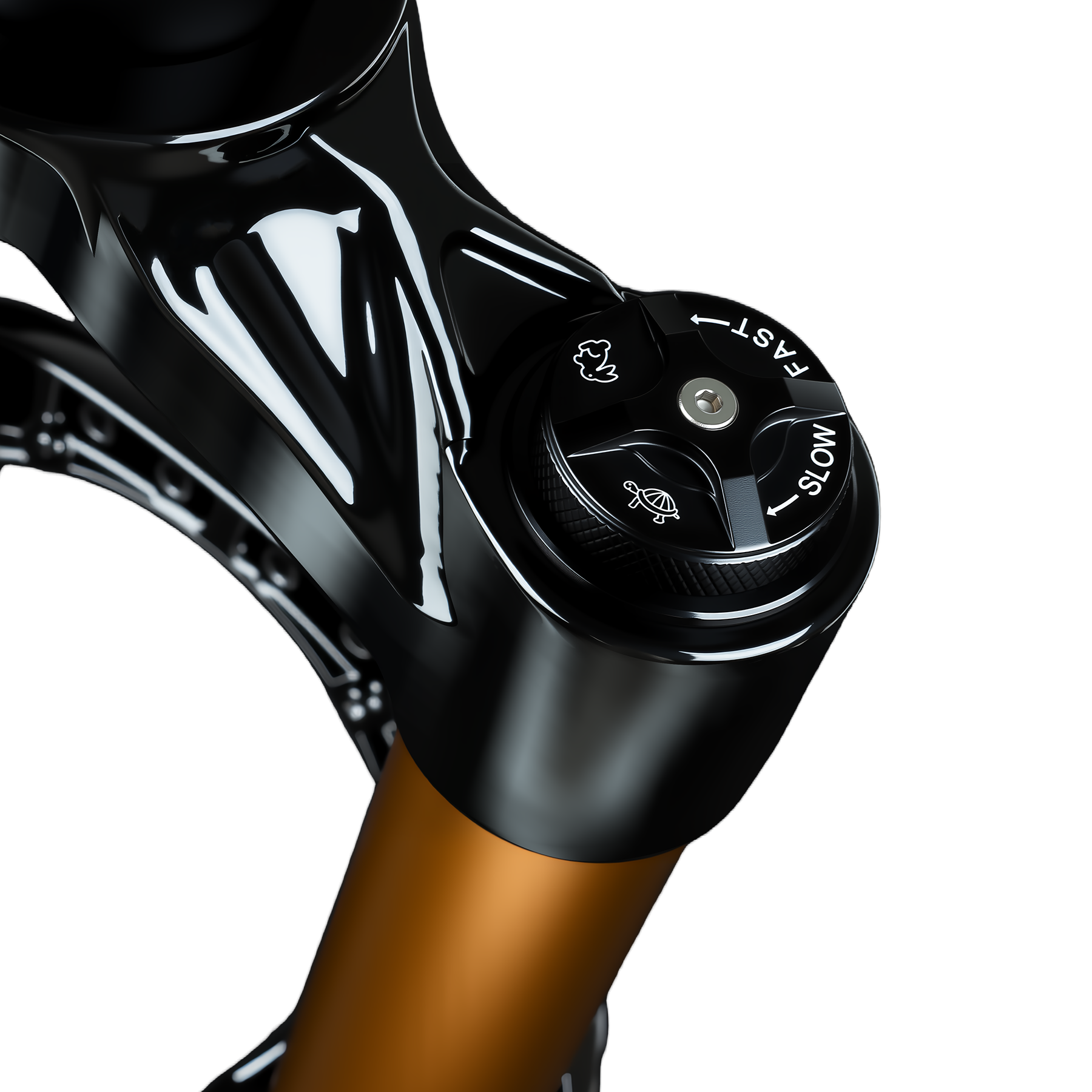

Adjustable damping: The top cover rebound adjustment function can achieve customized damping to meet your off-road needs.
Sturdy directional tube: equipped with a straight 28.6mm or tapered 39.8mm directional tube to ensure stability.
Adjustable size: Suitable for various wheel diameters (26/27.5/29 inches) to meet diverse usage needs.
Durable material: Adopting a 36mm tube structure, equipped with PTFE and sponge lining to ensure long-term durability.

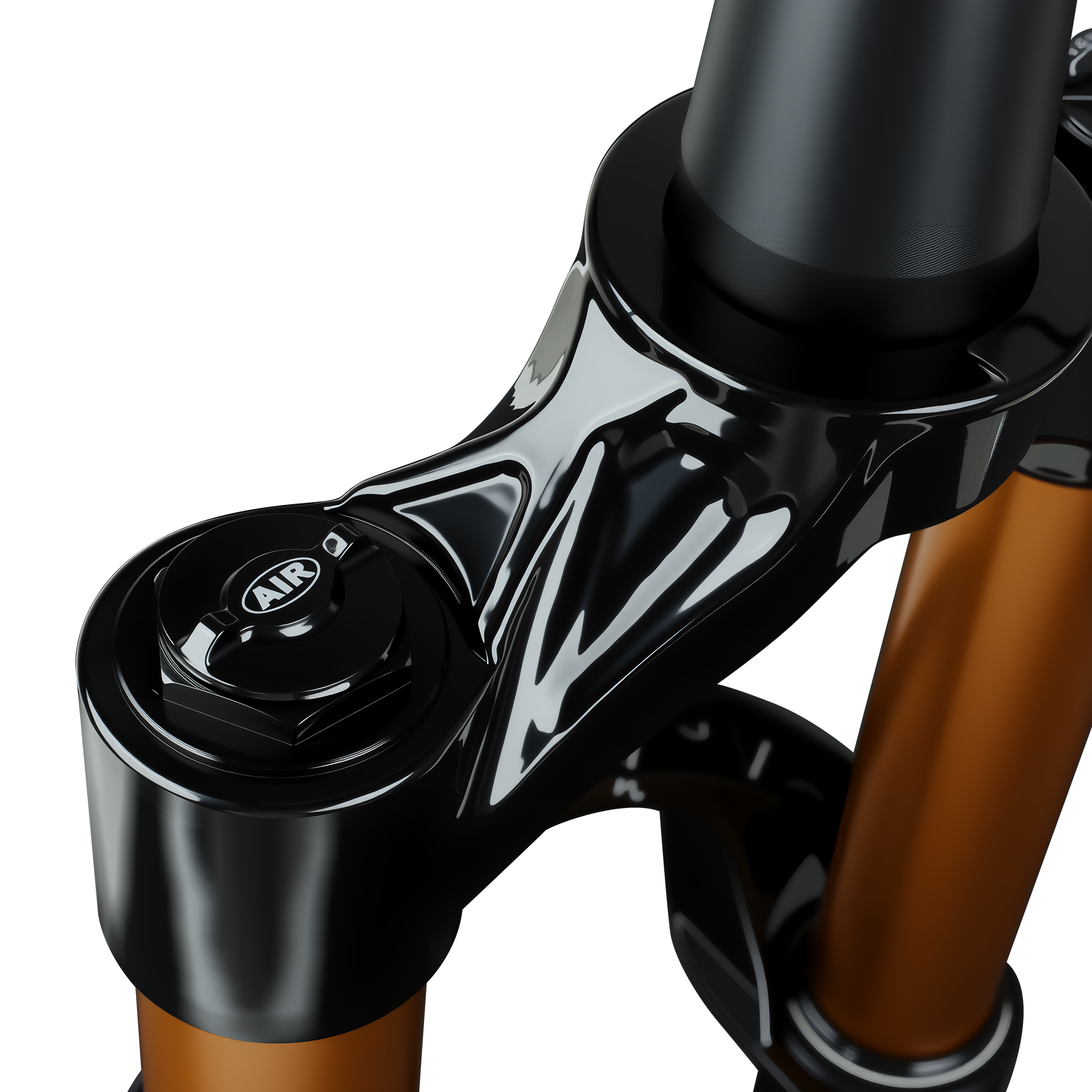

Suspension performance: Equipped with a 160mm stroke pneumatic front fork, providing a smooth riding experience for mountain bikes.

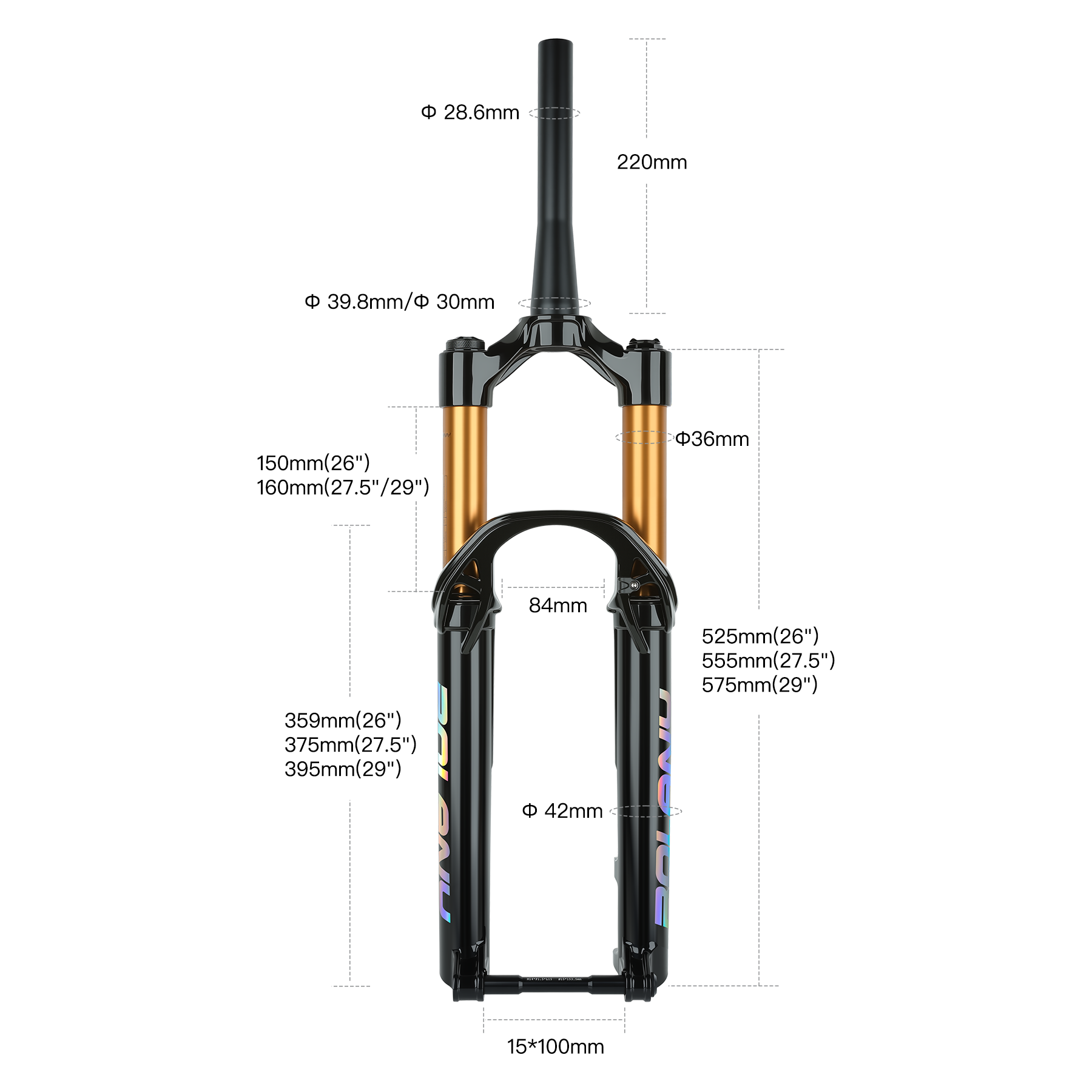

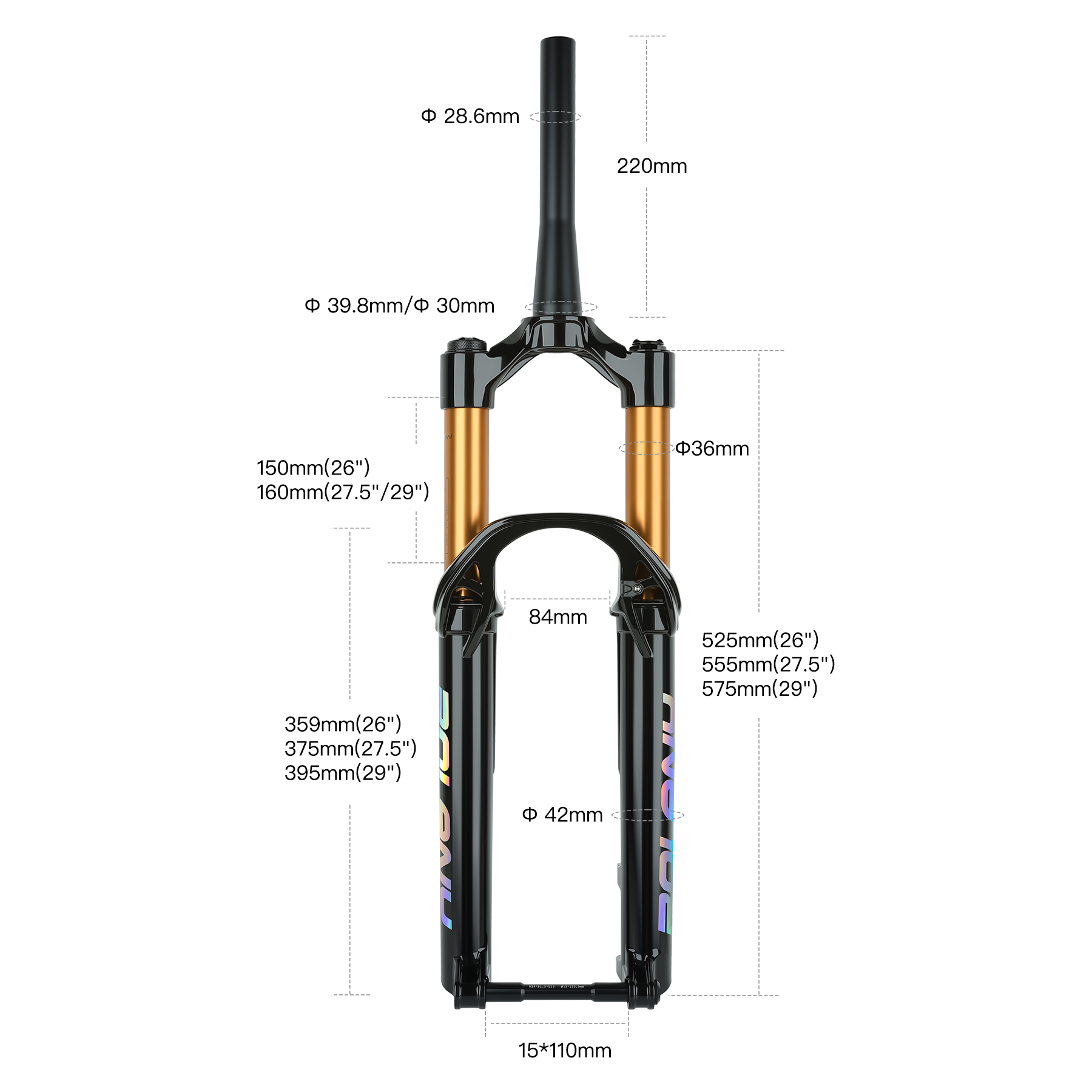

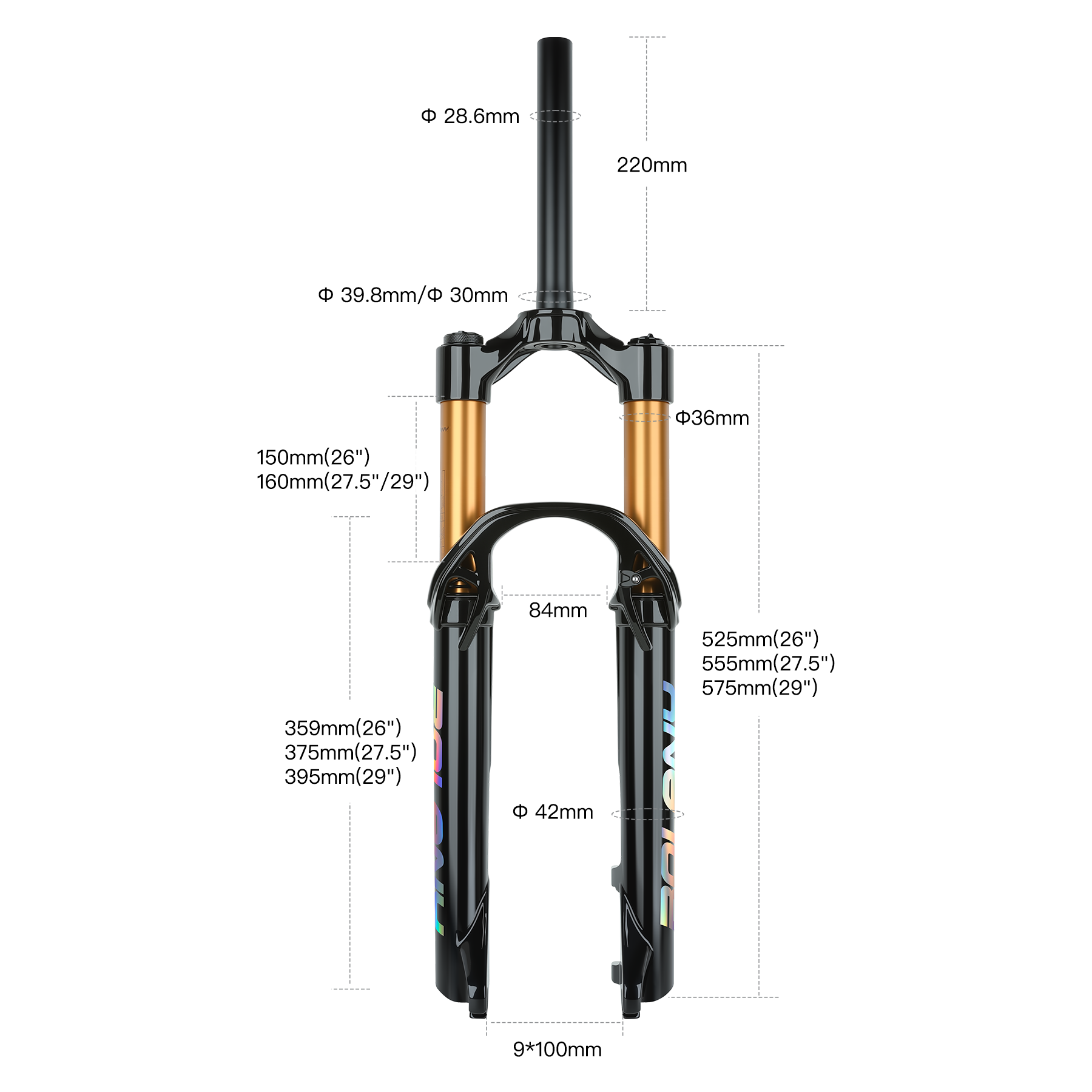

Specifications
Brand
BOLANY
Fork Type
AM Mountain Bike Air Fork
Travel
26": 150mm, 27.5"-29": 160mm
Damping Adjustment
Top Cap Rebound Damping Adjustment
Stanchion Diameter
36mm
Lockout System
None
Color
Black Legs / Gold Stanchions
Wheel Size
26" / 27.5" / 29"
Weight
1980g–2170g
Max Tire Width
2.7"
Steerer Tube
Straight 28.6mm / Tapered 39.8mm
Steerer Tube Length
220mm
Structure
Teflon + Sponge + Oil Port Screw Design
Axle Type

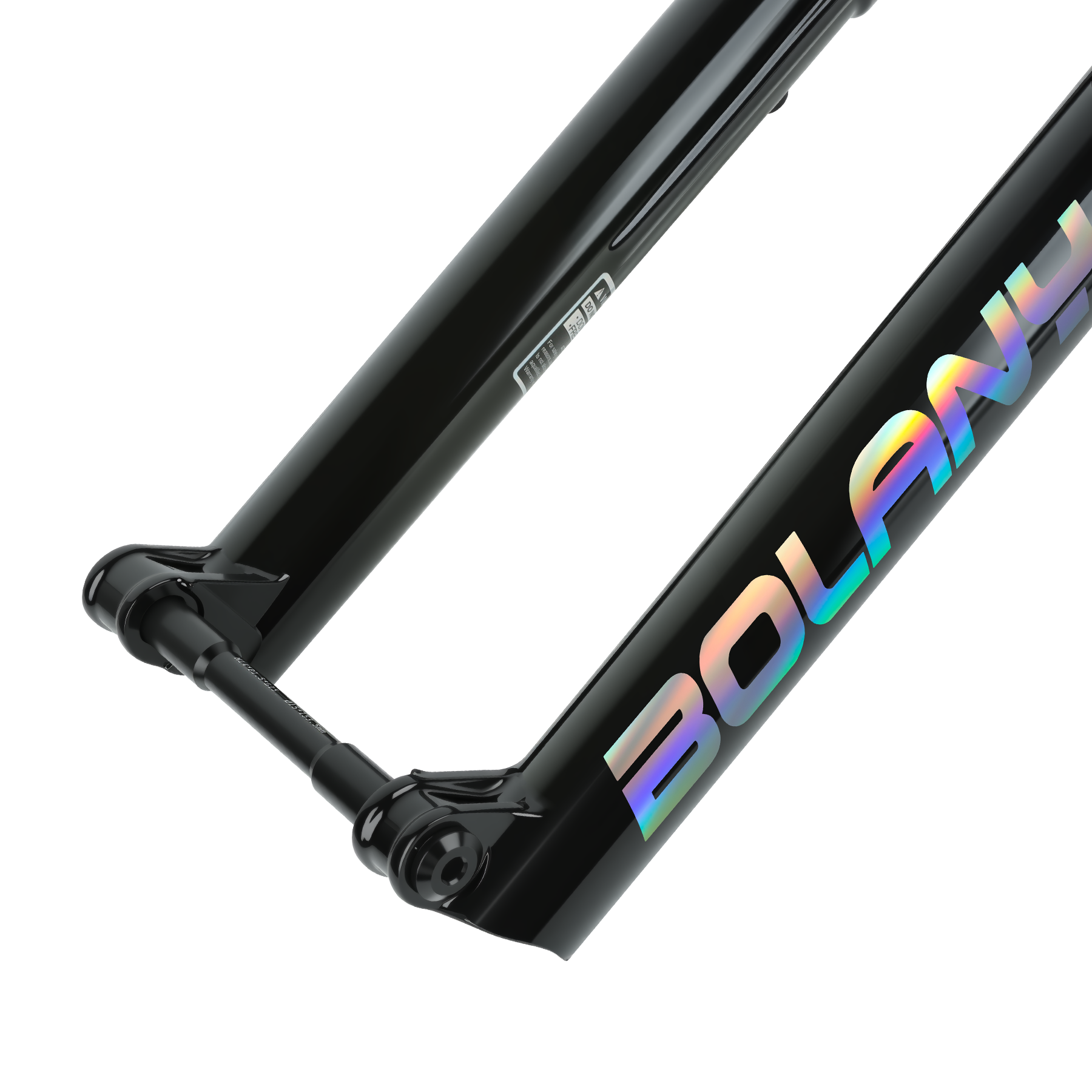

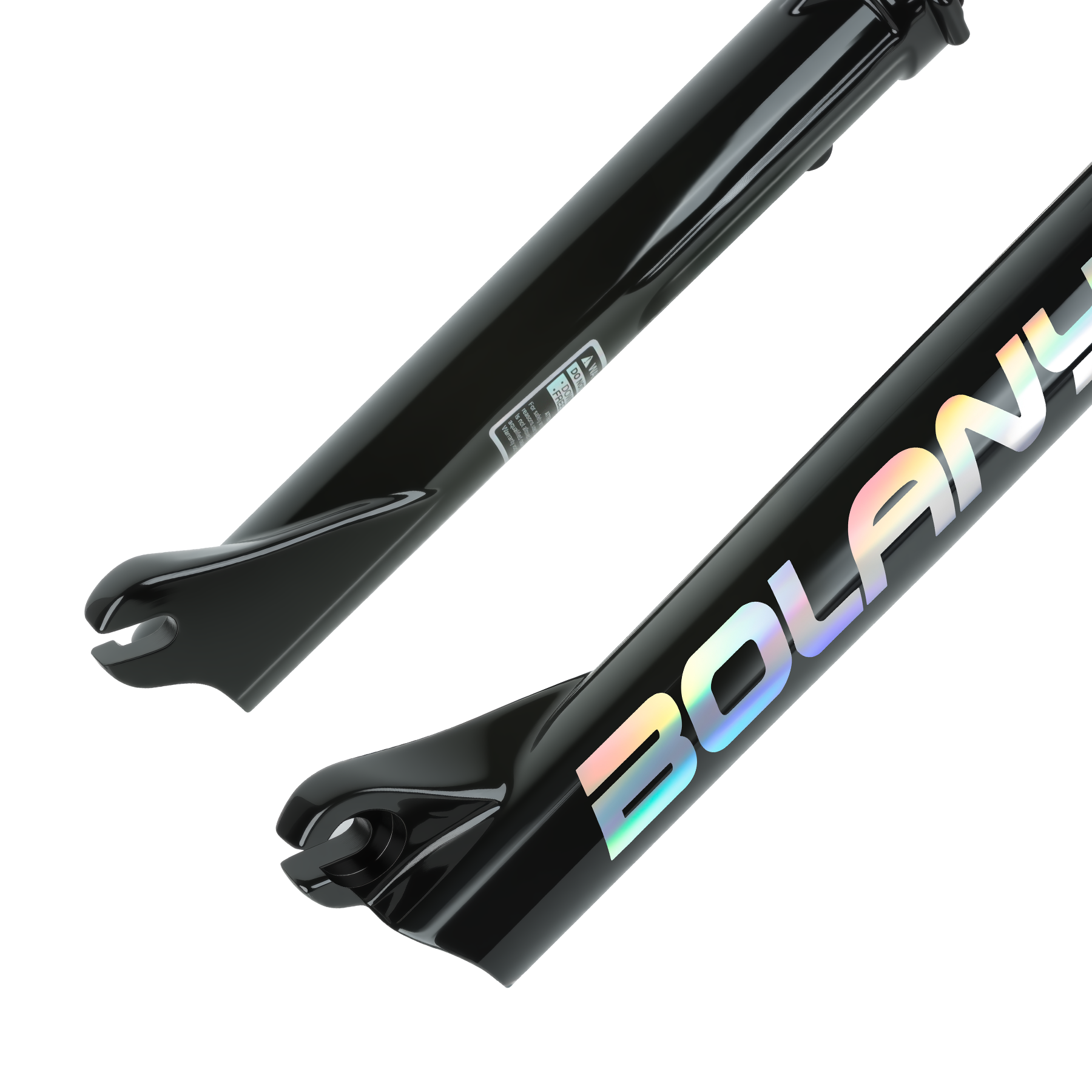

9x100mm Quick Release / 15x100mm Thru Axle / 15x110mm BOOST Thru Axle
Max Air Pressure
~120 PSI
Brake Rotor Compatibility
Standard 160mm; 180mm or 203mm requires adapter
