STG590
DESCRIPTION

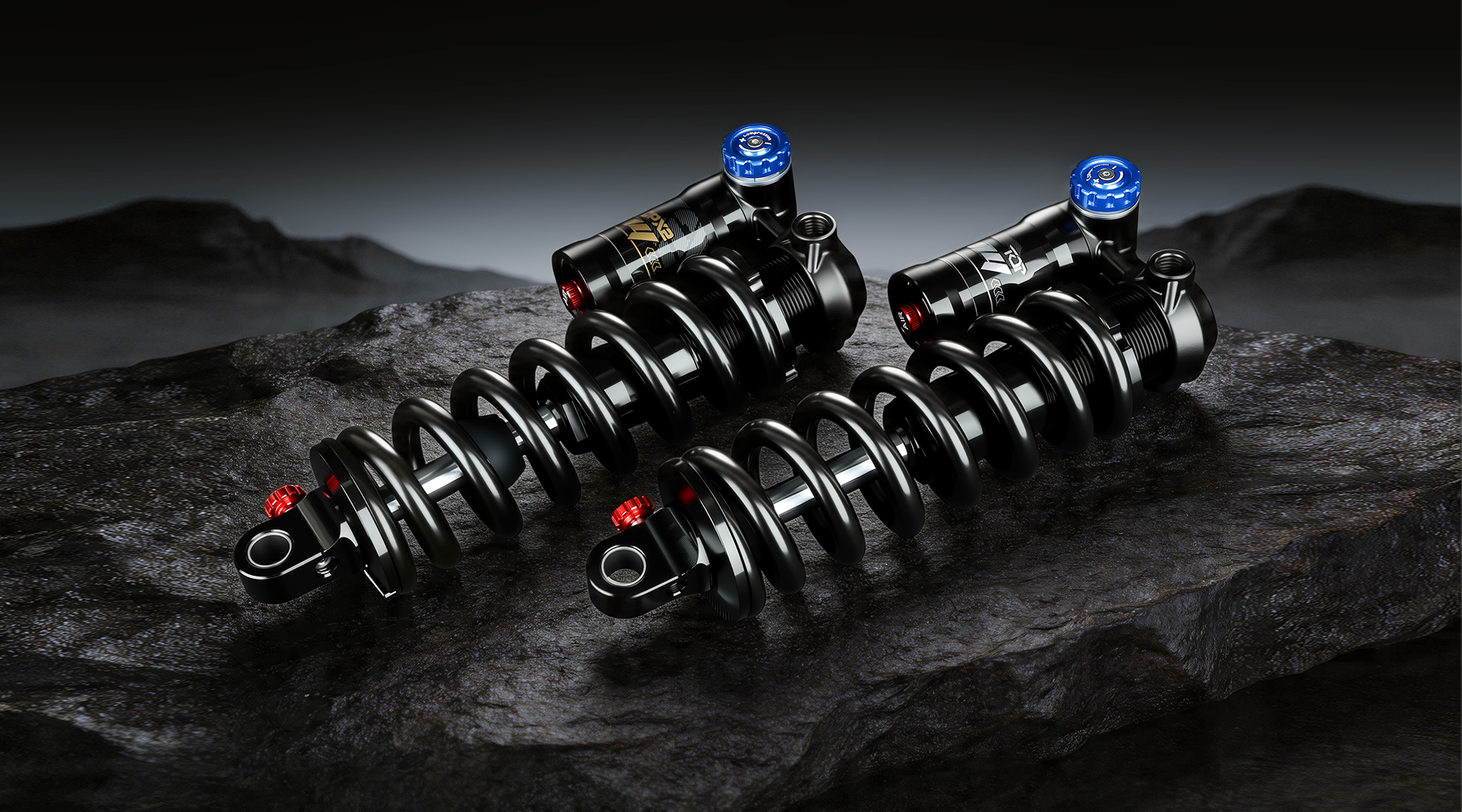

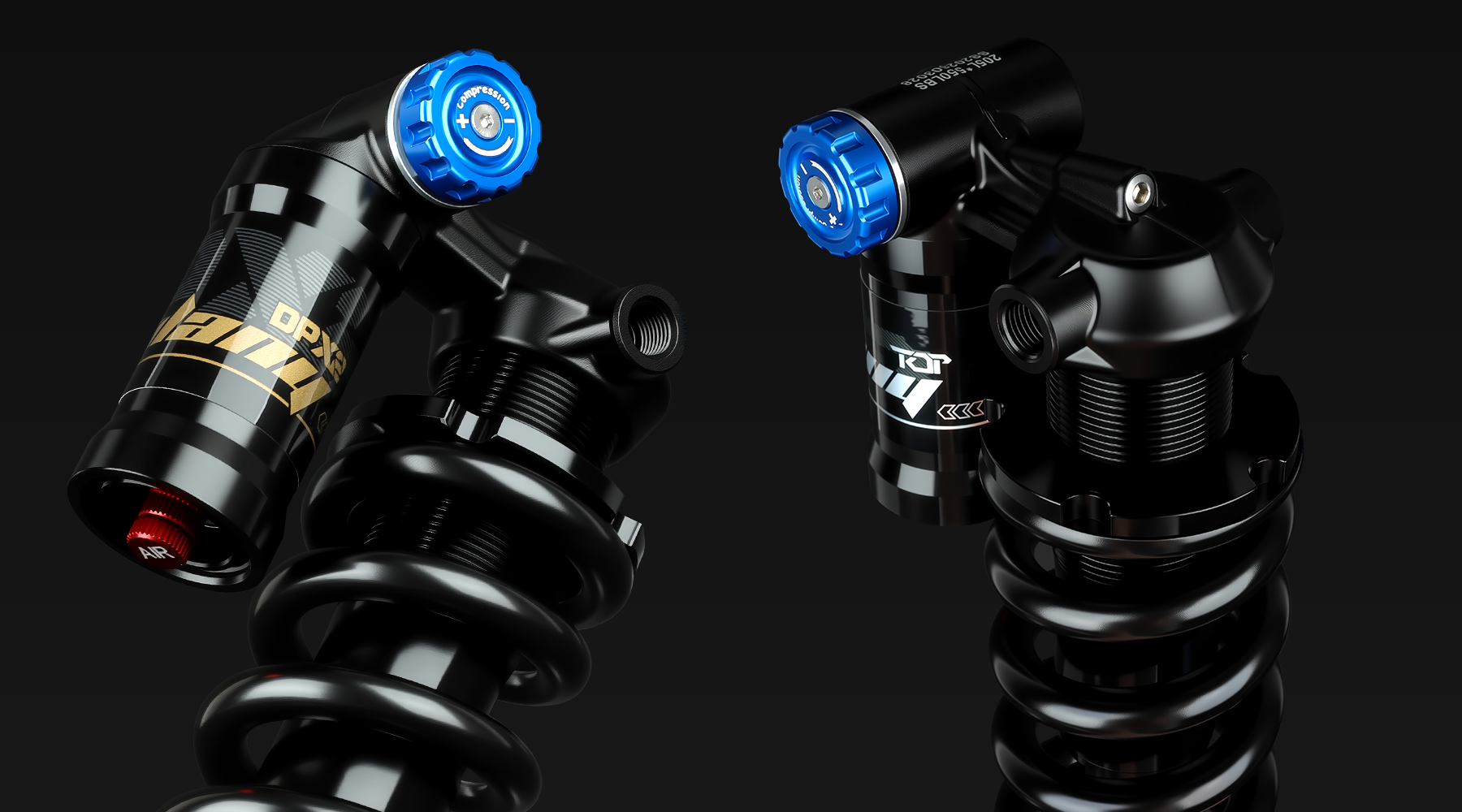

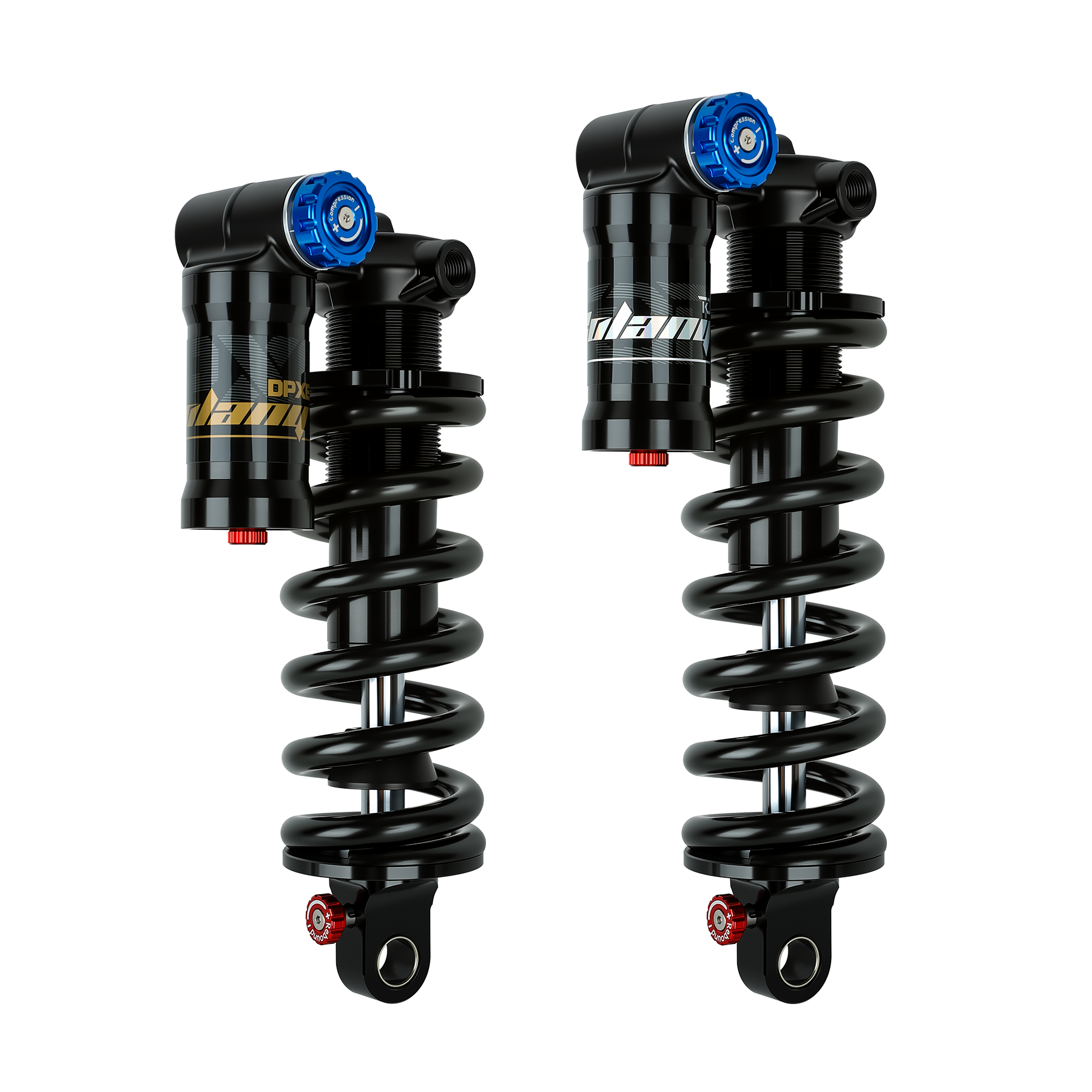

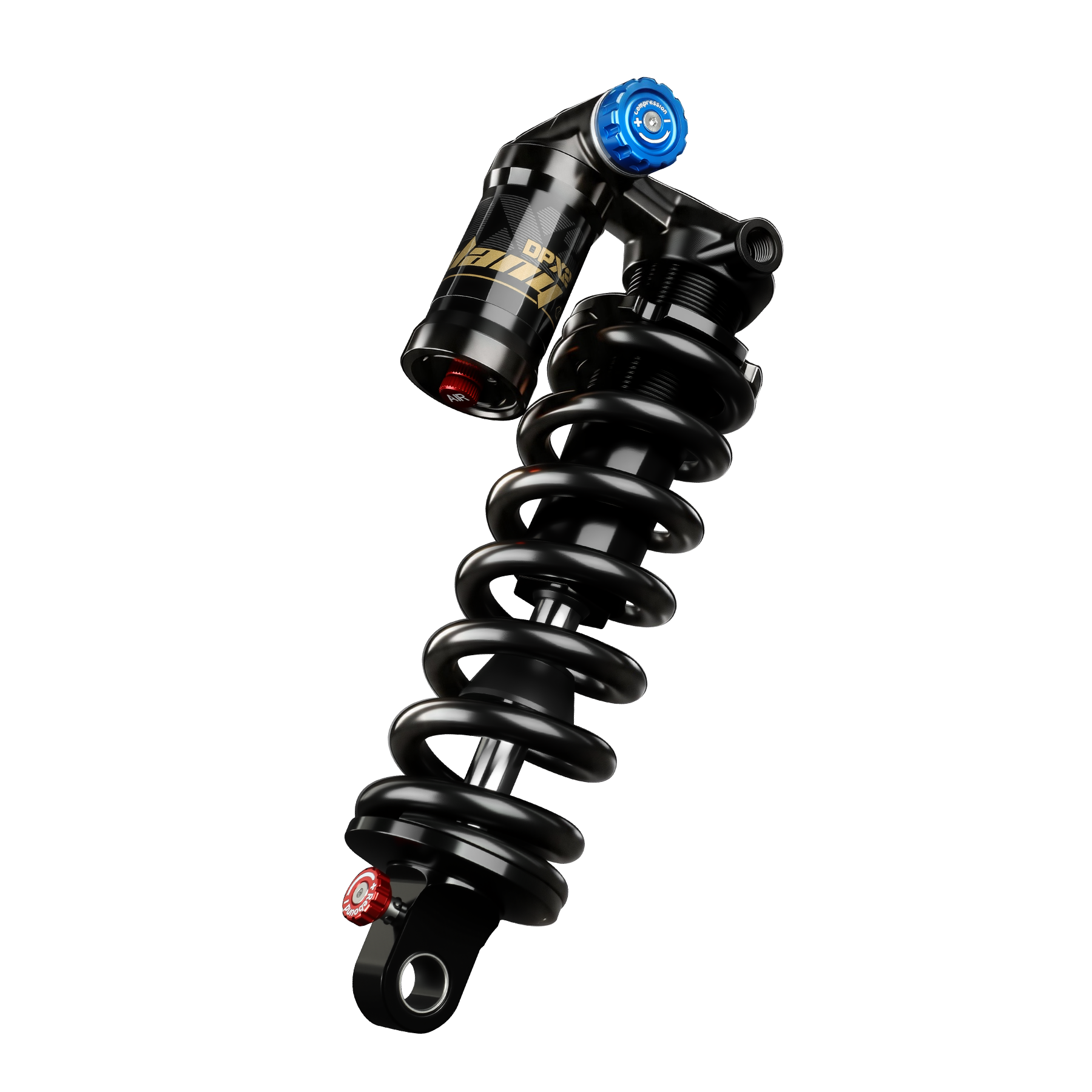

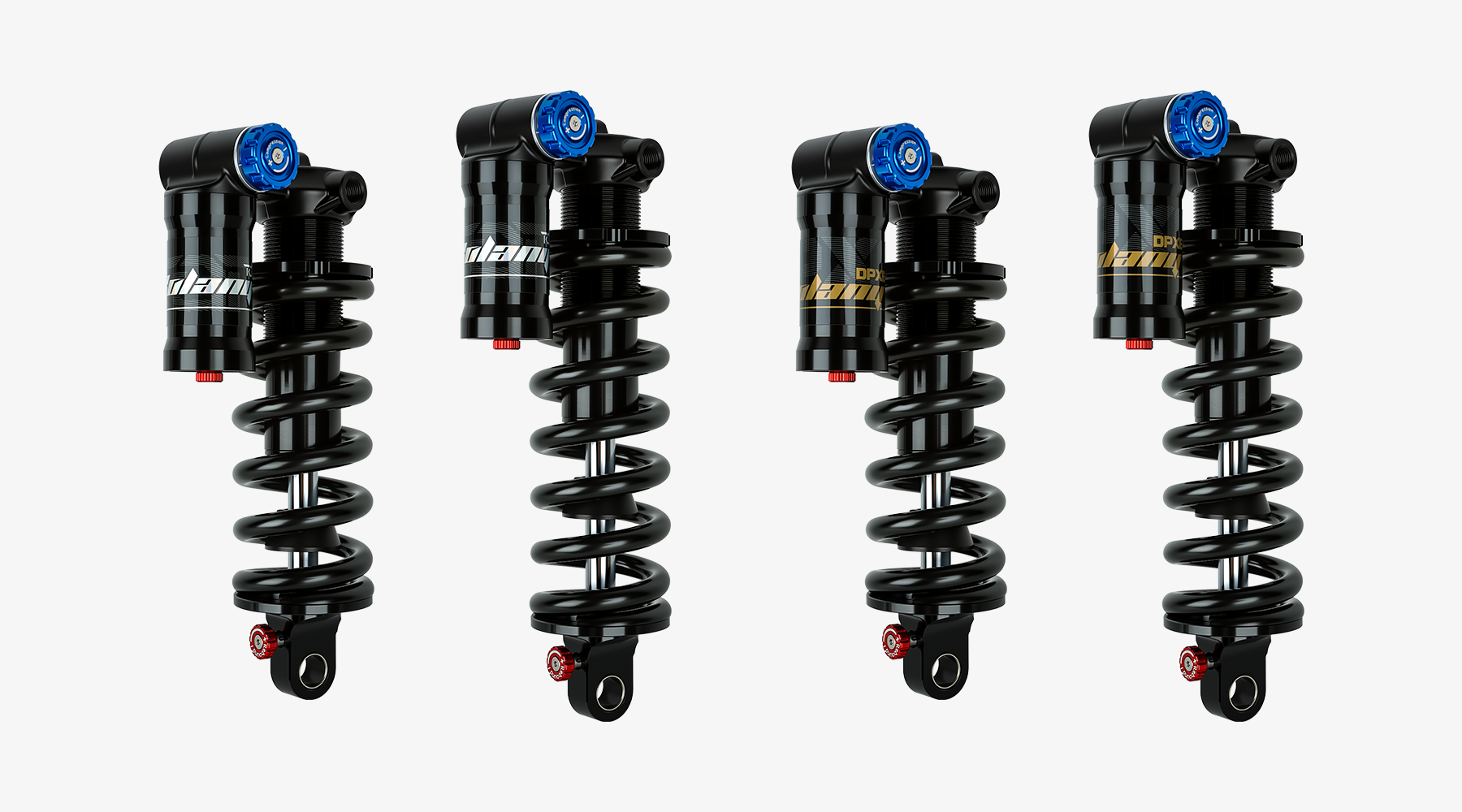

BOLANY Trunnion Rear Shock (Coil & Air Hybrid)
Engineered for DH (Downhill) and E-MTB, the BOLANY Trunnion Rear Shock utilizes a premium coil + air hybrid structure, delivering fade-free, ultra-stable damping performance during high-intensity aggressive trail riding.
FEATURES

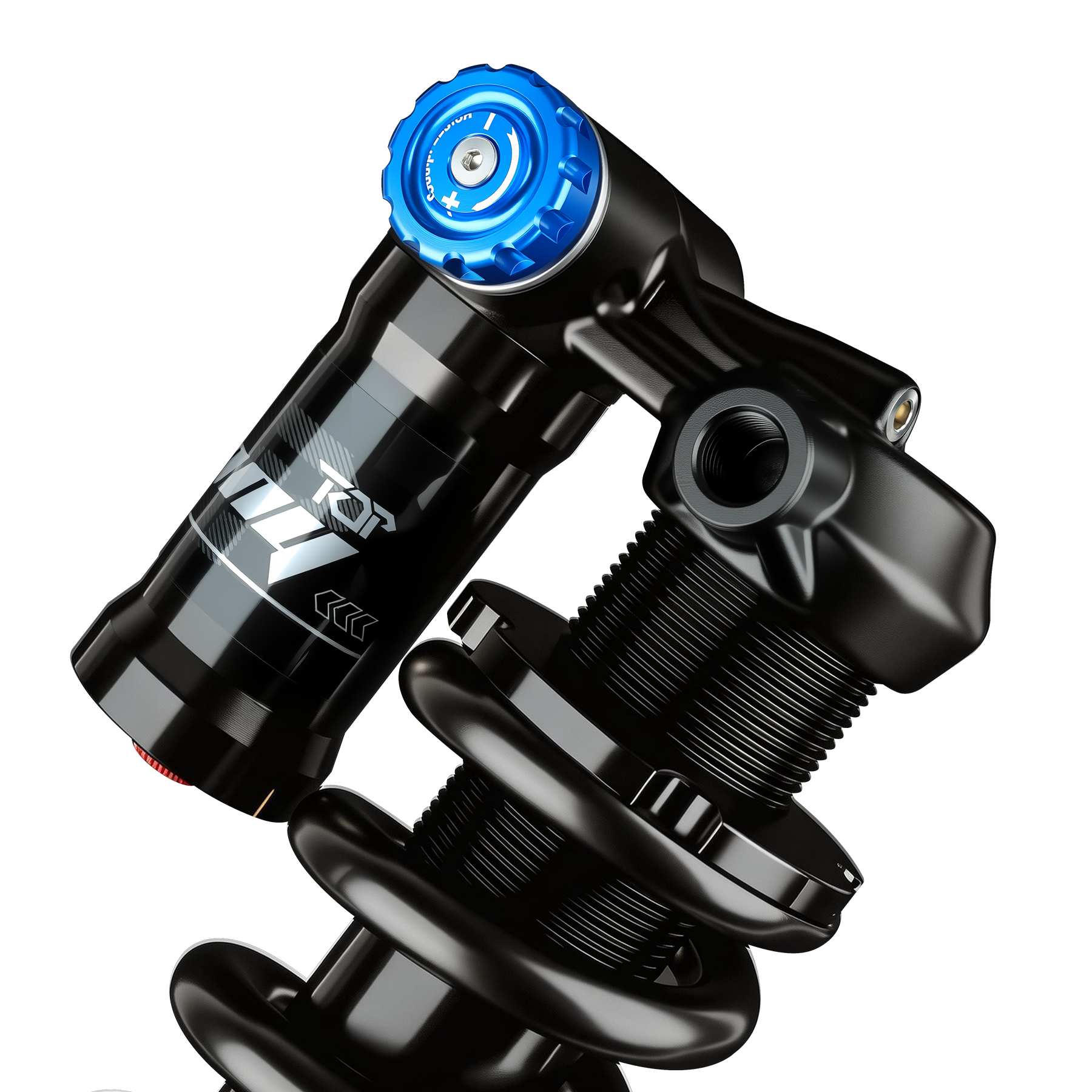

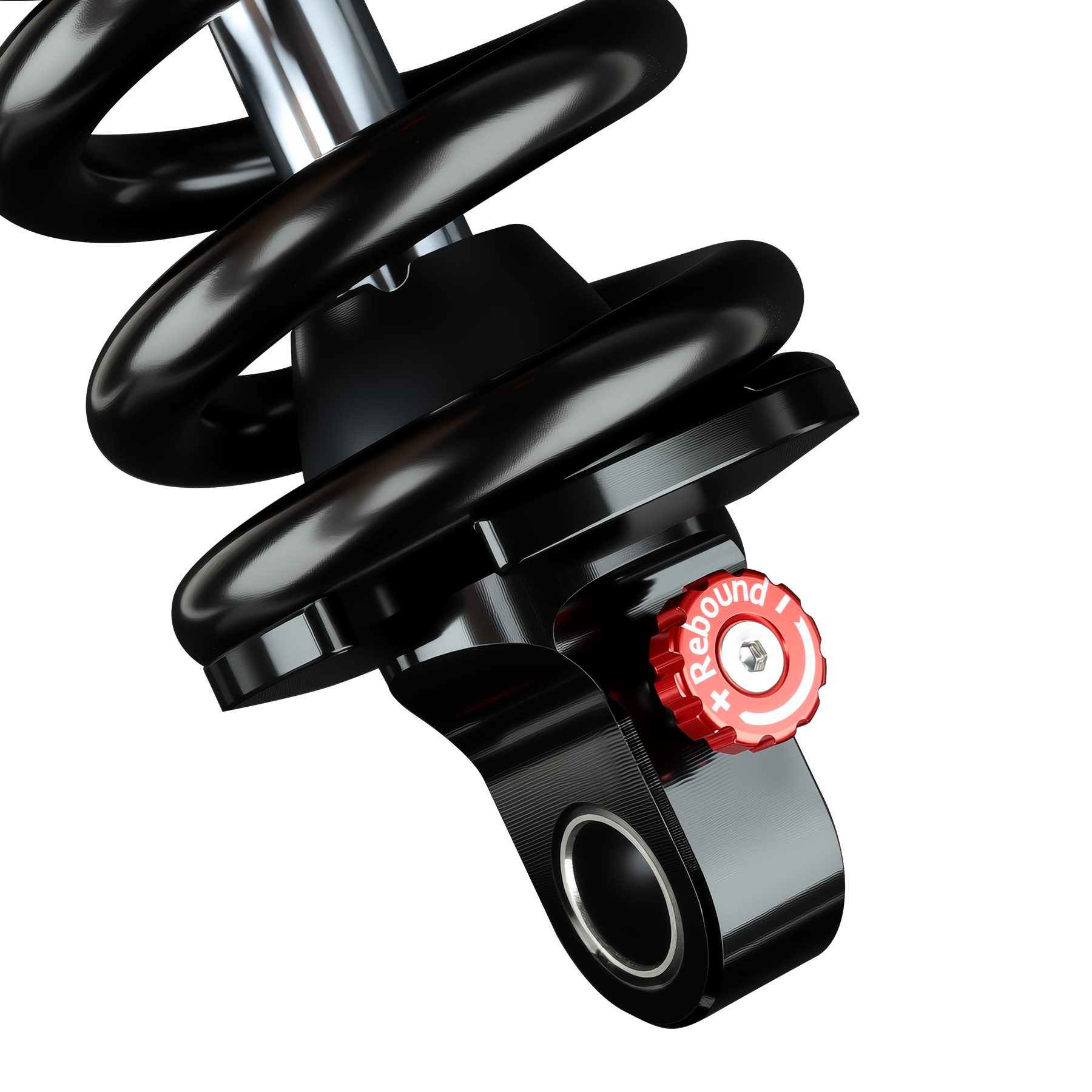

Fully Adjustable Damping System: Supports precision tuning for Rebound, Compression, Preload, and High-Pressure Air (up to 300 PSI). Paired with a 550 lbs spring rate to perfectly match any riding style or terrain.
Heavy-Duty 6066 Alloy Frame: Features a seamless aluminum body and forged linkages for superior impact resistance. Maintains structural integrity under high-speed descents and big drops while eliminating fading.
Integrated Bottom-Out Bumper: An end-of-stroke bumper absorbs extreme impacts, drastically reducing the risk of harsh bottom-outs for a smoother ride and enhanced component lifespan.

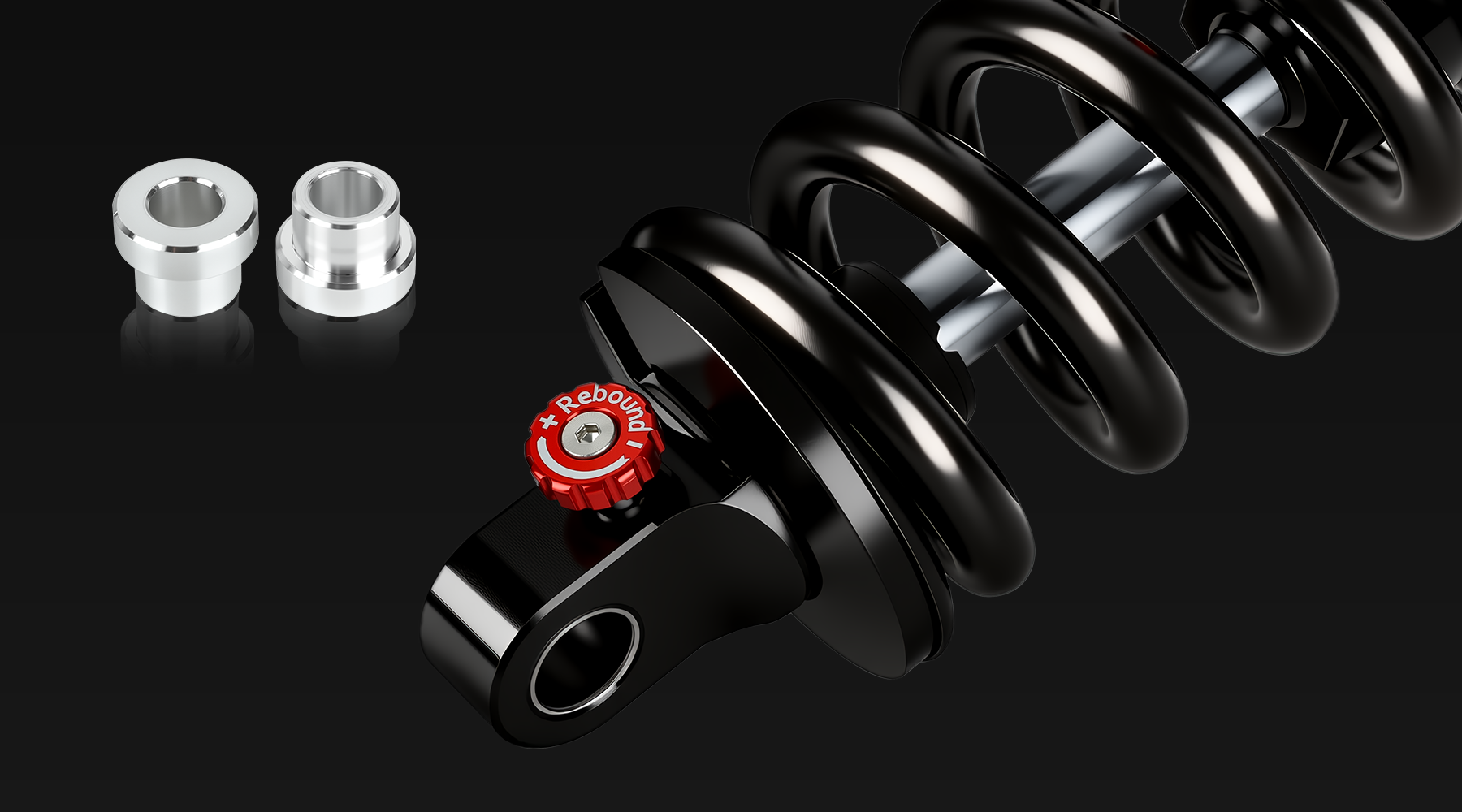

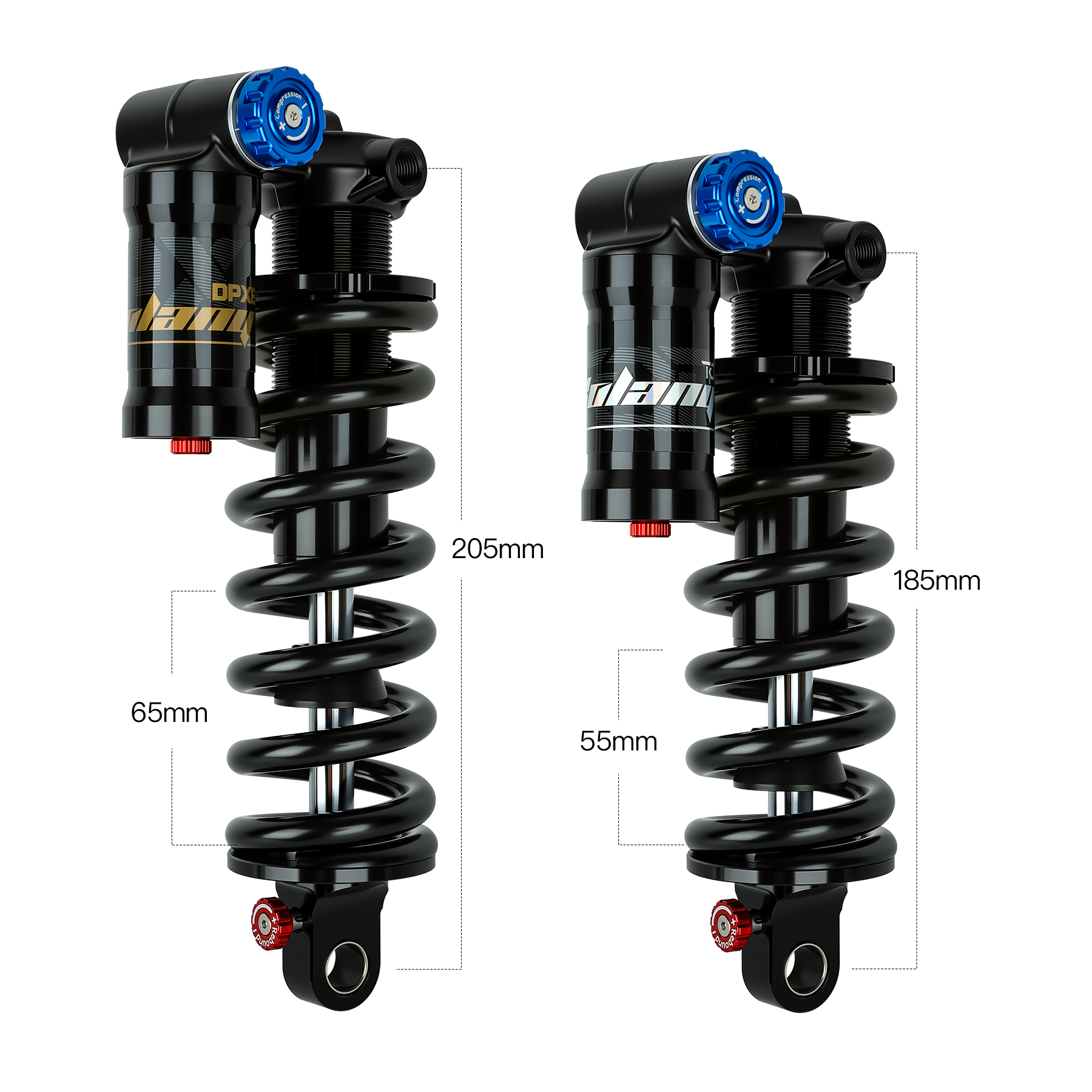

Dual Sizes & Trunnion Specs: Available in 185×55mm and 205×65mm to fit mainstream DH and E-MTB frames. Features an M8 bolt / 12mm eyelet diameter with an 8×24mm bushing included for easy installation.
Pro-Grade Control: Delivers precise, predictable damping feedback and bulletproof reliability for professional DH racing and heavy-duty trail riding.
Specifications
Brand & Type
BOLANY Coil-Air Trunnion Rear Shock
Size
185×55mm / 205×65mm
Adjustment
Rebound / Compression / Preload / High-Pressure Air Adjustment
Installation Specifications
Bolt size: M8; Hole diameter: 12 mm
Spring

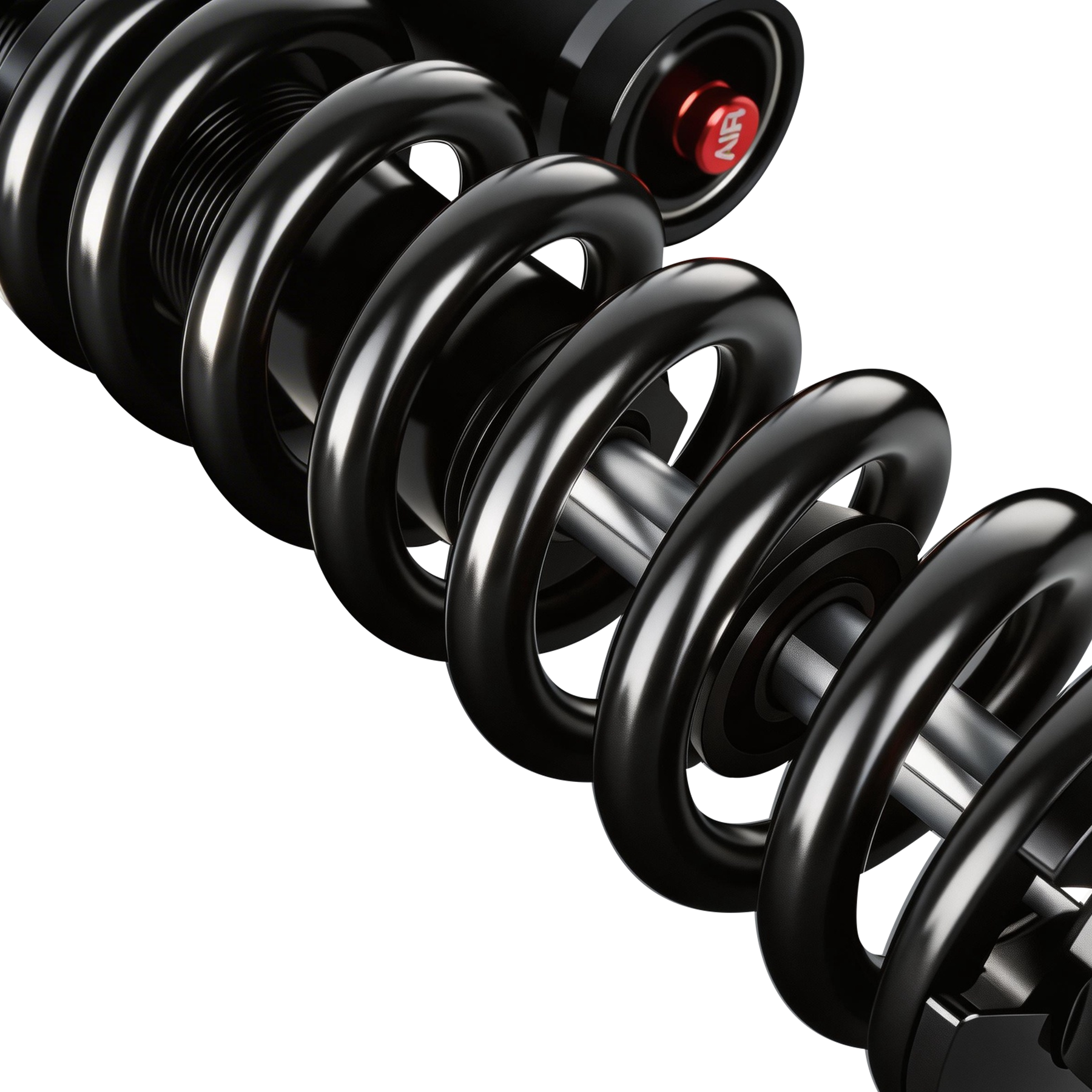

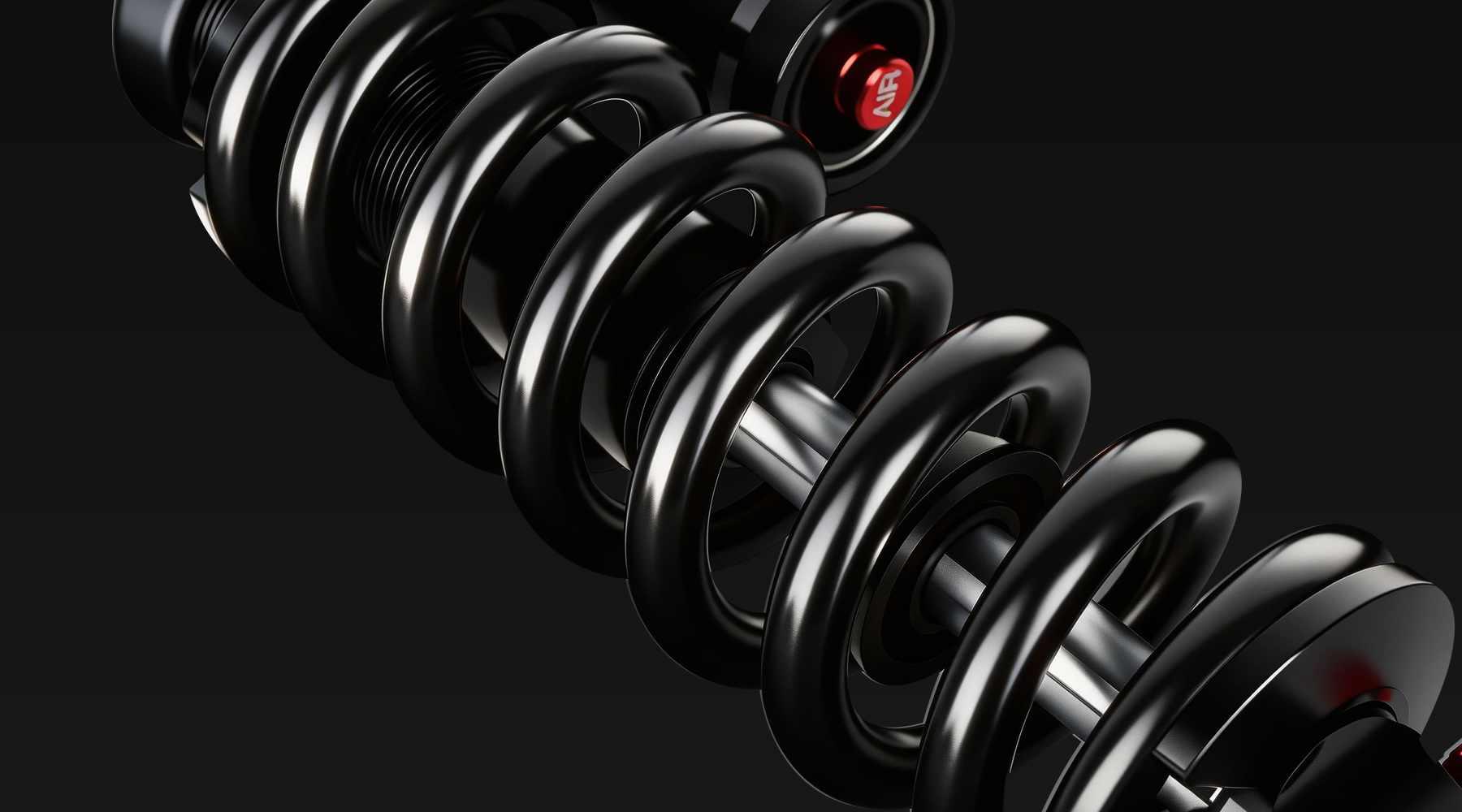

9mm wire diameter, 550lbs spring rate
Air Pressure
Max. 300PSI
Material
6066 Seamless Aluminum Alloy + Forged Linkage
Application
DH downhill bikes, e-MTBs, electric downhill bikes
Packing List
Rear shock x 1, 8×24 mm bushing x 1
