HU560
DESCRIPTION
SAGMIT M120 MTB Disc Brake Hub Set
Engineered for cross-country performance, the SAGMIT M120 blends a lightweight build, high rigidity, and instant power transfer. Crafted from cold-forged A6061 aluminum with CNC precision finish, its rugged body resists trail impacts. Weighing just ~165g (front) and ~330g (rear), it lightens your wheelset to elevate climbing agility and acceleration.
FEATURES

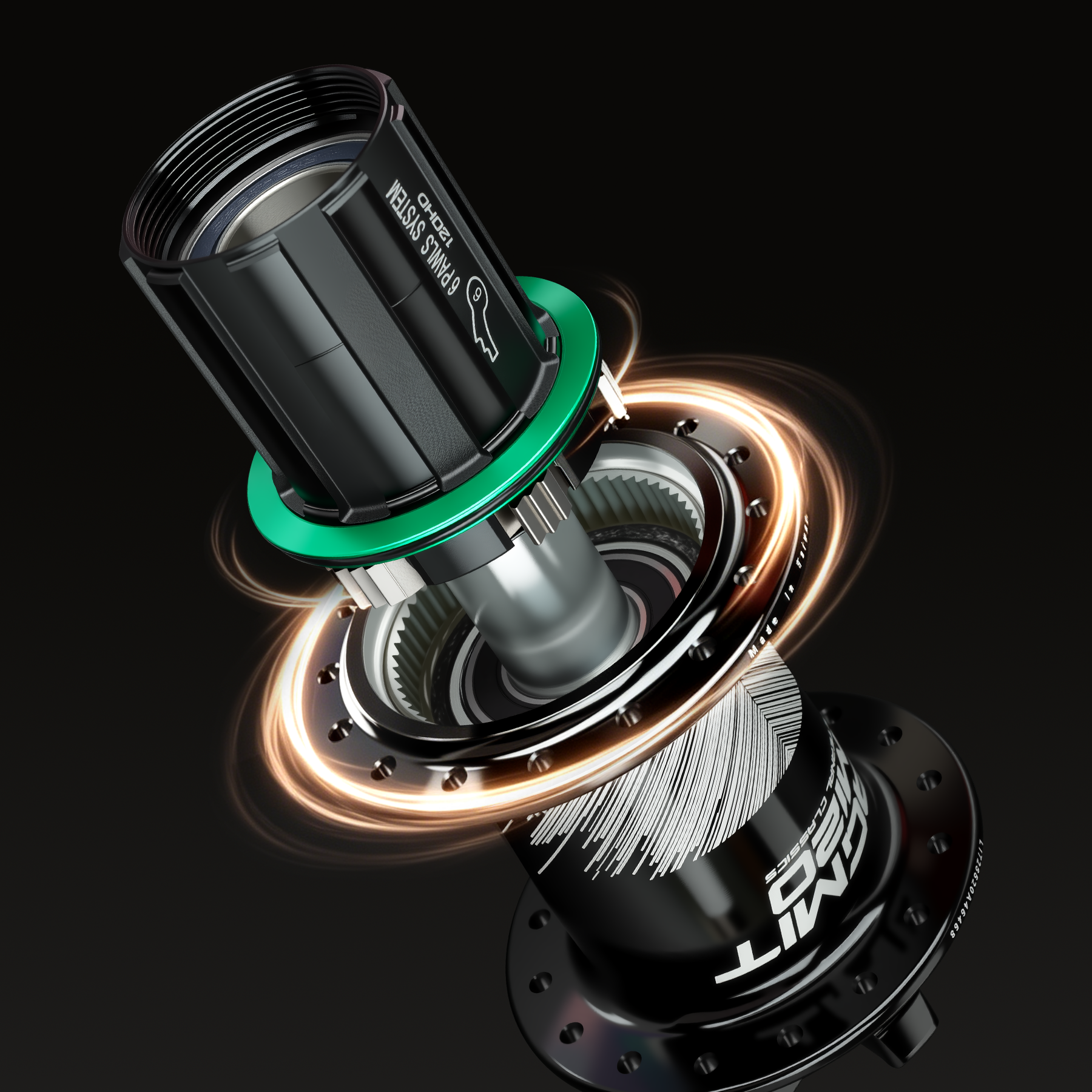

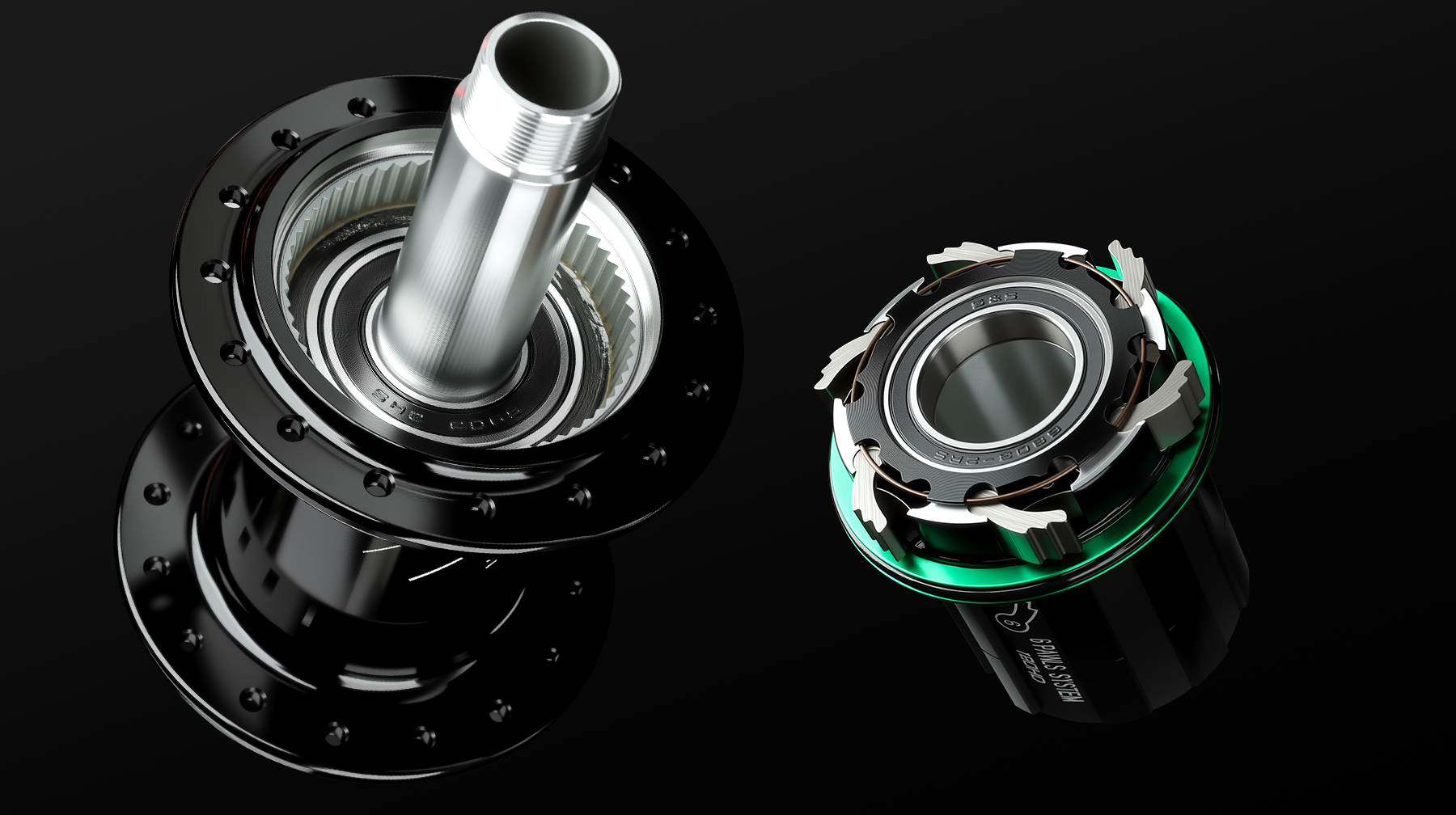

Instant 120-Click Engagement: Features a 6-pawl, 3-teeth drive system with high-strength CRMNTI steel pawls for minimal power loss and solid, slip-free pedal feedback.

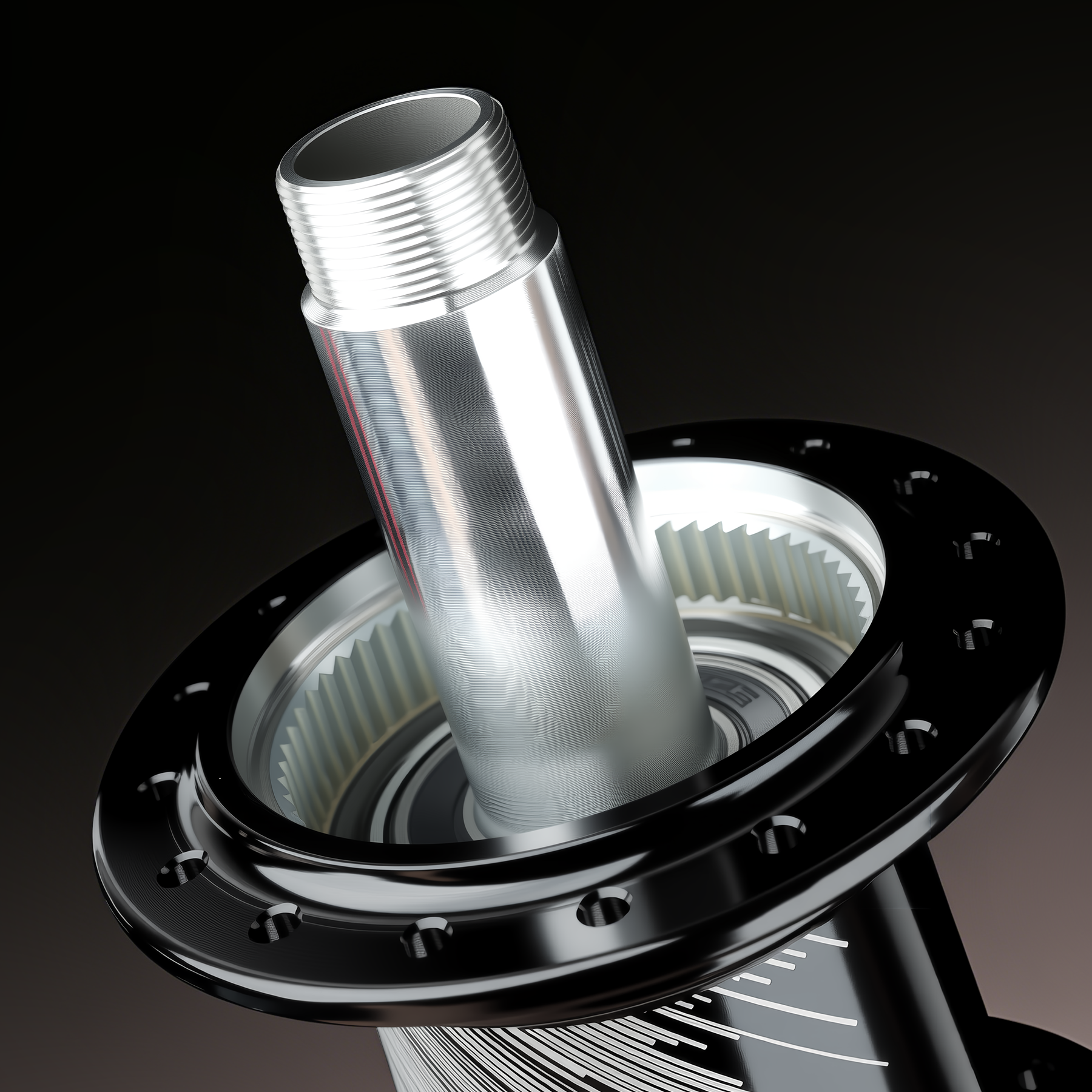

Anti-Loosening Threaded End Caps: Freehub utilizes a threaded locking system to prevent loosening and eliminate annoying creaks/abnormal noises.

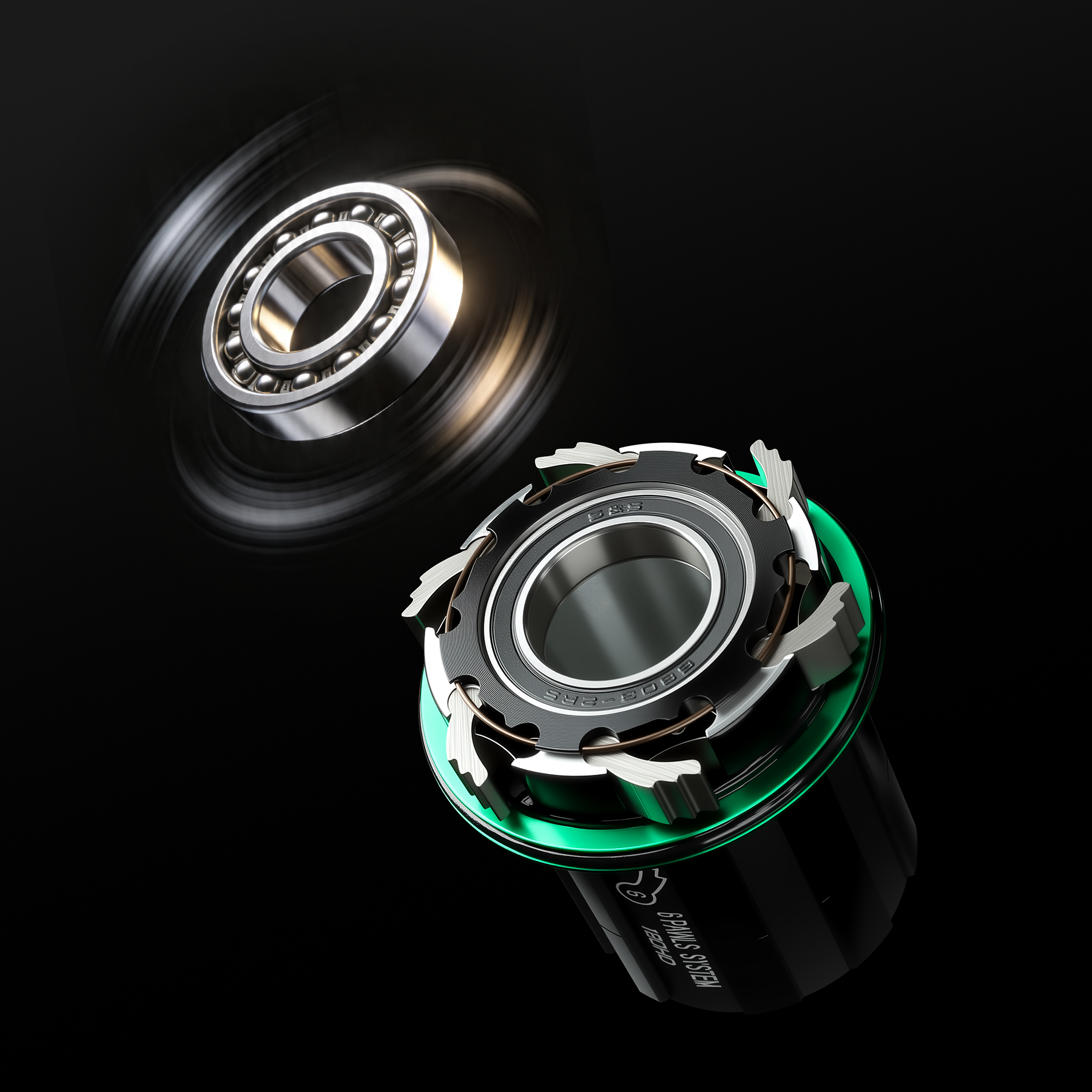

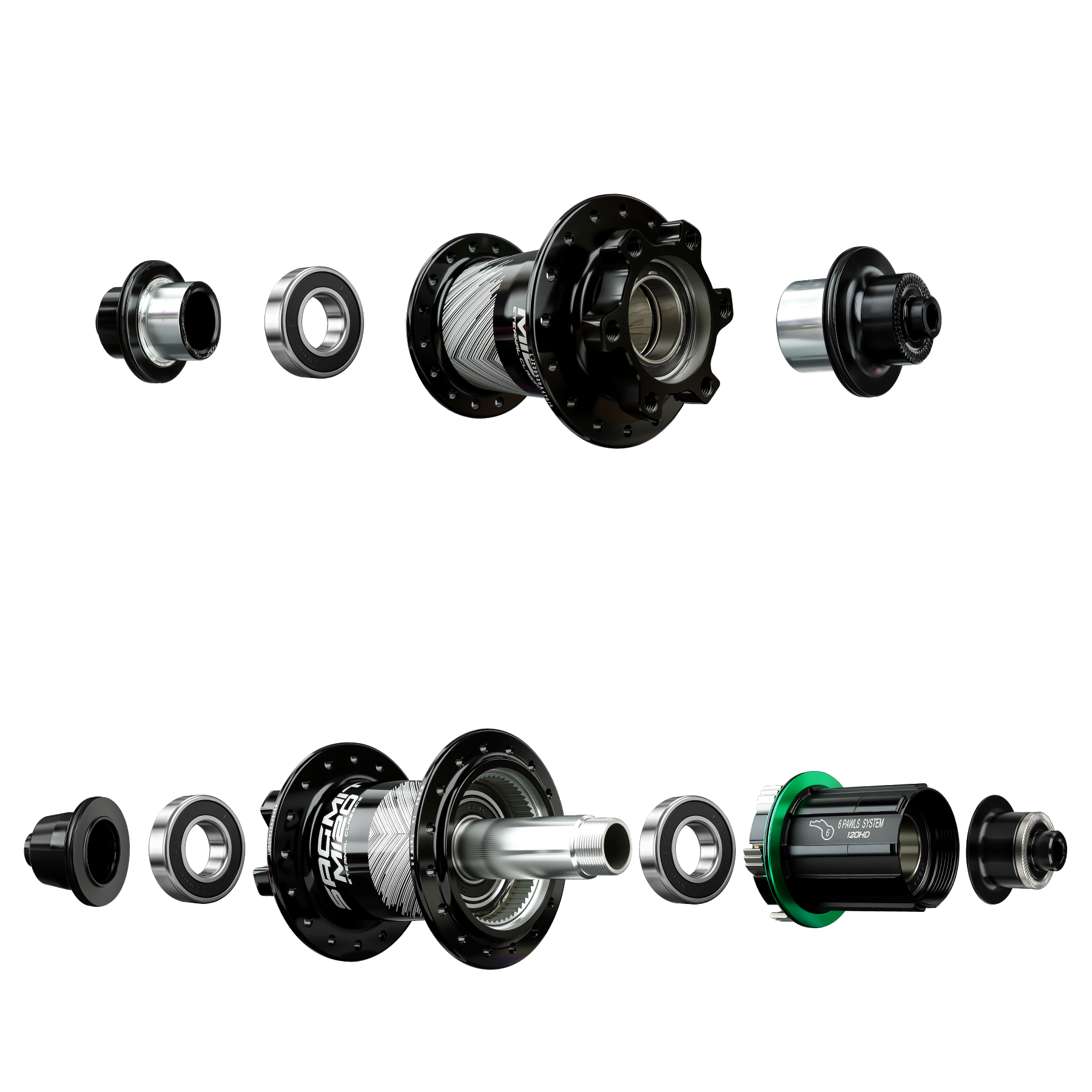

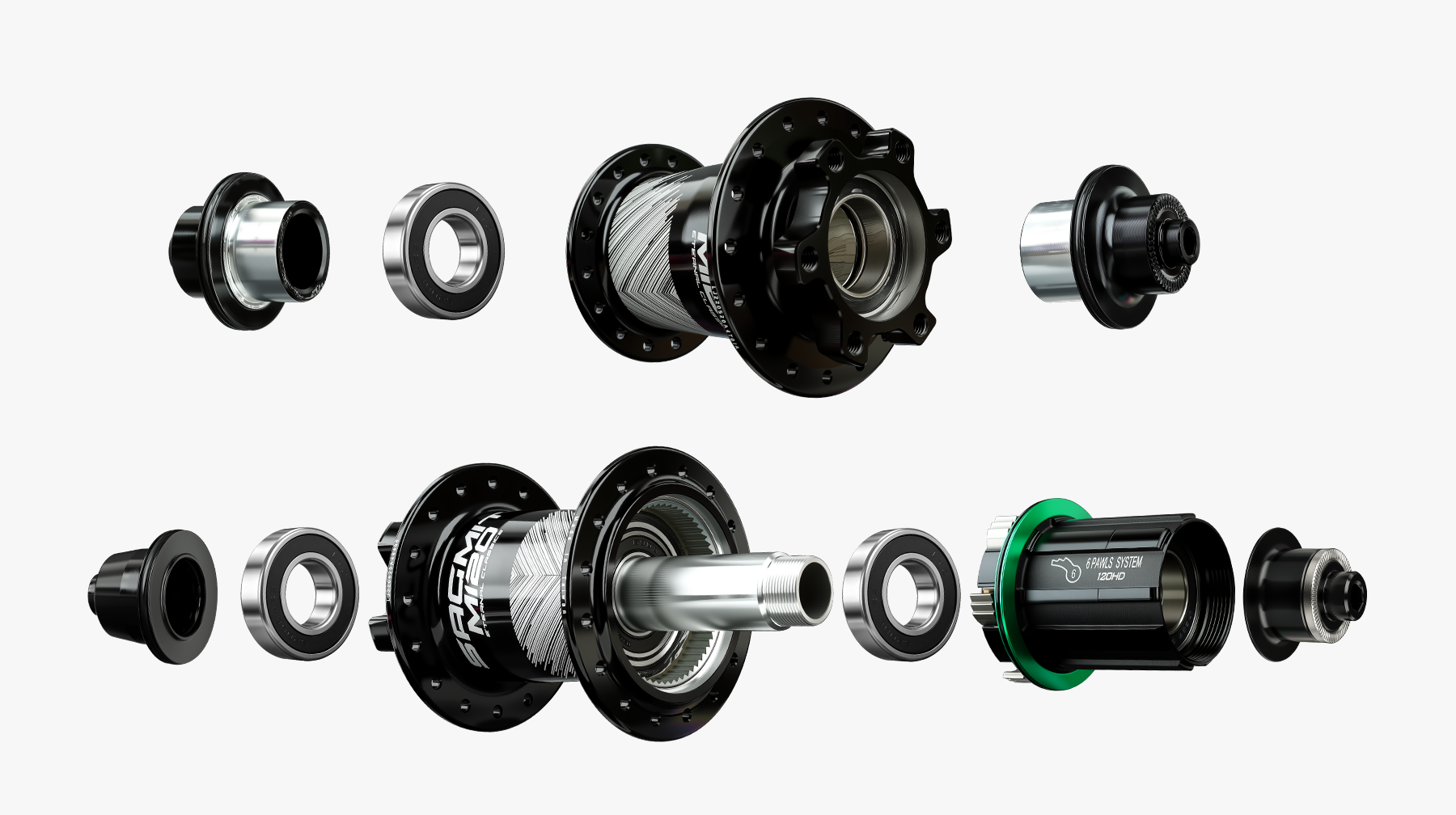

Japanese Precision Bearings: 2-front and 4-rear sealed bearing setup provides ultra-low rolling resistance and superior dust/water protection to extend bearing life.
Dual QR / Thru-Axle Compatibility: Includes quick-release skewers and interchangeable end caps for seamless conversion to Thru-Axle setups.
Universal 32H Setup: Standard 32-hole configuration fits 14G J-bend spokes, 6-bolt disc rotors, and Shimano HG freehub systems for easy maintenance.
Specifications
Parameter
Specification Details
Brand & Model
SAGMIT M120 MTB Disc Brake Hub Set
Drive System
6 pawls, 3 teeth per pawl, 120 clicks; instant engagement, smooth transfer; optimized for XC trails
Material & Craft
A6061 Aluminum Hub Body, CRMNTI Steel Pawls; Cold Forged + CNC Precision Machining
Bearing Layout
Front 2 + Rear 4 Japanese precision sealed bearings; smooth and durable
Hub Specs

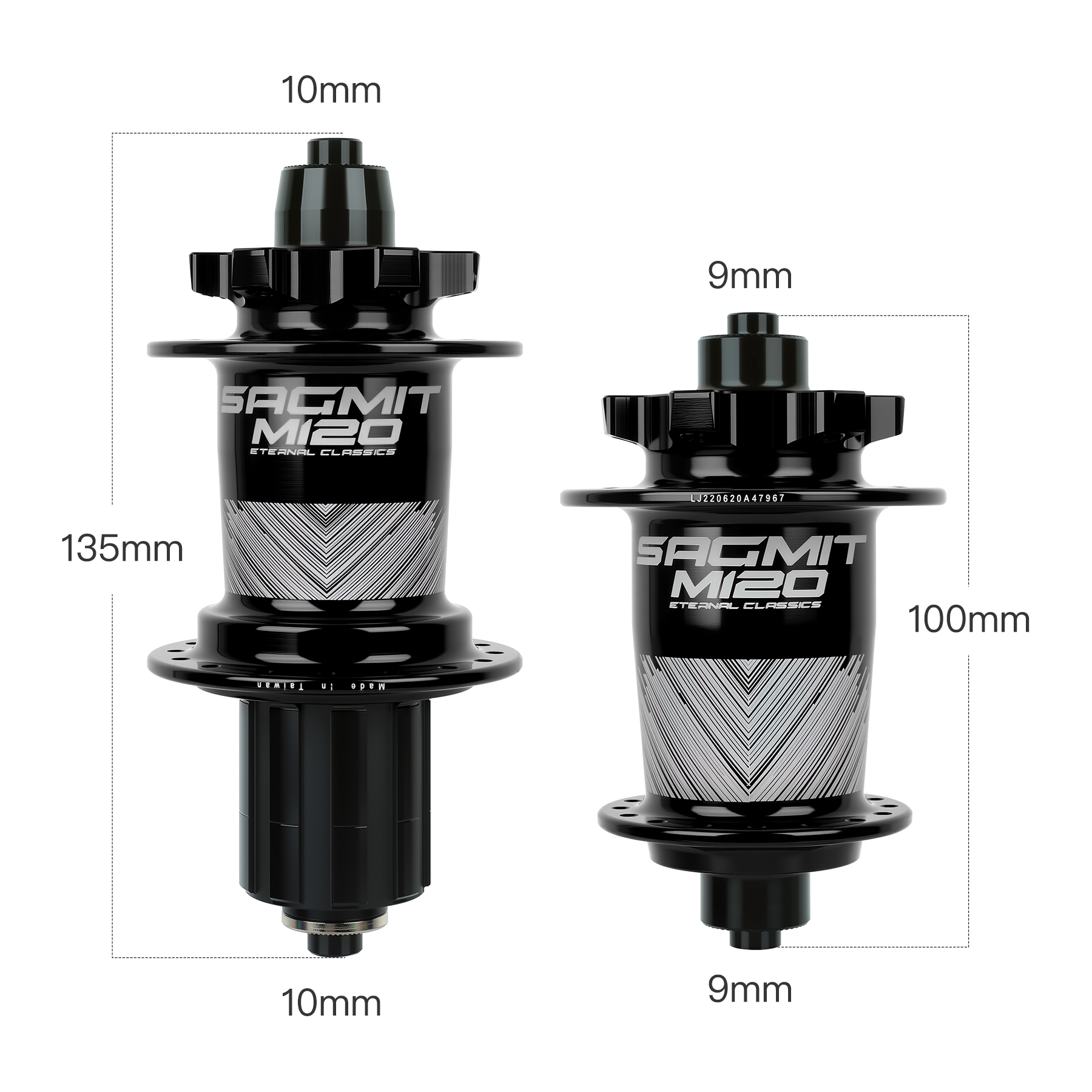

32 Holes; Front 9×100mm / Rear 10×135mm Quick Release (QR); Convertible to 15×100mm / 12×142mm Thru-Axle
Compatibility
Shimano HG Freehub, 14G J-bend spokes, 6-bolt disc rotors
Weight
Front: ~165g, Rear: ~330g
Package Includes

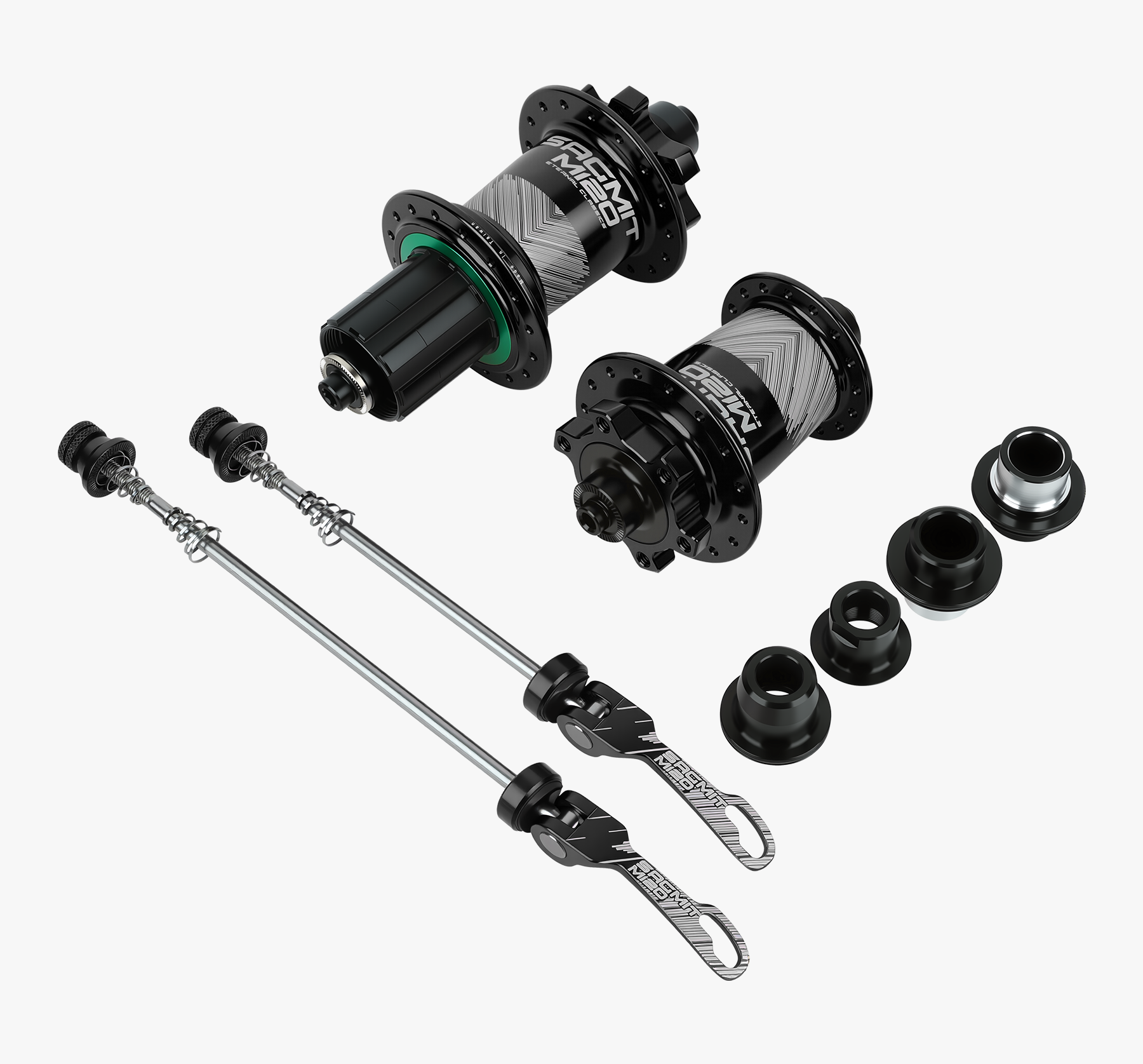

One pair of hubs + QR skewers + Thru-Axle conversion end caps
Color Options

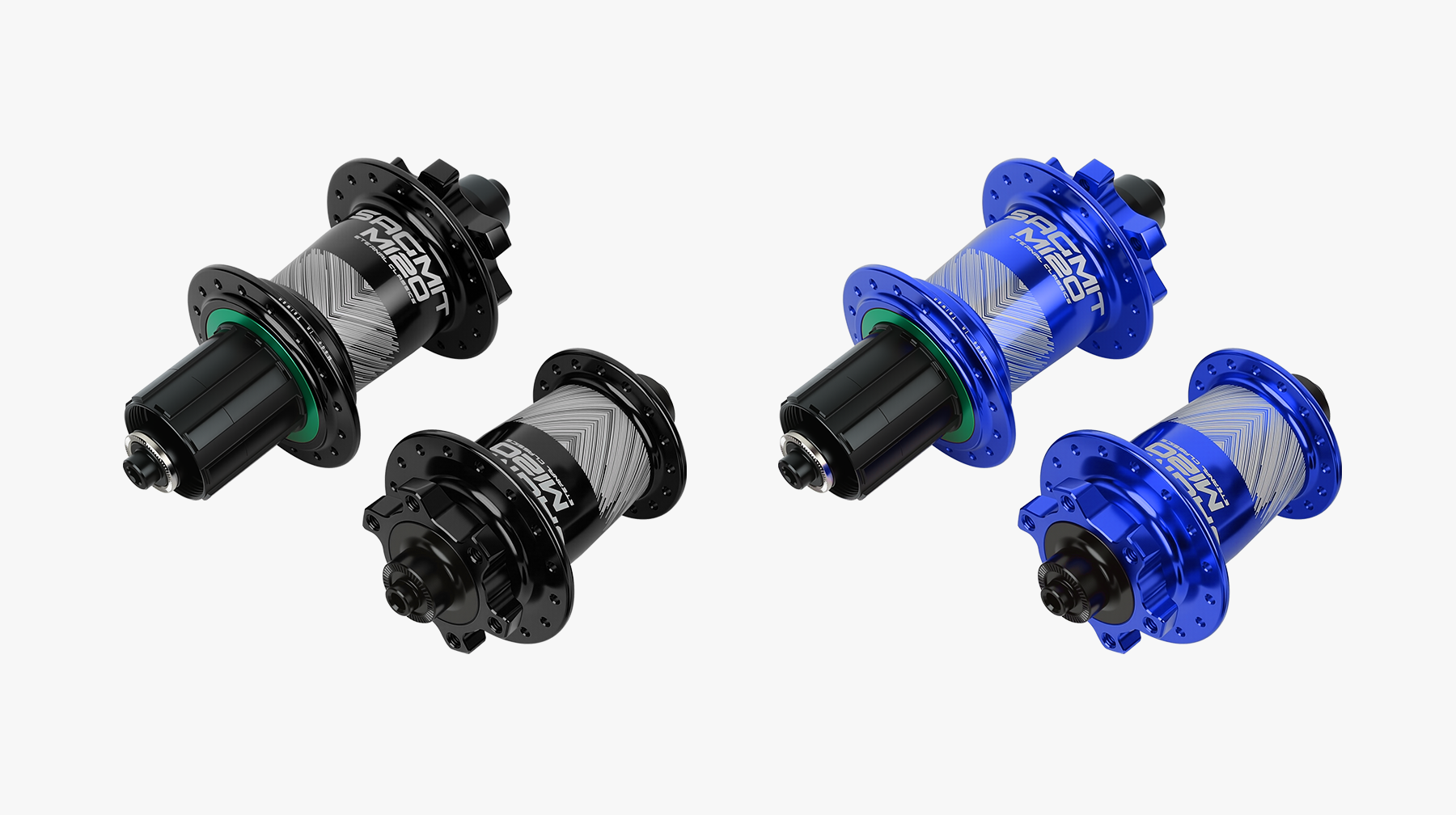

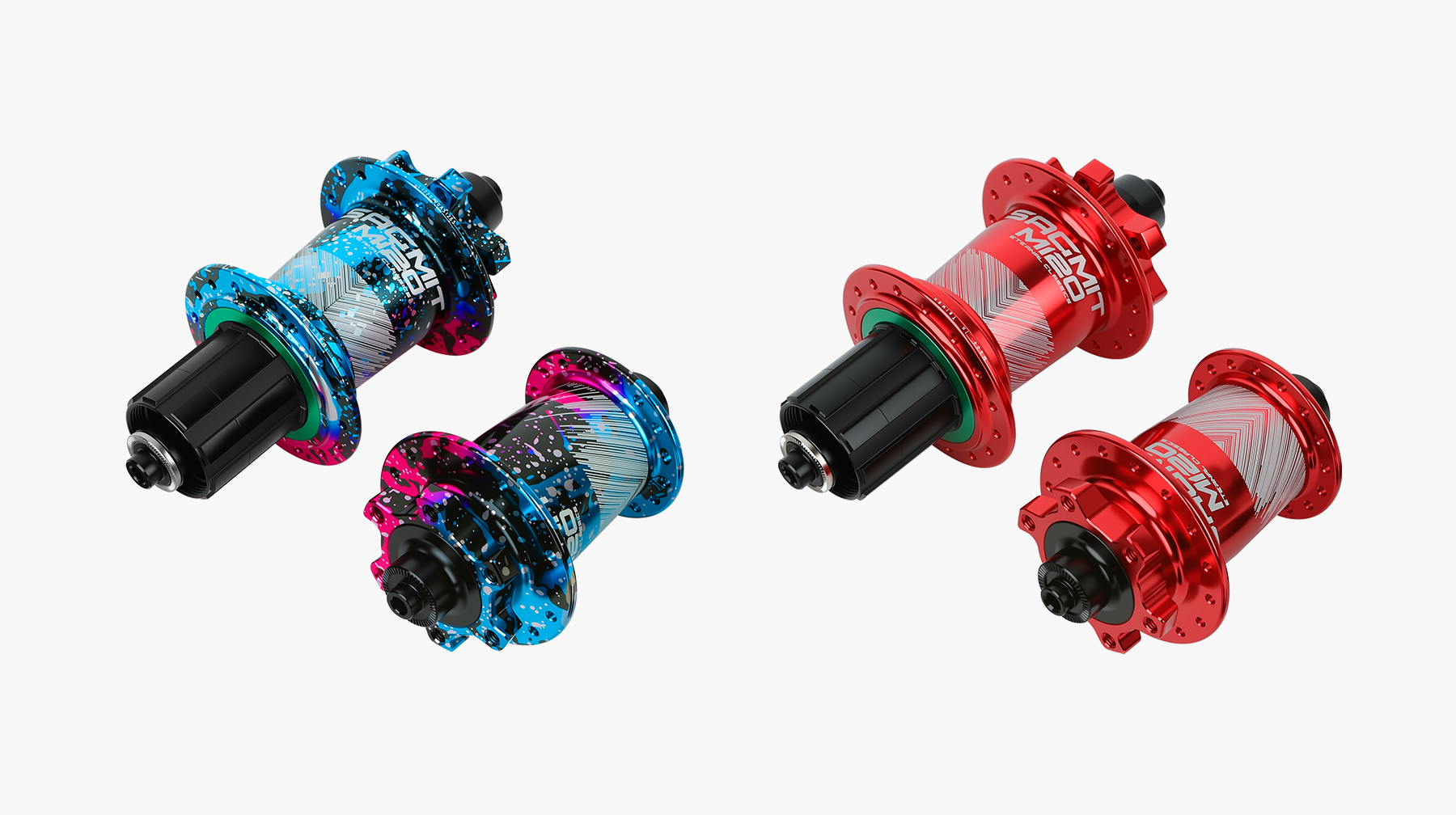

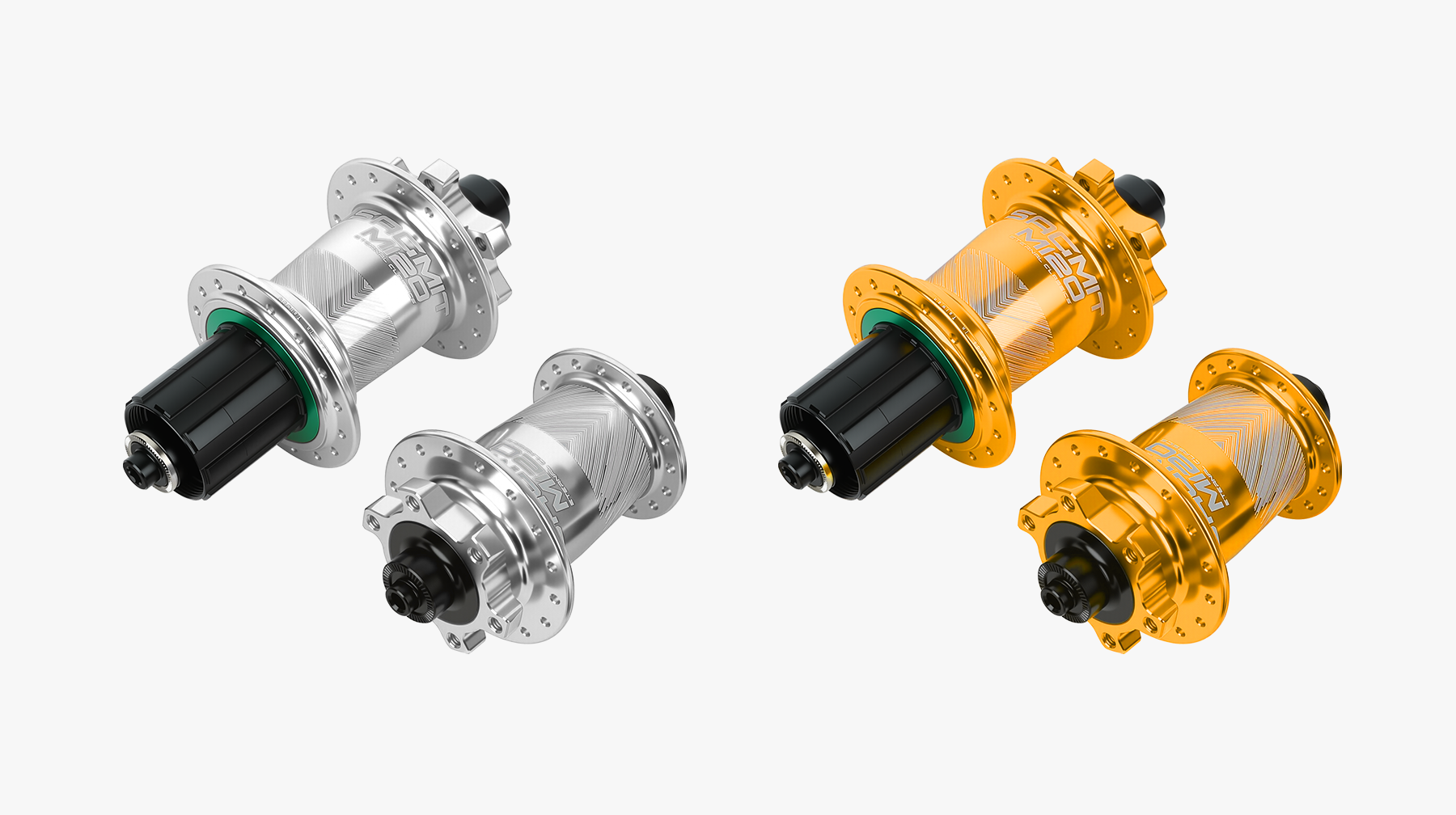

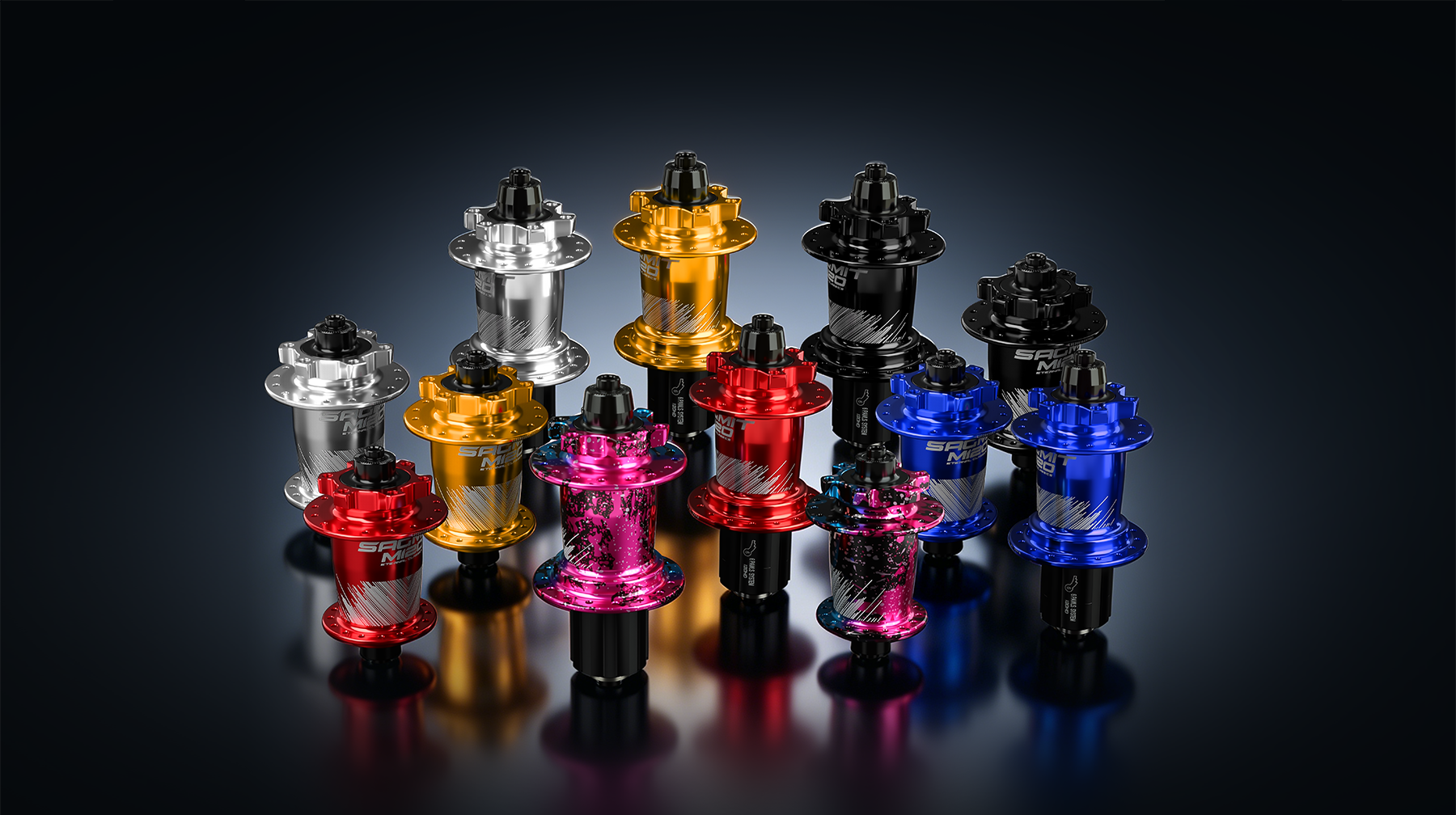

Oilslick (Rainbow), Black, Red, Silver, Gold, Blue
