HU550
DESCRIPTION

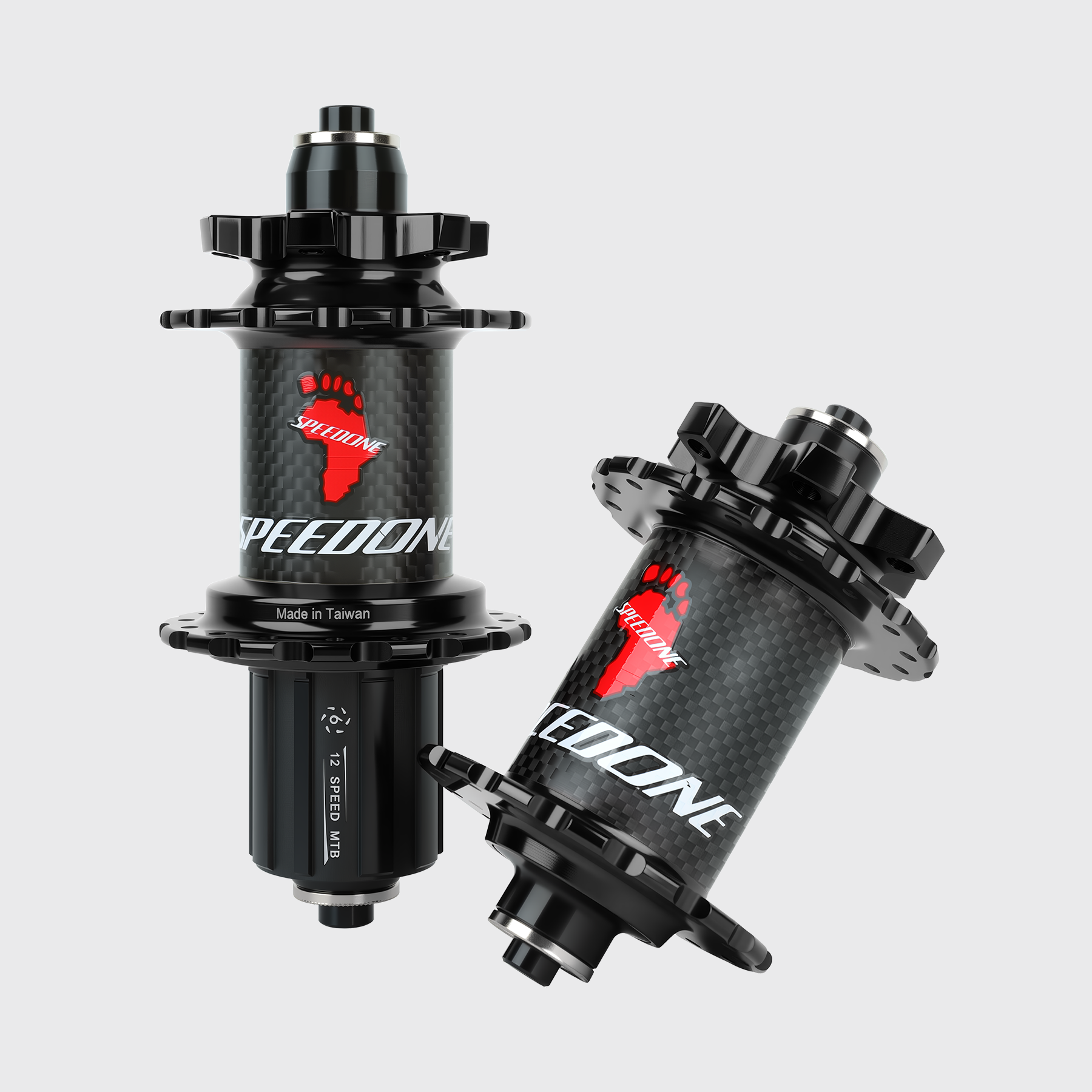

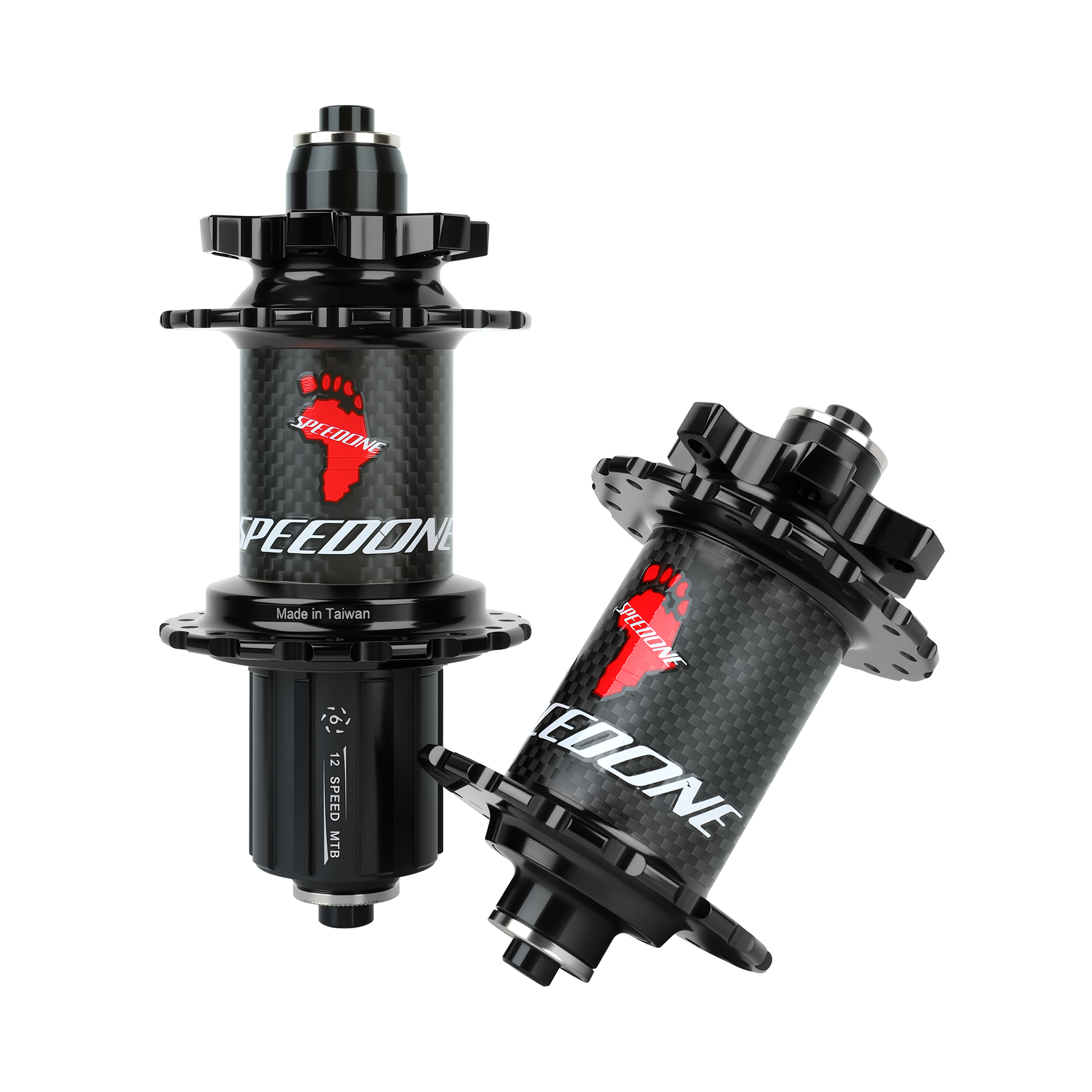

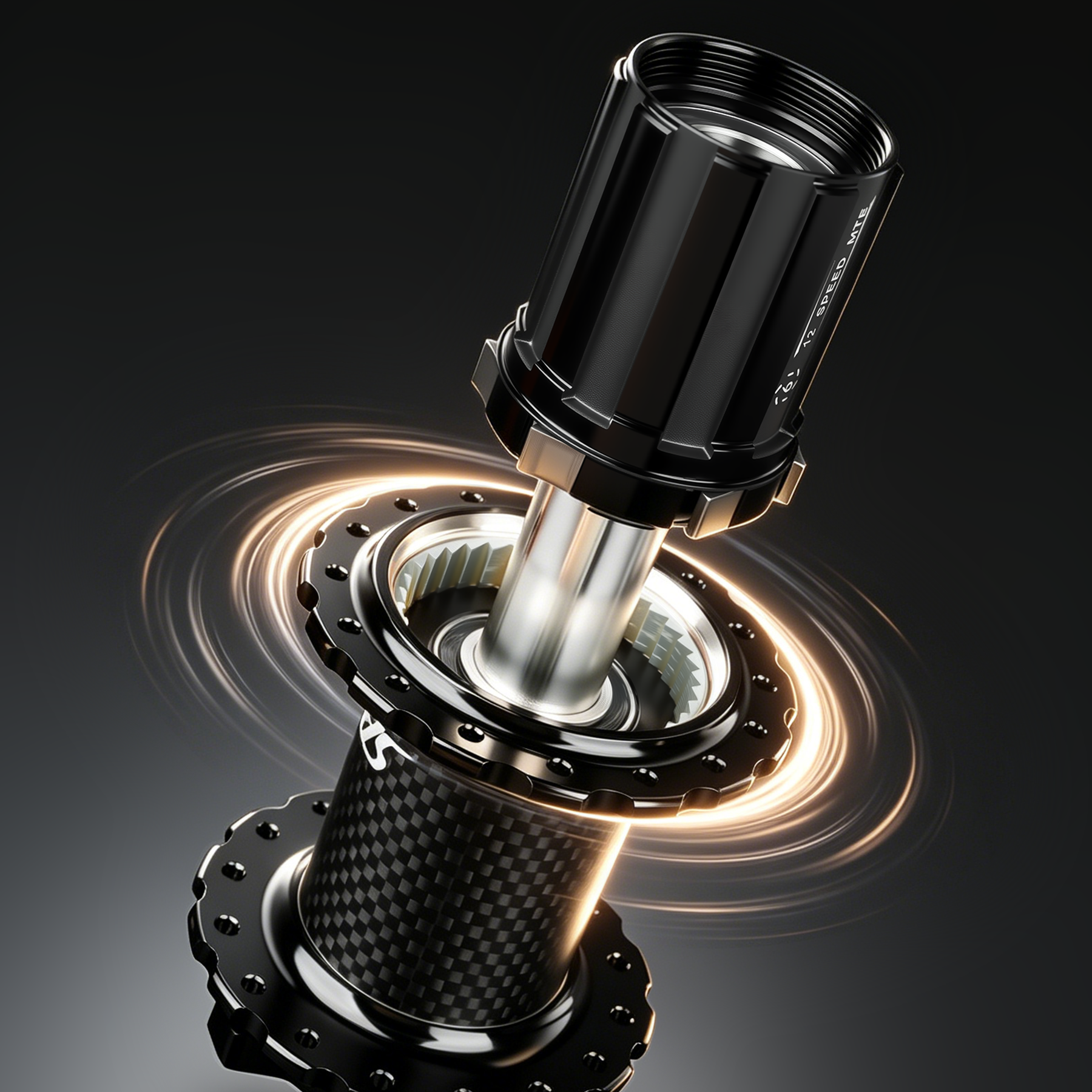

Speedone Pilot Carbon Fiber MTB Hub Set
The Speedone Pilot Carbon Fiber MTB Hub Set blends a carbon fiber shell with aviation-grade aluminum, delivering the ultimate balance of lightweight design and rugged structural integrity. Equipped with a 120-click, 6-pawl freehub structure and a crisp $3^\circ$ engagement angle, it offers lightning-fast acceleration and a signature, deep coasting sound.
FEATURES
Premium Rolling: Features imported Japanese S&S precision sealed bearings for ultra-low resistance and mud/dust protection on rugged trails.

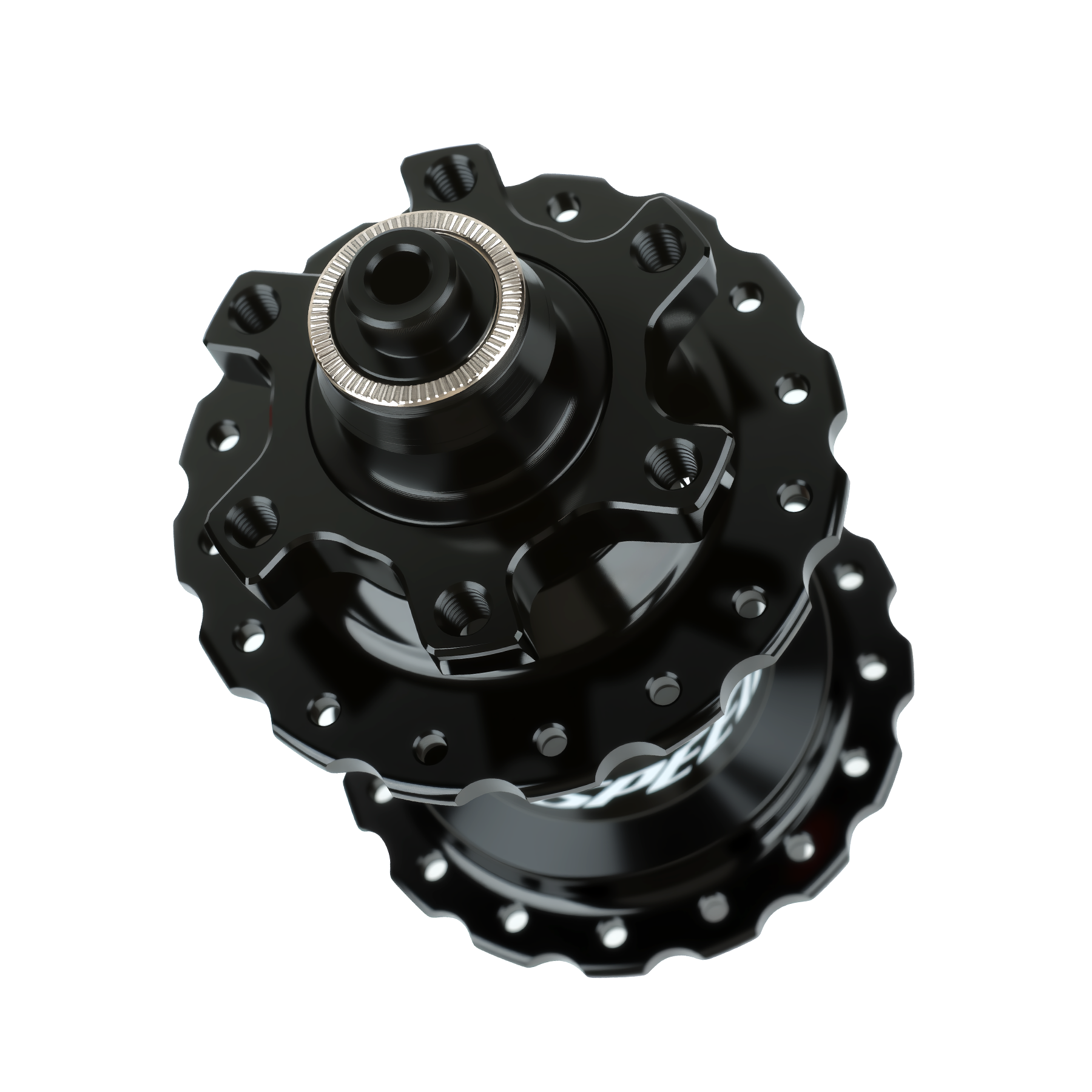

Precision Machining: One-piece cold-forged and CNC-machined body guarantees exceptionally tight tolerances and perfect fitment.
Universal Compatibility: Tool-free interchangeable caps for QR and Thru-Axle setups. Standard 32H configuration, Shimano HG freehub, and 6-bolt disc rotor compatibility.
Accelerate Faster: Engineered to reduce wheelset rotational inertia, significantly boosting climbing agility and acceleration.

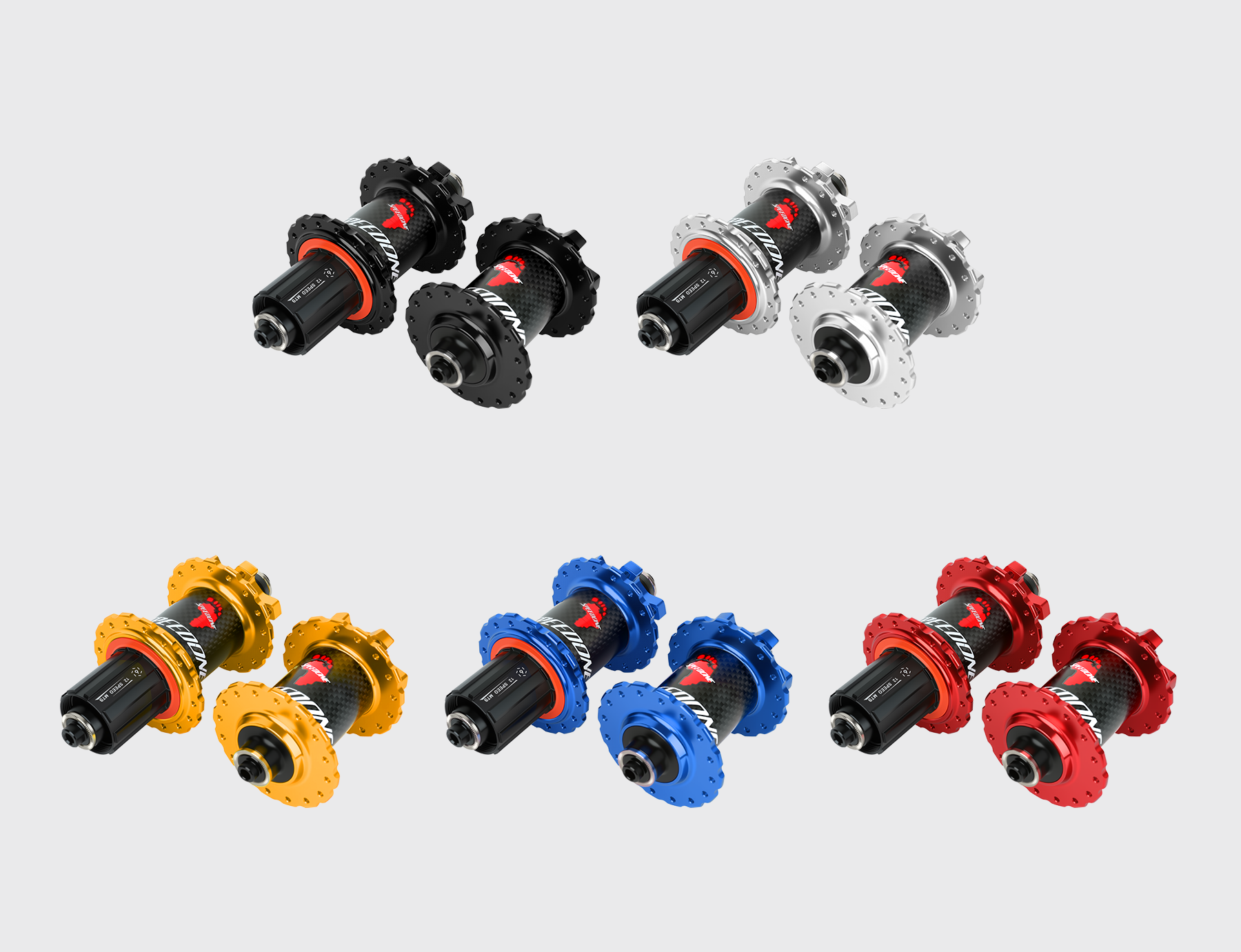

5 Vibrant Colors: Elevate both your bike’s aesthetics and its trail performance.
Specifications
Parameter
Specification Details
Brand & Model
Speedone Pilot MTB Bearing Hub Set
Drive System

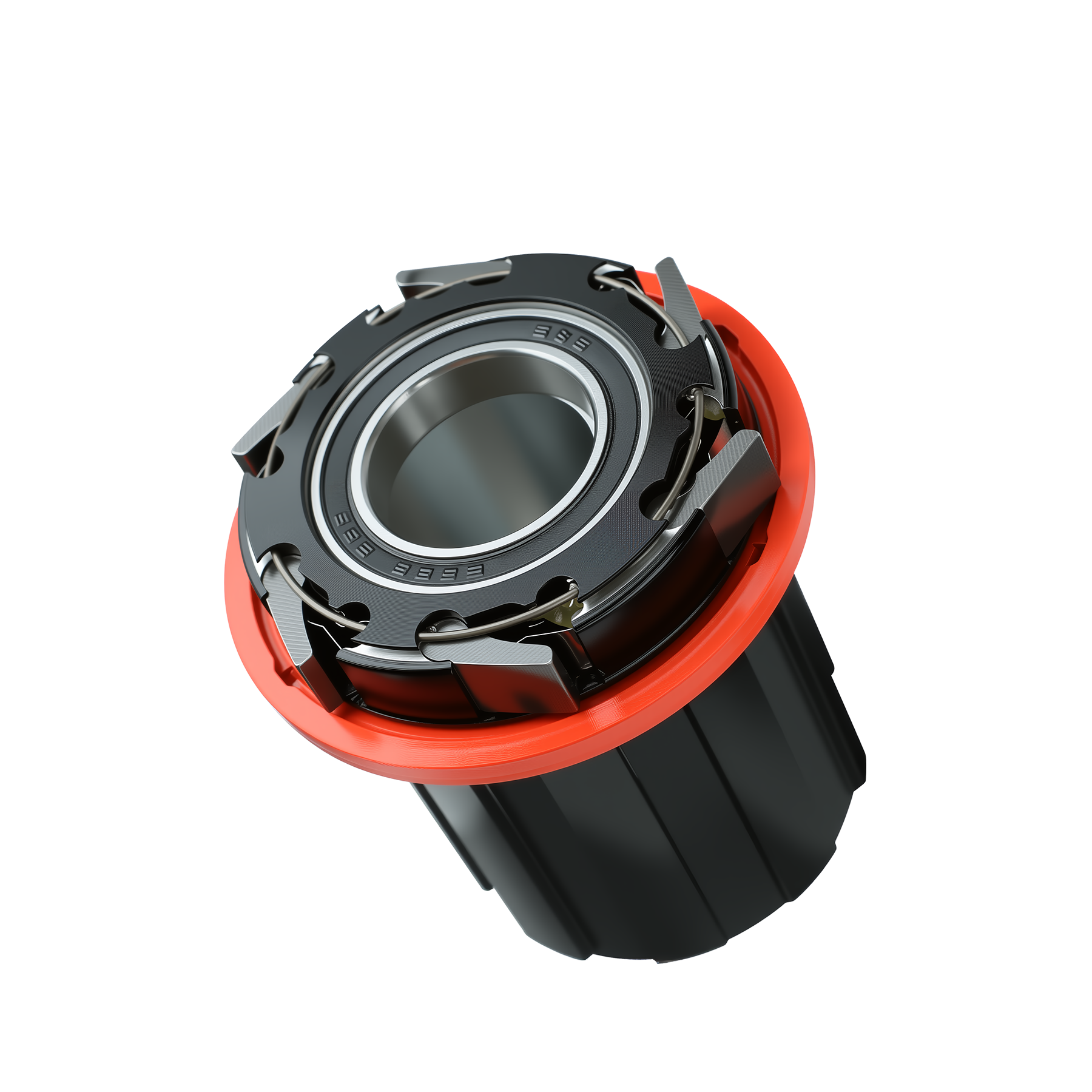

6-pawl freehub, 3° engagement, 120 clicks; instant engagement, smooth transfer; optimized for XC trails
Material & Craft
Hub Body: AL6061/T6 Alloy + Carbon Shell; Axle: AL7075/T6 Alloy; Freehub: AL7075/T4-T6 Alloy
Bearing System

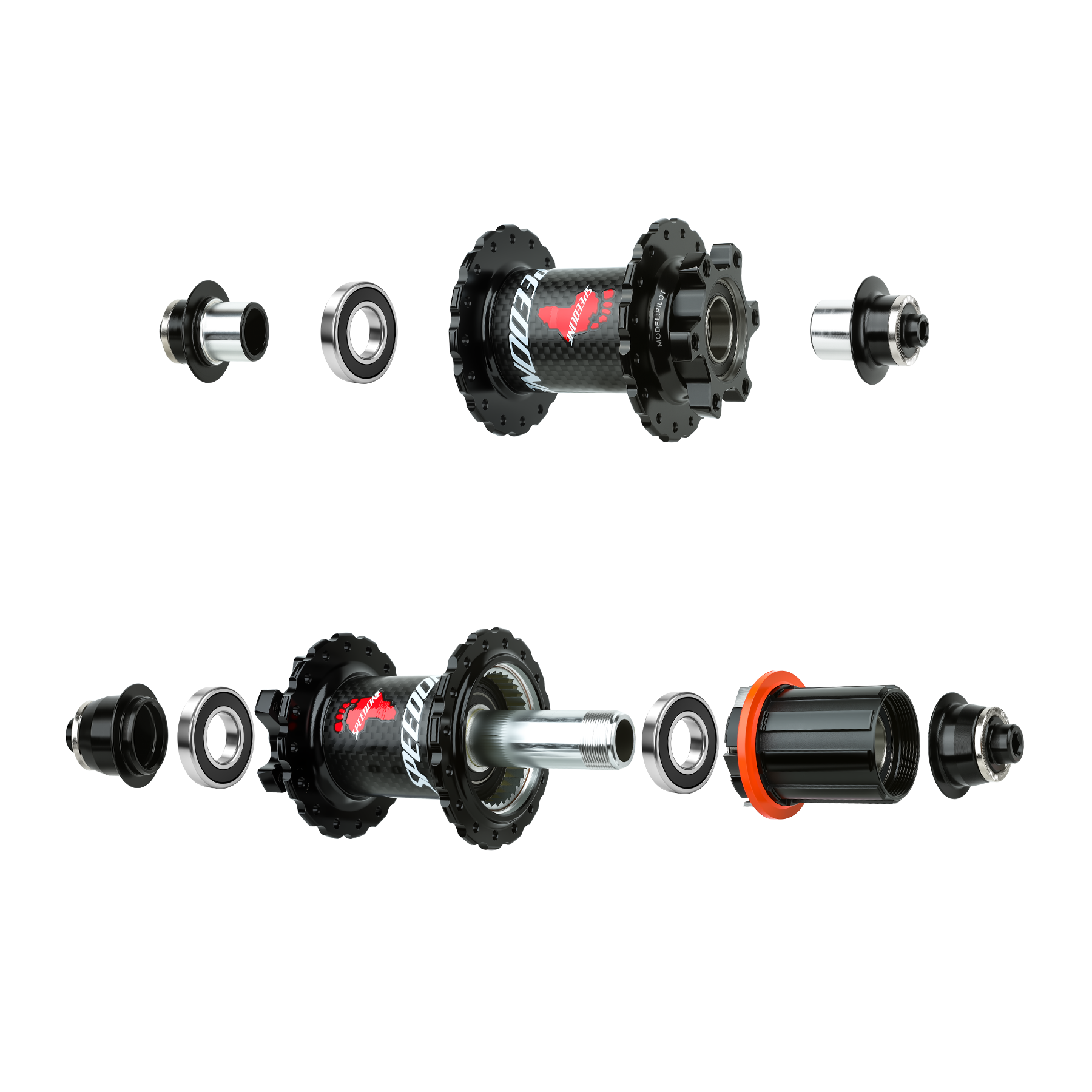

Front Hub: 2 Japanese Precision Bearings; Rear Hub: 4 Japanese Precision Bearings
O.L.D. Specs

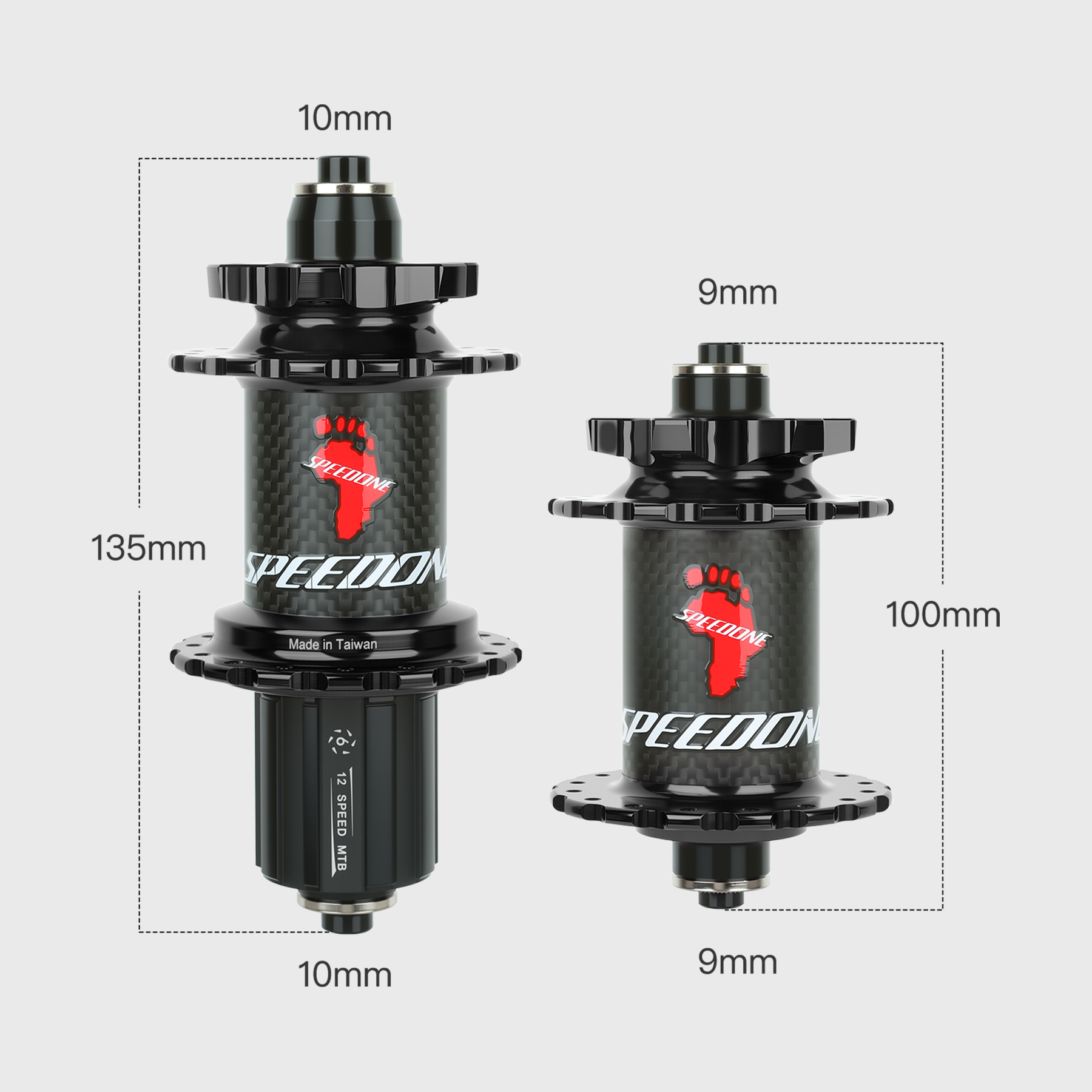

Front: 9×100mm QR (Convertible to 15×100mm Thru-Axle) Rear: 10×135mm QR (Convertible to 12×142mm Thru-Axle)
Compatibility
32 Holes; Shimano HG Freehub; Fits 14G J-Bend Spokes & 6-Bolt Rotors
Weight
Front: ~167g | Rear: ~270g
Package Includes

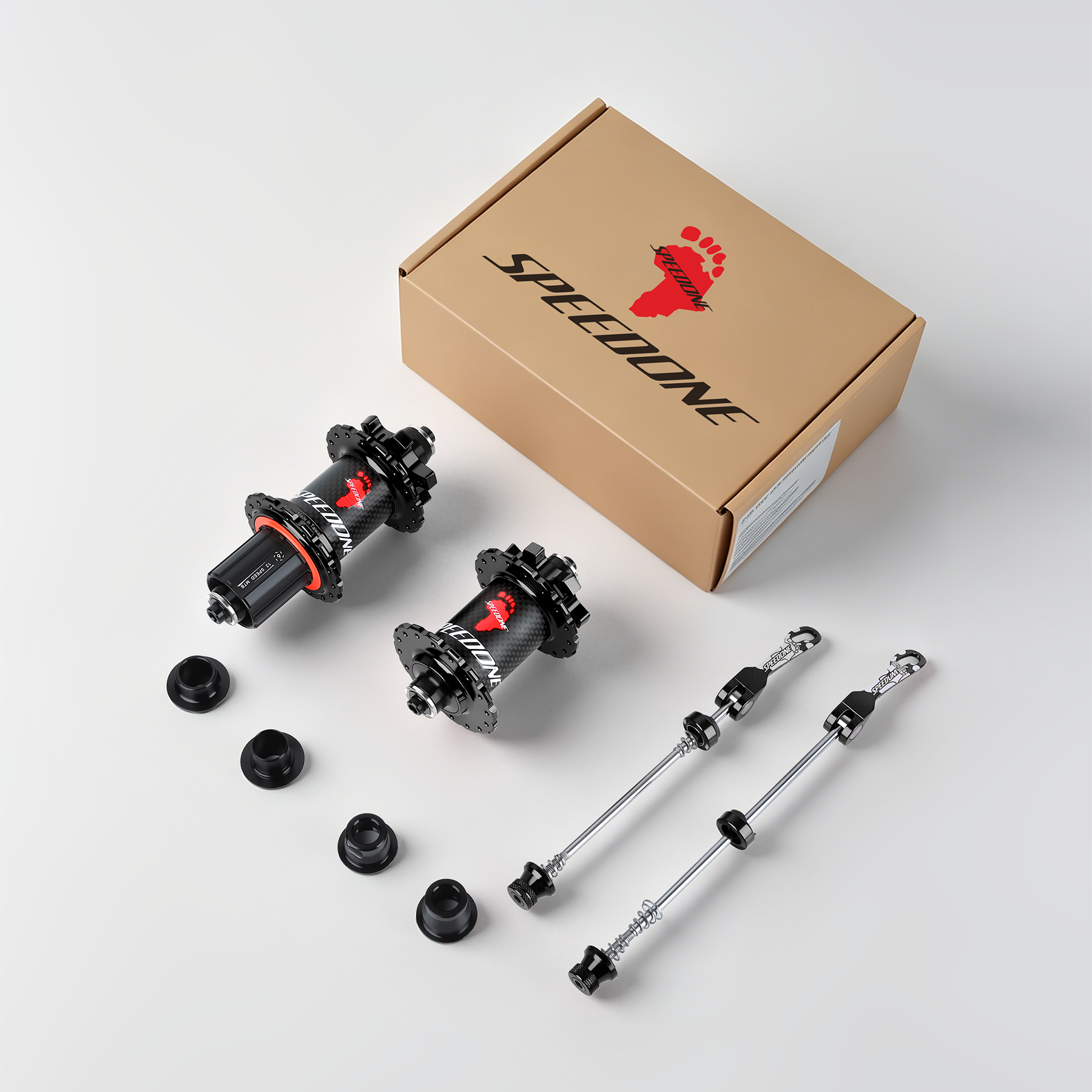

One pair of hubs + QR skewers + Thru-Axle conversion end caps
Color Options
Black, Red, Silver, Gold, Blue
