FM571
DESCRIPTION

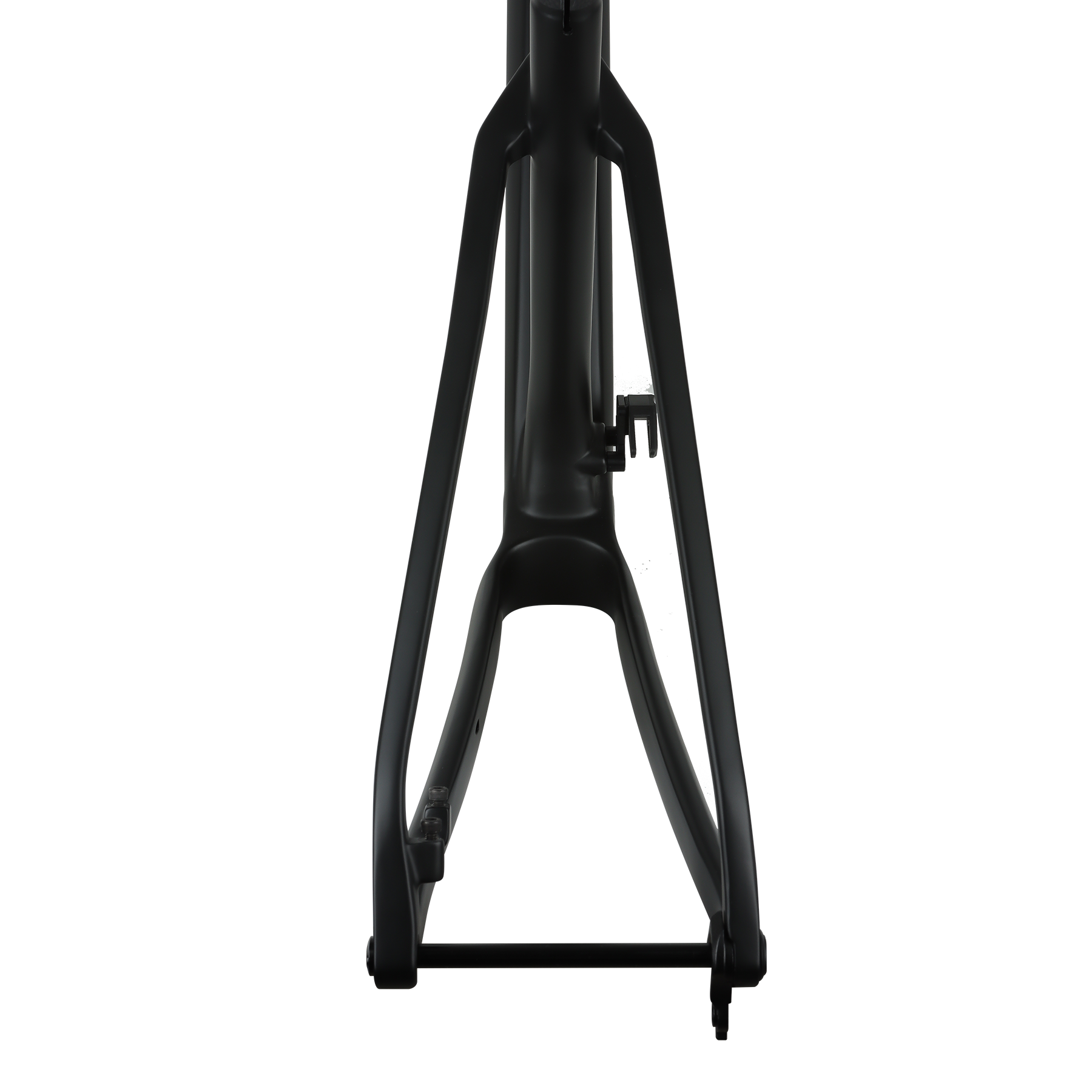

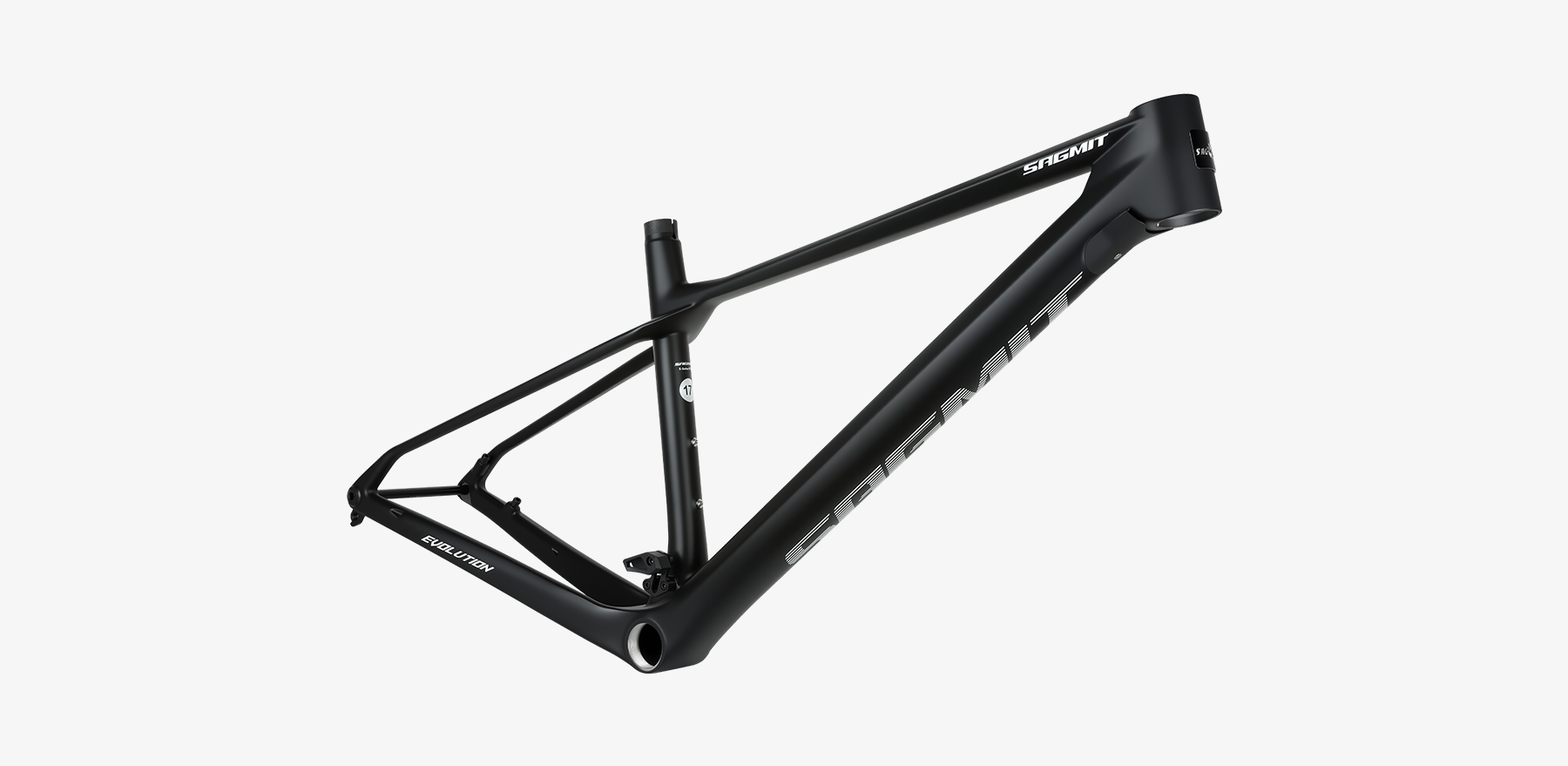

SAGMIT EVOLUTION T700 Carbon Professional XC MTB Frame
Crafted from high-modulus T700 carbon fiber, this frame weighs just 1,450g (including hardware). While drastically reducing overall bike weight, it delivers direct, high-efficiency power transfer to seamlessly meet the rigorous demands of cross-country racing and high-intensity training.
FEATURES

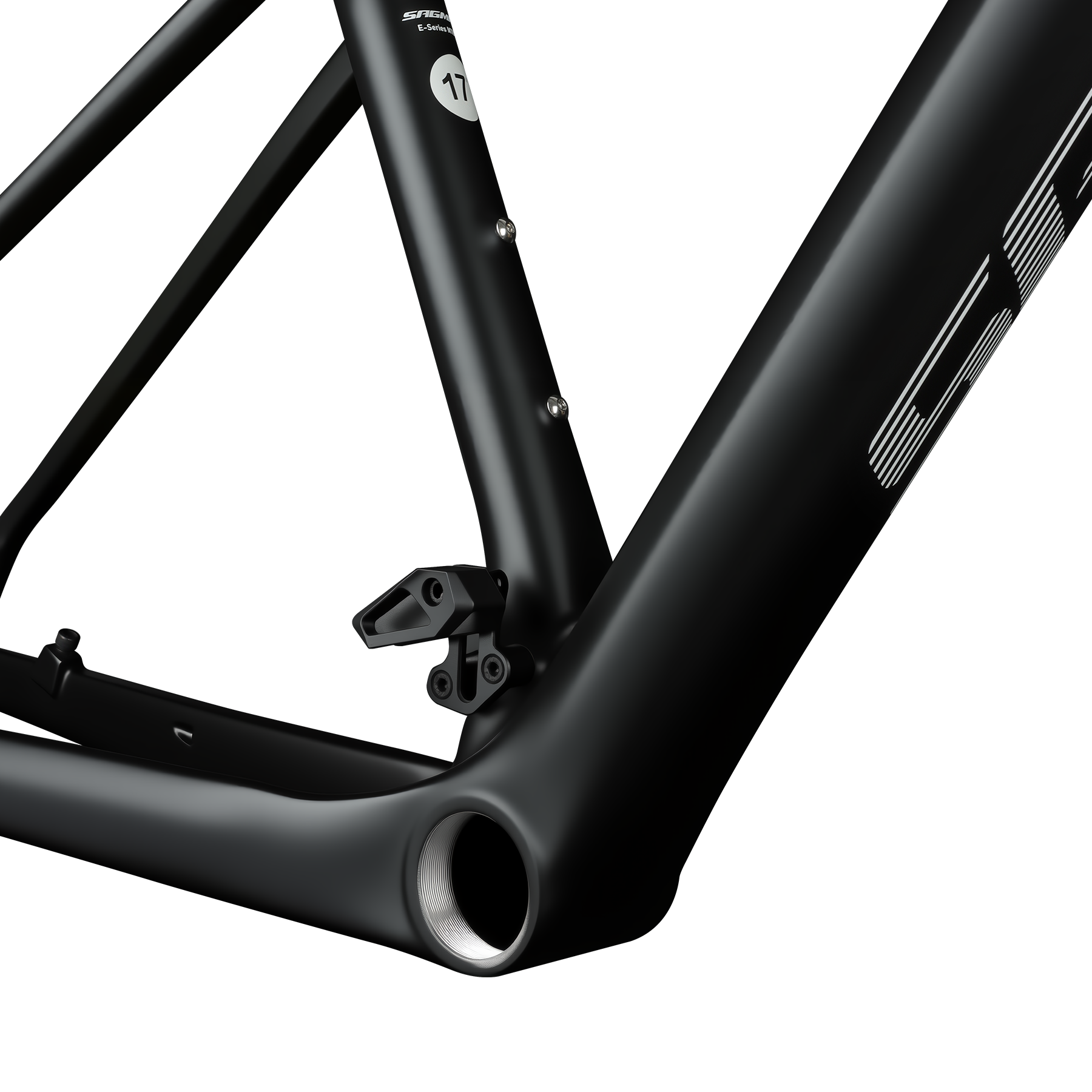

All-New T47 Bottom Bracket: Equipped with a T47x73mm large-diameter threaded BB to maximize stiffness, eliminate creaks, and simplify routine maintenance.
SRAM Universal UDH Derailleur Hanger: Features the industry-standard UDH structure to protect both the frame and derailleur upon impact. Universally compatible and effortless to replace worldwide.
BOOST 148 Rear Spacing: The 12x148mm thru-axle design significantly enhances rear wheel stiffness, yielding more stable cornering control and elevated power transfer efficiency.

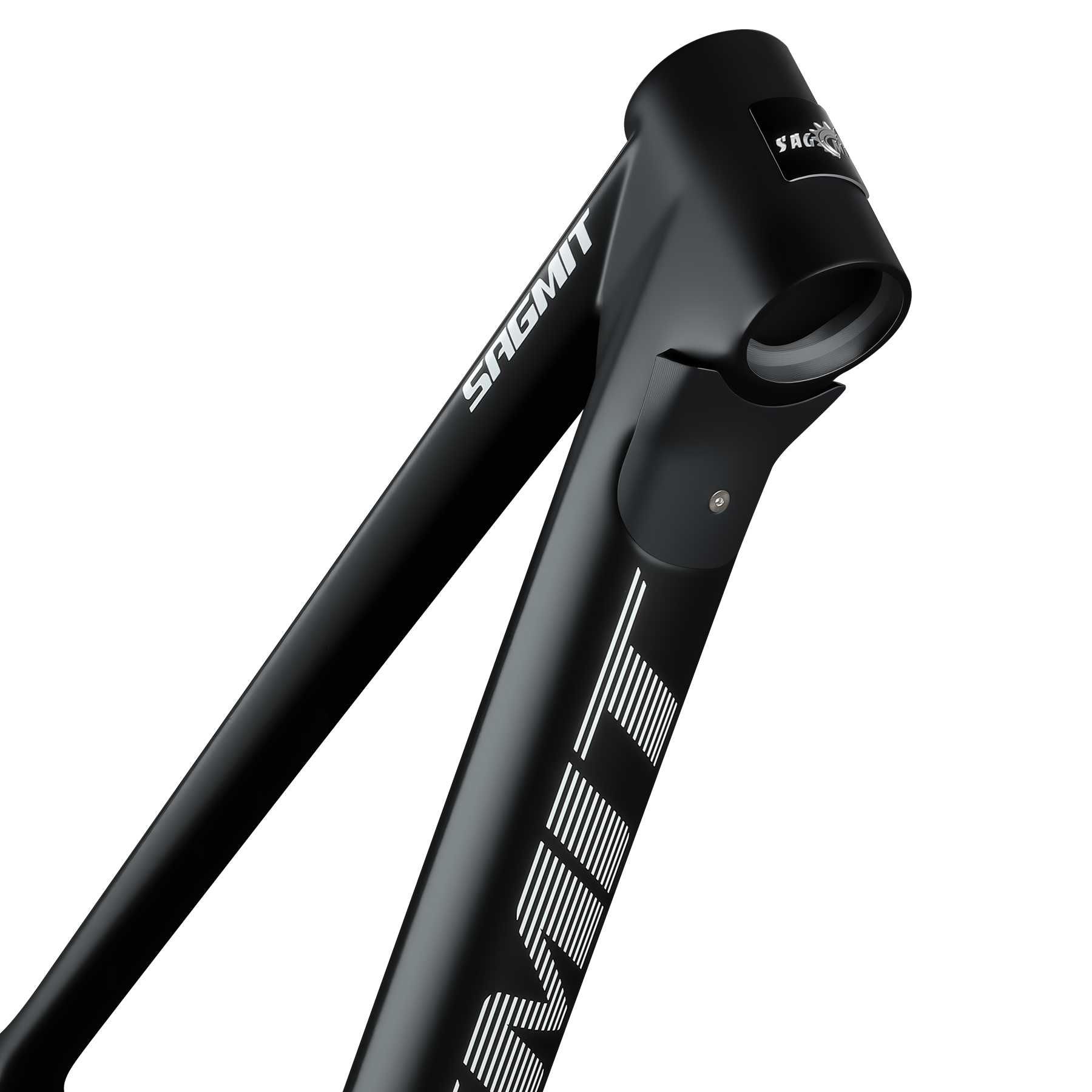

Integrated Protection System: Built-in steering block prevents handlebars from over-rotating and striking the downtube. Features dedicated ISCG chain guide mounts for drop-free security on aggressive trails.

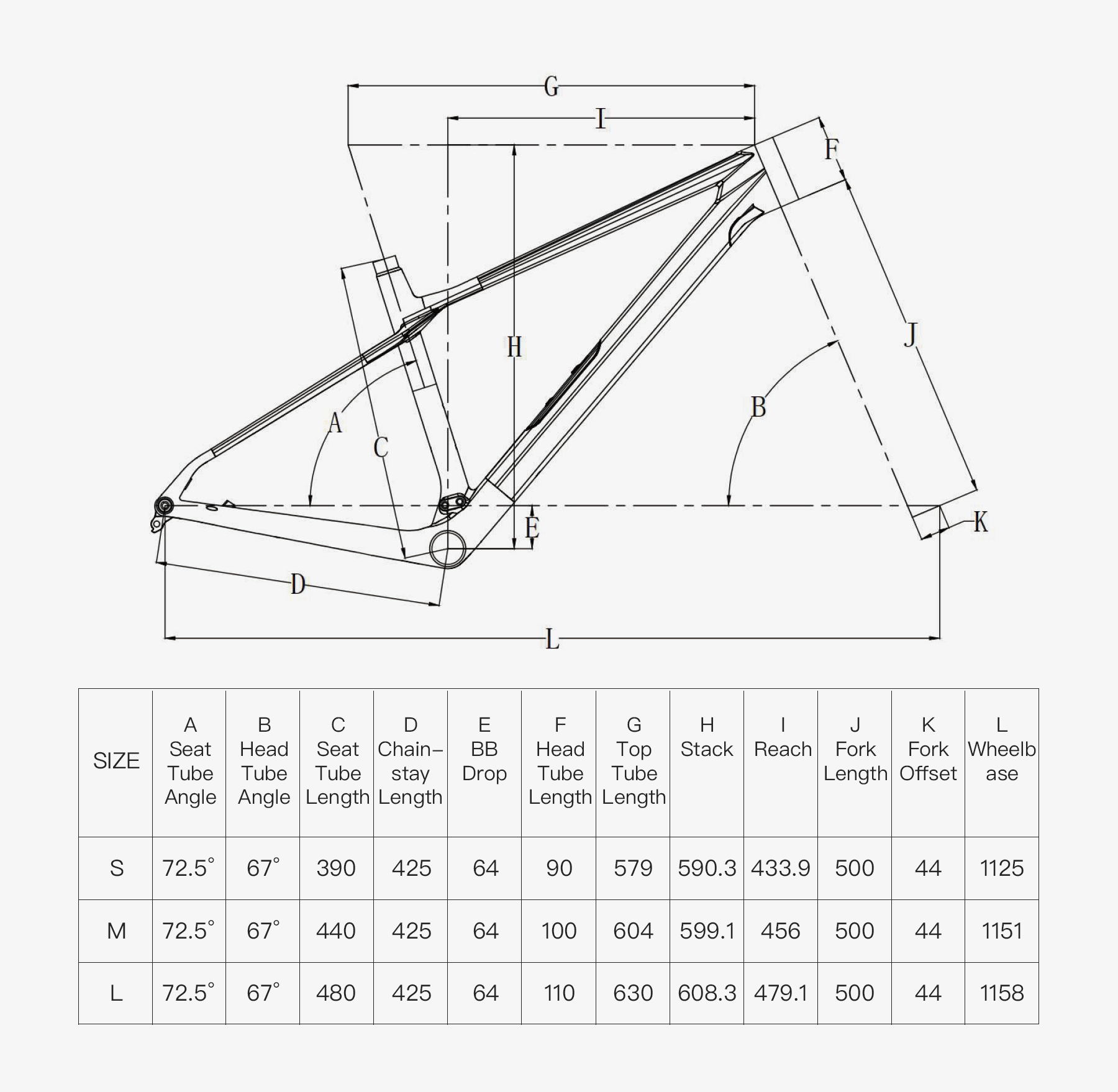

Race Geometry & Internal Routing: Engineered with progressive race geometry featuring a slack 67° head tube angle. Paired with full internal cable routing for a clean, sleek look and superior high-speed descending stability.

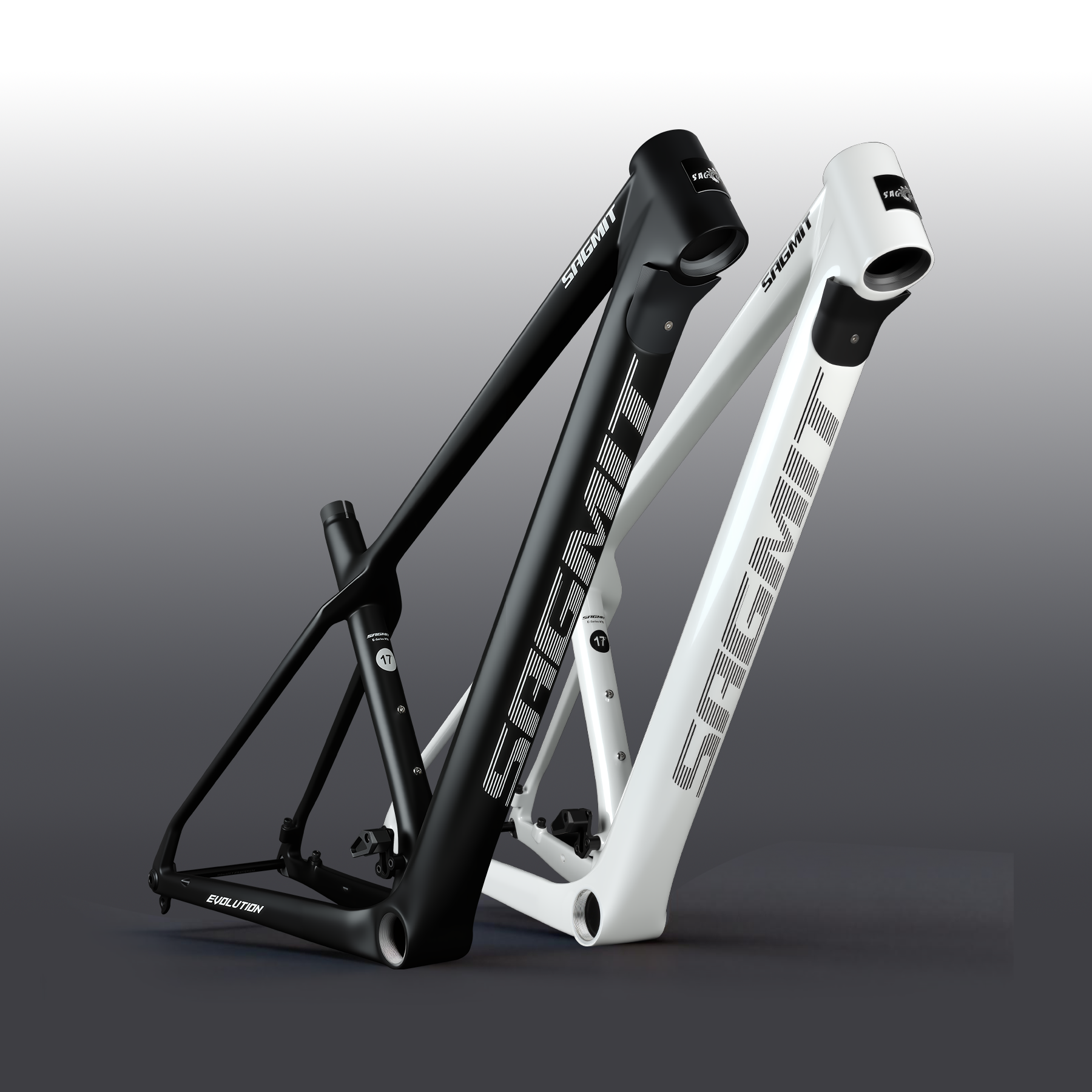

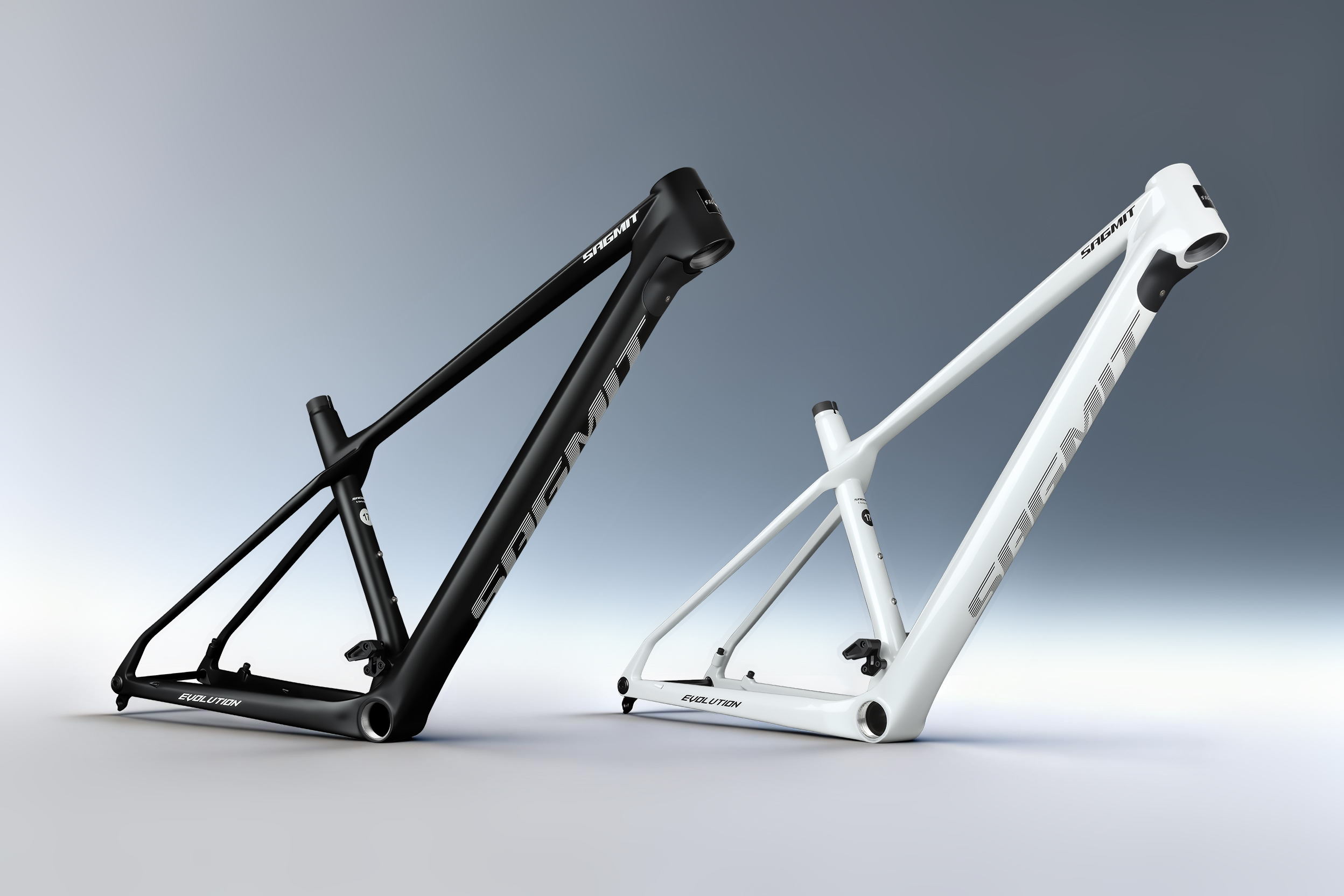

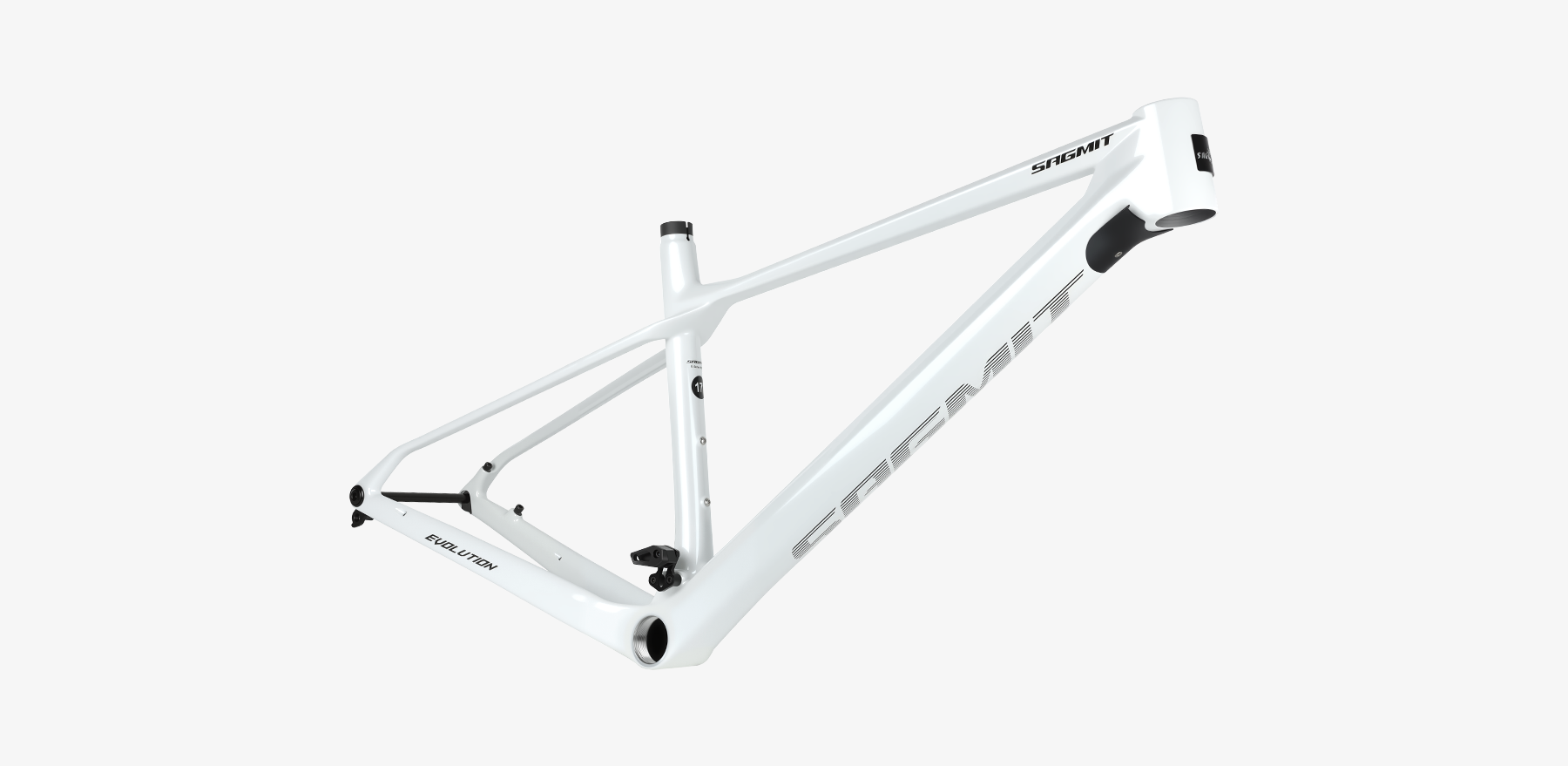

Premium Two-Tone Finish: A striking Pearl White + Matte Black colorway. The scratch-resistant, fade-resistant paint combines high-end aesthetics with rugged outdoor durability.
Ready-to-Build Hardware: Comes pre-installed with the UDH hanger, seatpost clamp, and rear thru-axle for a hassle-free, out-of-the-box assembly experience.
Multi-Size Scaling: Available in S, M, and L sizes, accommodating riders from 155cm to 190cm in height.
Specifications
Material
T700 High-Modulus Carbon Fiber
Head Tube
52x52mm (Integrated Full Internal), 67° Head Angle
Rear Spacing
12x148mm BOOST Thru-Axle
BB / Brake Mount
T47 Threaded BB / 160mm Direct Mount Disc Brake
Max Tyre Clearance
29" x 2.35"
