FM568
DESCRIPTION

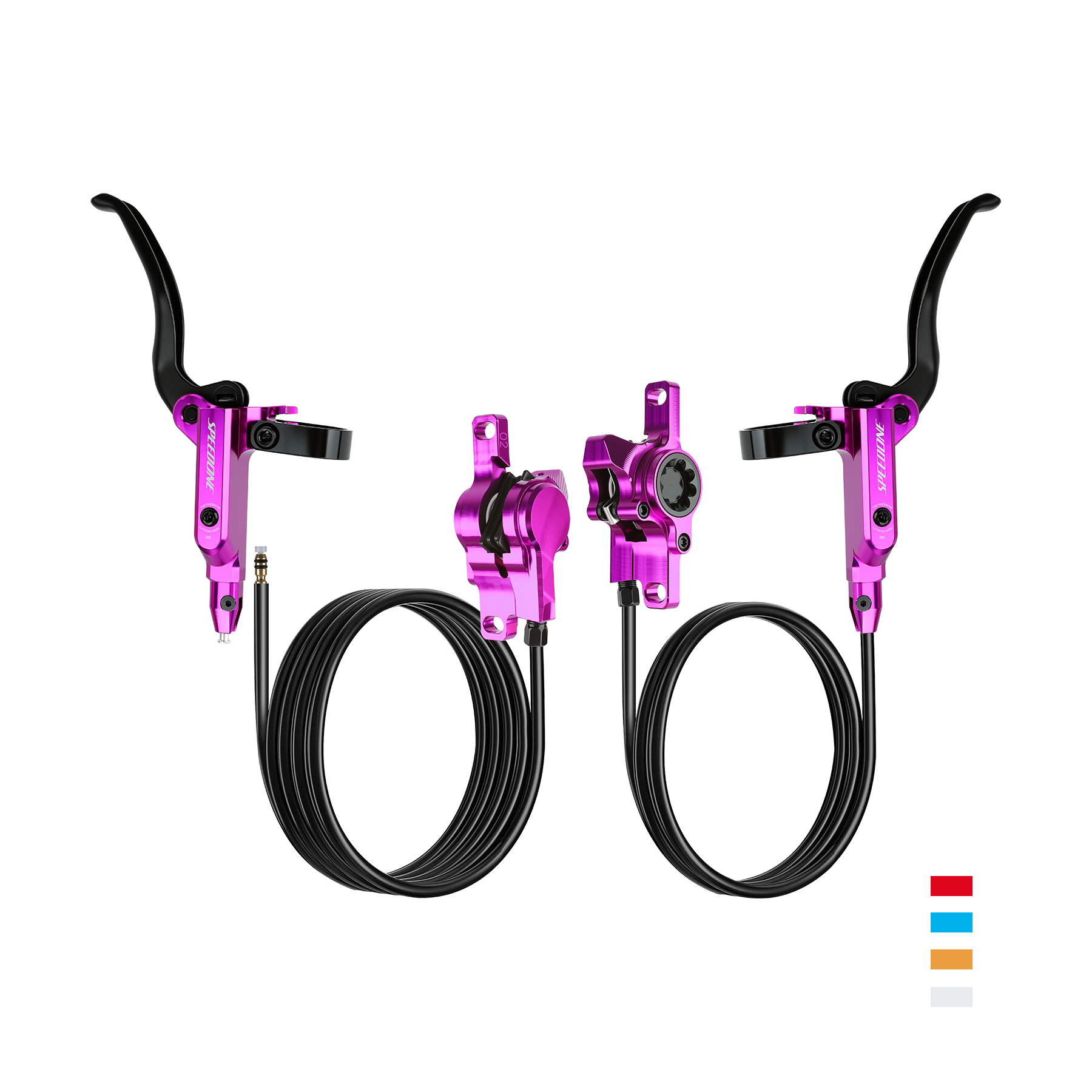

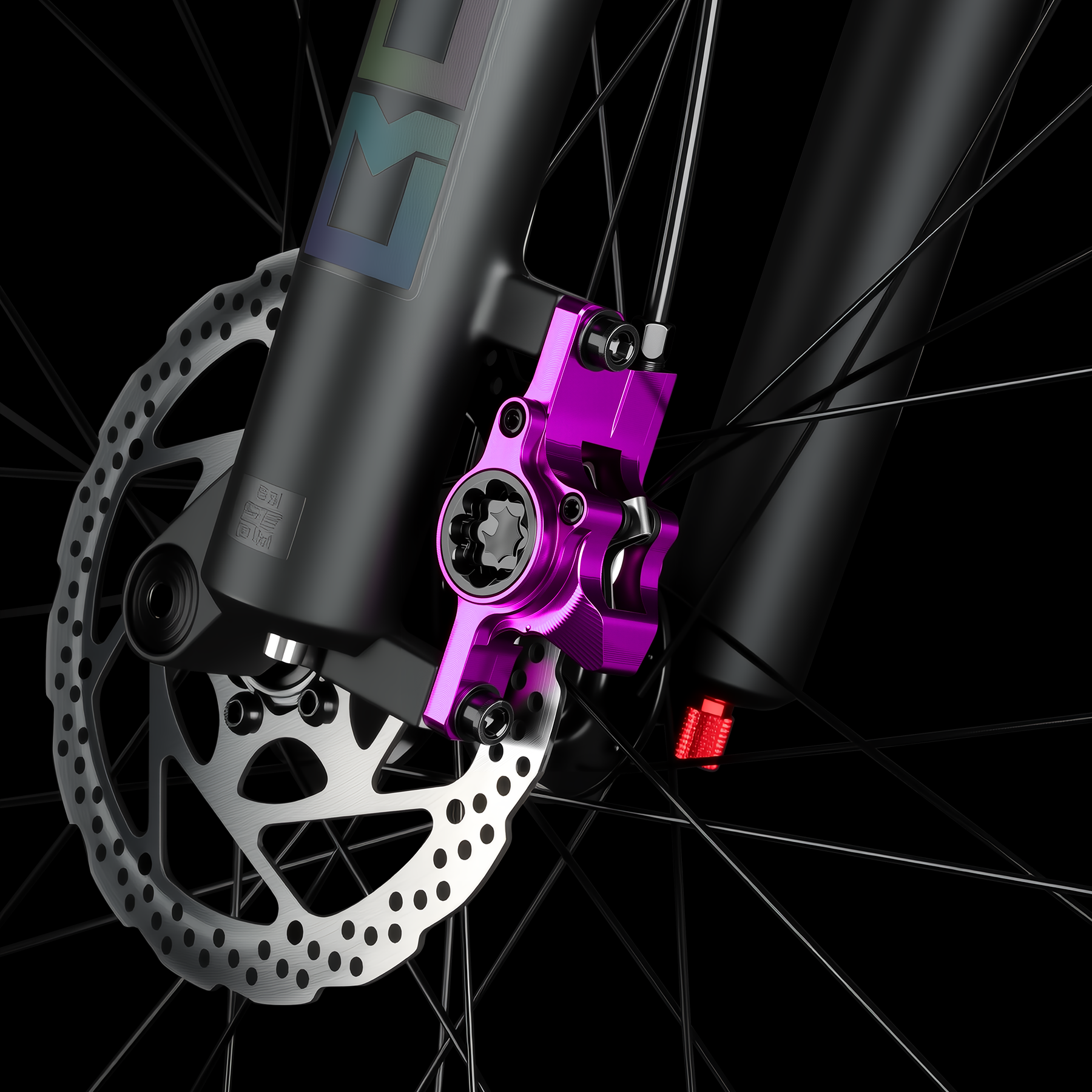

SPEEDONE Monoblock CNC Dual-Piston Hydraulic Disc Brake
SPEEDONE redefines the perfect balance between lightweight design and raw stopping power. The caliper is precision CNC-machined from a single block of high-grade magnesium-aluminum alloy, delivering breathtaking weight savings without sacrificing maximum rigidity. Whether tearing down singletracks, commuting through the city, or pushing high-speed E-bikes, it provides precise, rapid, and fade-free peak braking performance.
FEATURES
21mm Ceramic Dual-Pistons: Equipped with dual 21mm high-strength ceramic pistons that boast exceptional thermal isolation and wear resistance, driving heat fade down to absolute zero. Delivers a real-world tested braking force of 490N for instantaneous, powerful bite.

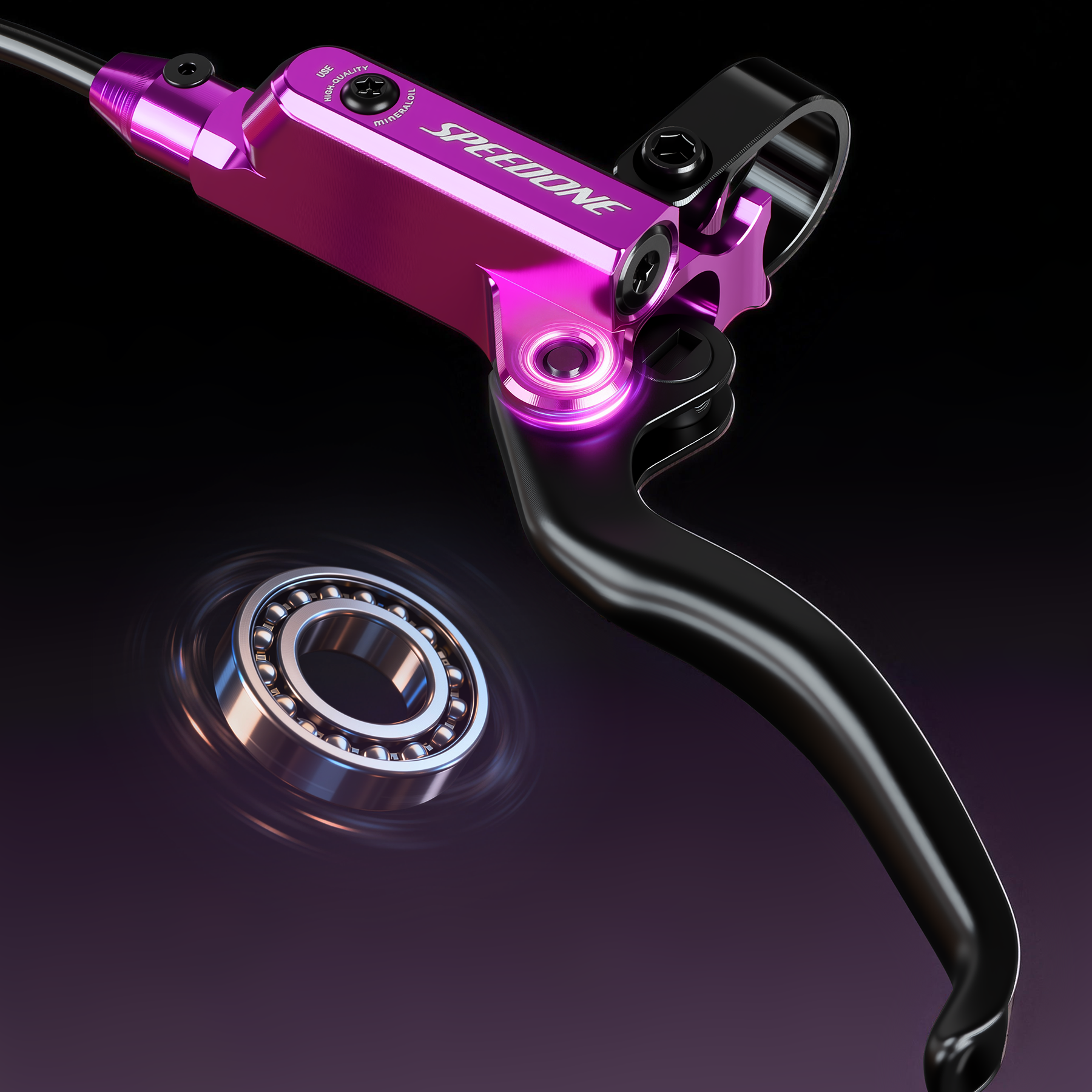

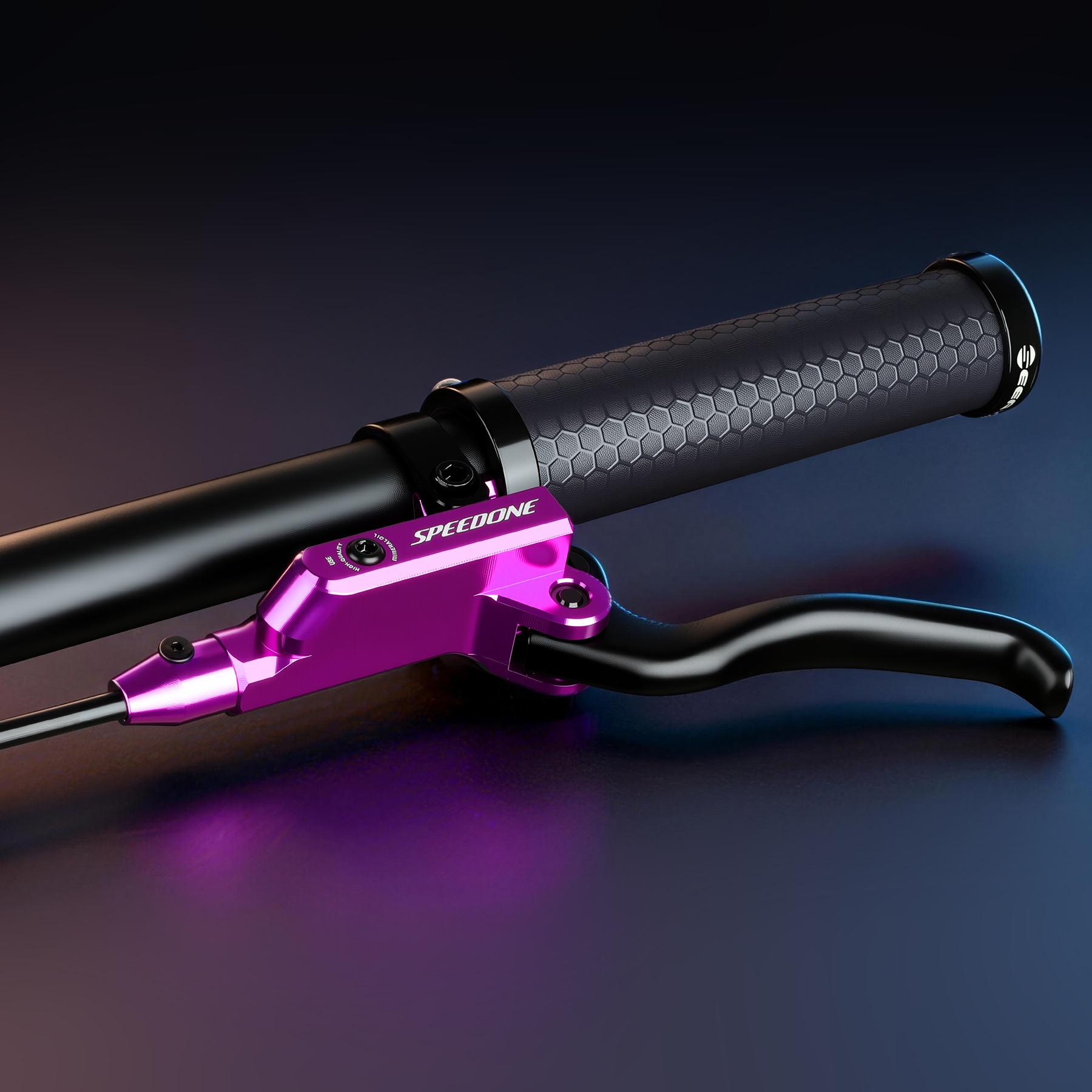

Bearing Pivot & Enlarged Master Cylinder: Lever blade features an upgraded cartridge bearing pivot for a buttery-smooth feel and snappy return. The enlarged integrated master cylinder increases fluid volume, ensuring a full, linear, and highly modulatory lever feel with every squeeze.

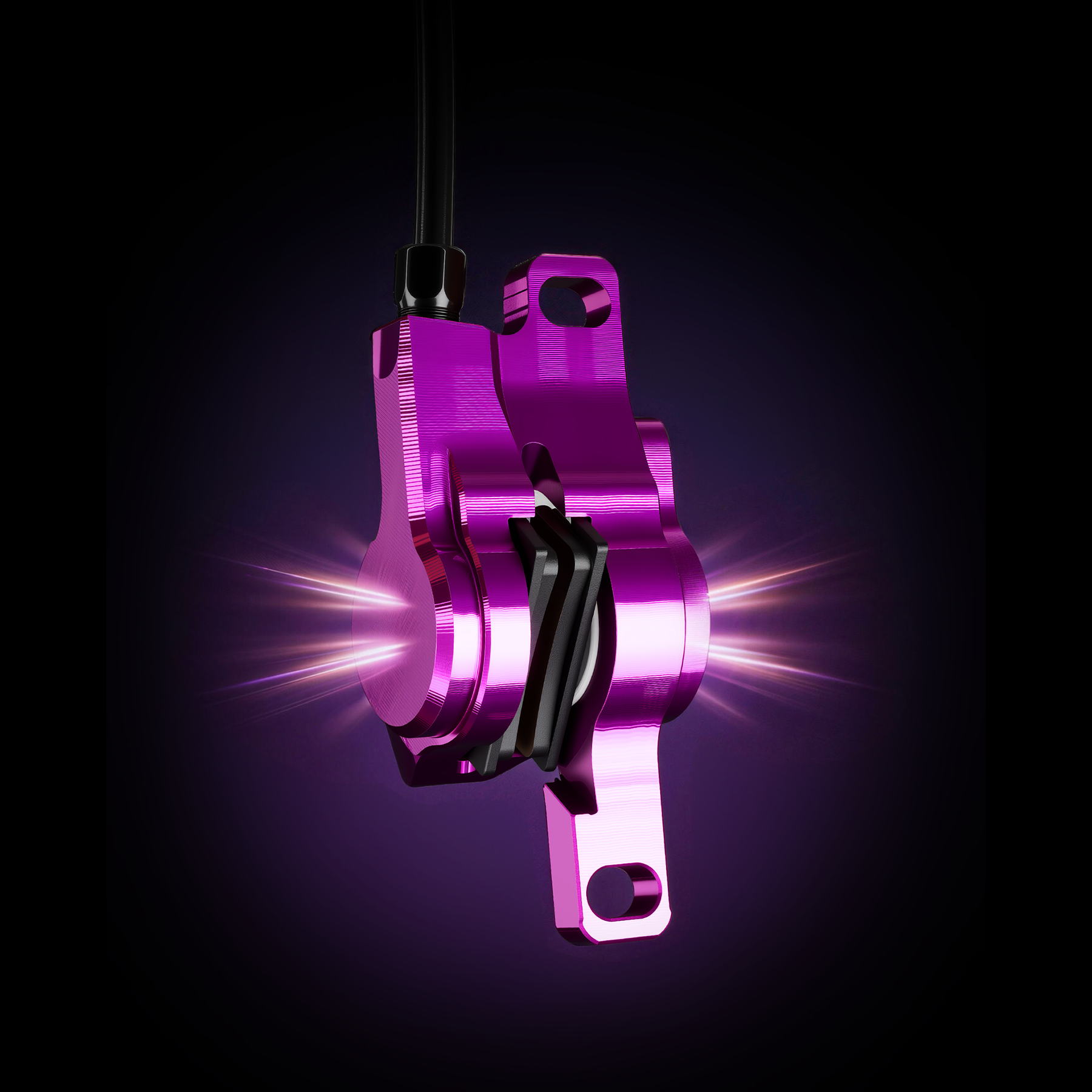

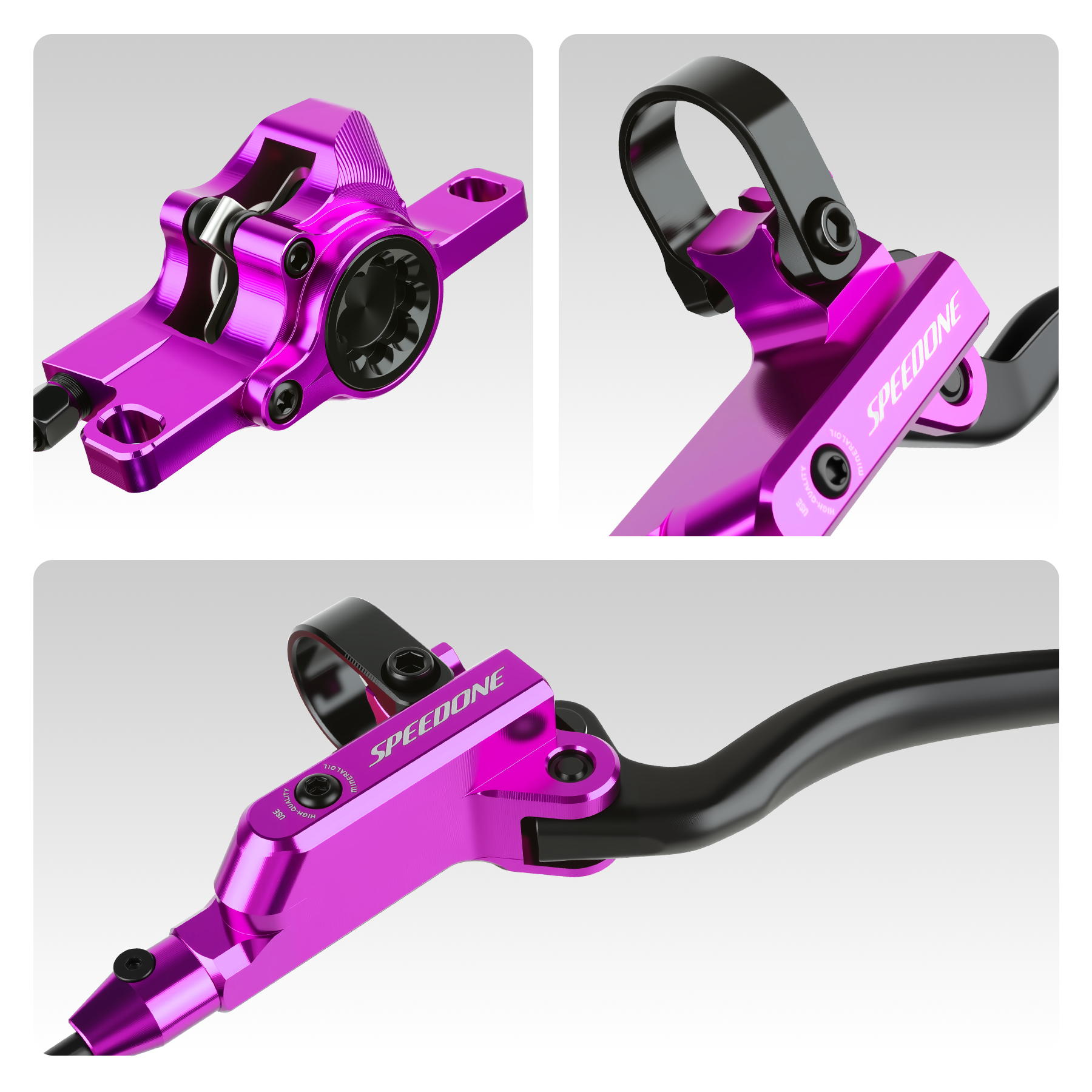

Monoblock Caliper & Ultralight Design: The entire set (front + rear) weighs only ~418g (front ~200g / rear ~218g). It significantly reduces unsprung mass while maintaining race-ready structural integrity.

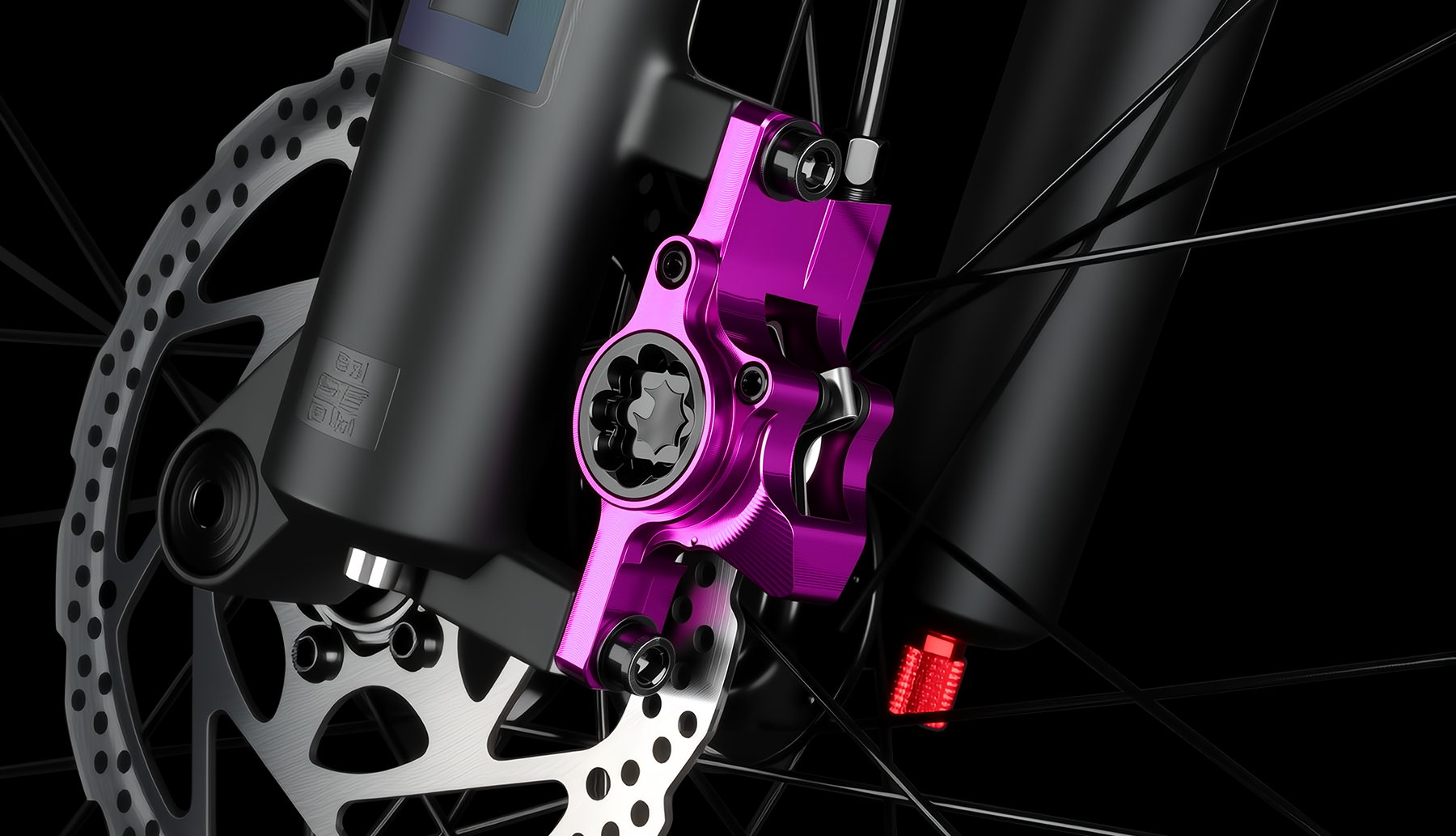

74mm Post Mount Compatibility: Standard 74mm Post Mount direct-fit design with 850mm front and 1550mm rear hose lengths. Seamlessly compatible with 160mm–203mm rotors (adapters required) and accommodates rotor thicknesses from 1.7mm to 2.3mm.
Mainstream Consumables & Easy Maintenance: Brake pads are fully compatible with widely available 32.3mm universal XT-style pads (comes stock with premium resin-metal composite pads). The system utilizes high-performance SGS-certified mineral oil, which is gentle on seals, highly heat-resistant, and effortless to bleed.

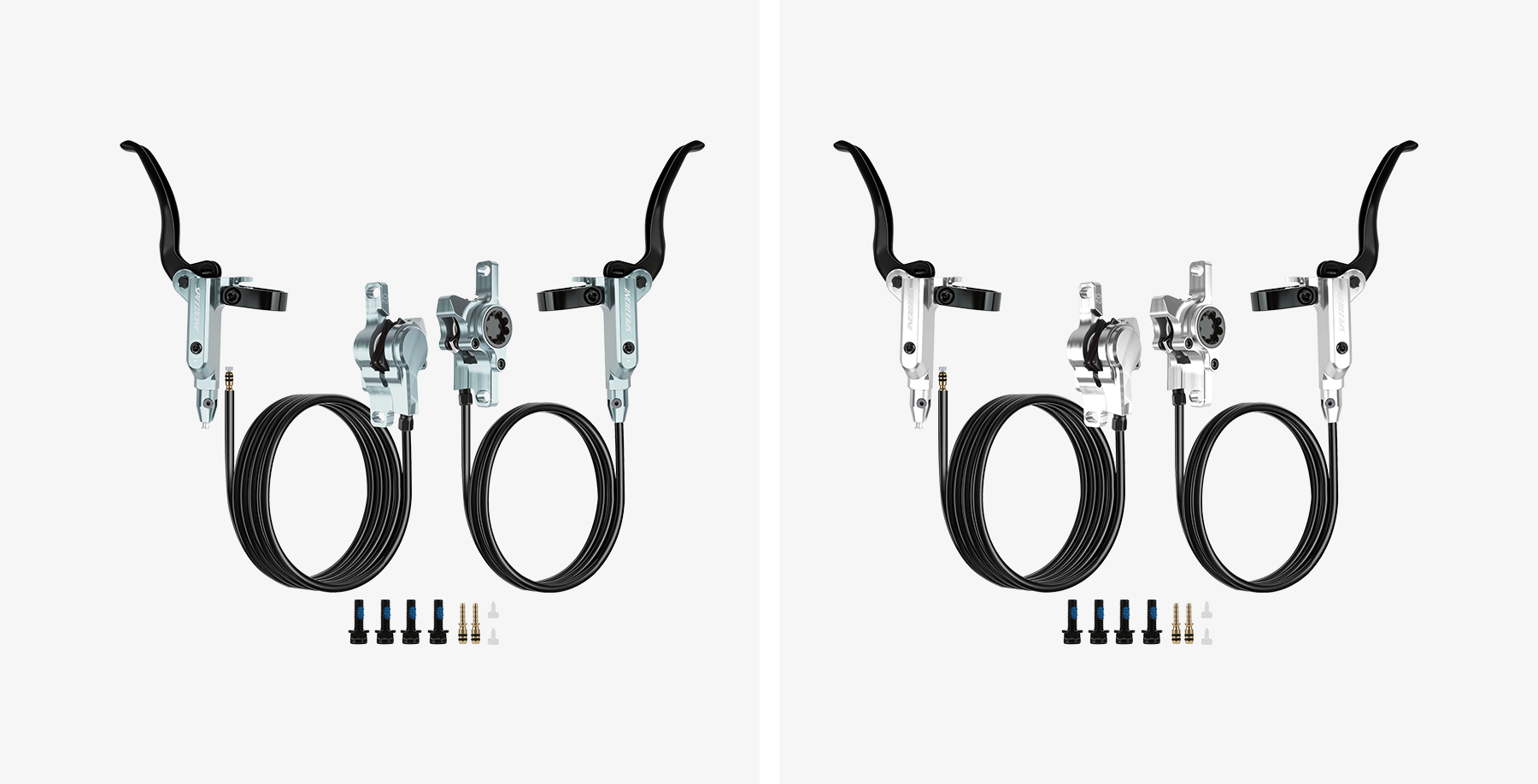

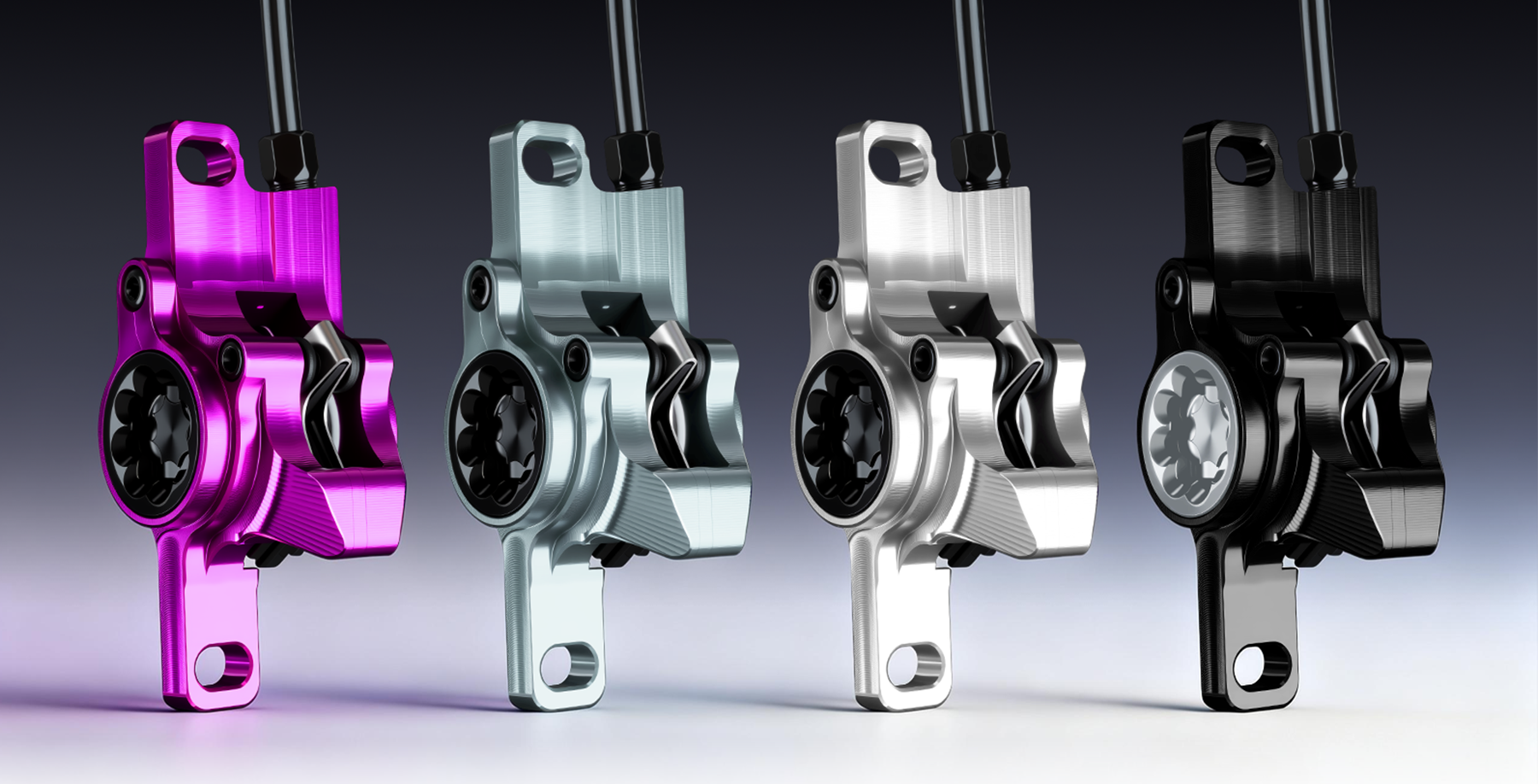

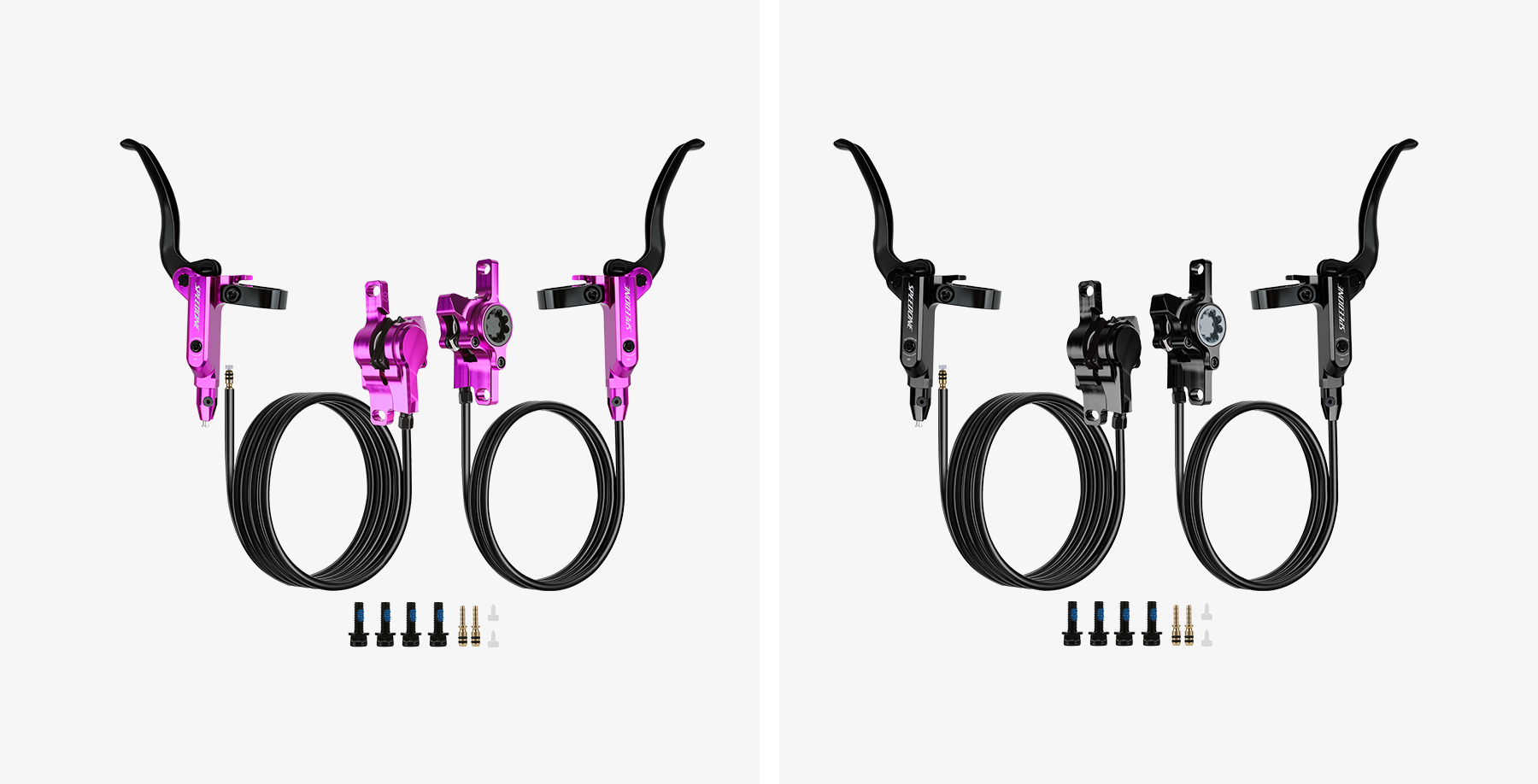

Four Premium Anodized Colorways: Available in Purple, Titanium, Silver, and Black with premium anodized textures to perfectly complement any sleek, stealthy, or aggressive bike build.
Specifications
Brand / Structure
SPEEDONE / Integrated Master Cylinder + CNC Monoblock Dual-Piston Caliper
Piston Material / Size
High-Strength Thermal Ceramic / 21mm Diameter
Tested Braking Force
Approx. 490N
Mounting Spec
Standard Post Mount 74mm (PM Direct Mount)
Hose Length
Front: 850mm / Rear: 1550mm
Rotor Compatibility
160–203mm Diameter (Requires Adapters), 1.7–2.3mm Thickness
Brake Fluid Type
SGS-Certified High-Performance Mineral Oil
Target Application
Mountain Bikes (MTB) / Folding Bikes / E-Bikes / Electric Motorcycles, etc. (Subject to frame and fork mounting compatibility)
