TZA323
DESCRIPTION
rebound damping
The most important aspect of this fork is the rebound damping and the sturdy dual-chamber setting to provide you with comfort and control as you over different types of terrain.
When it comes to shocks returning to their natural state and unset state, it is actually what allows your damper to return to the extended state enough to absorb the next bump.

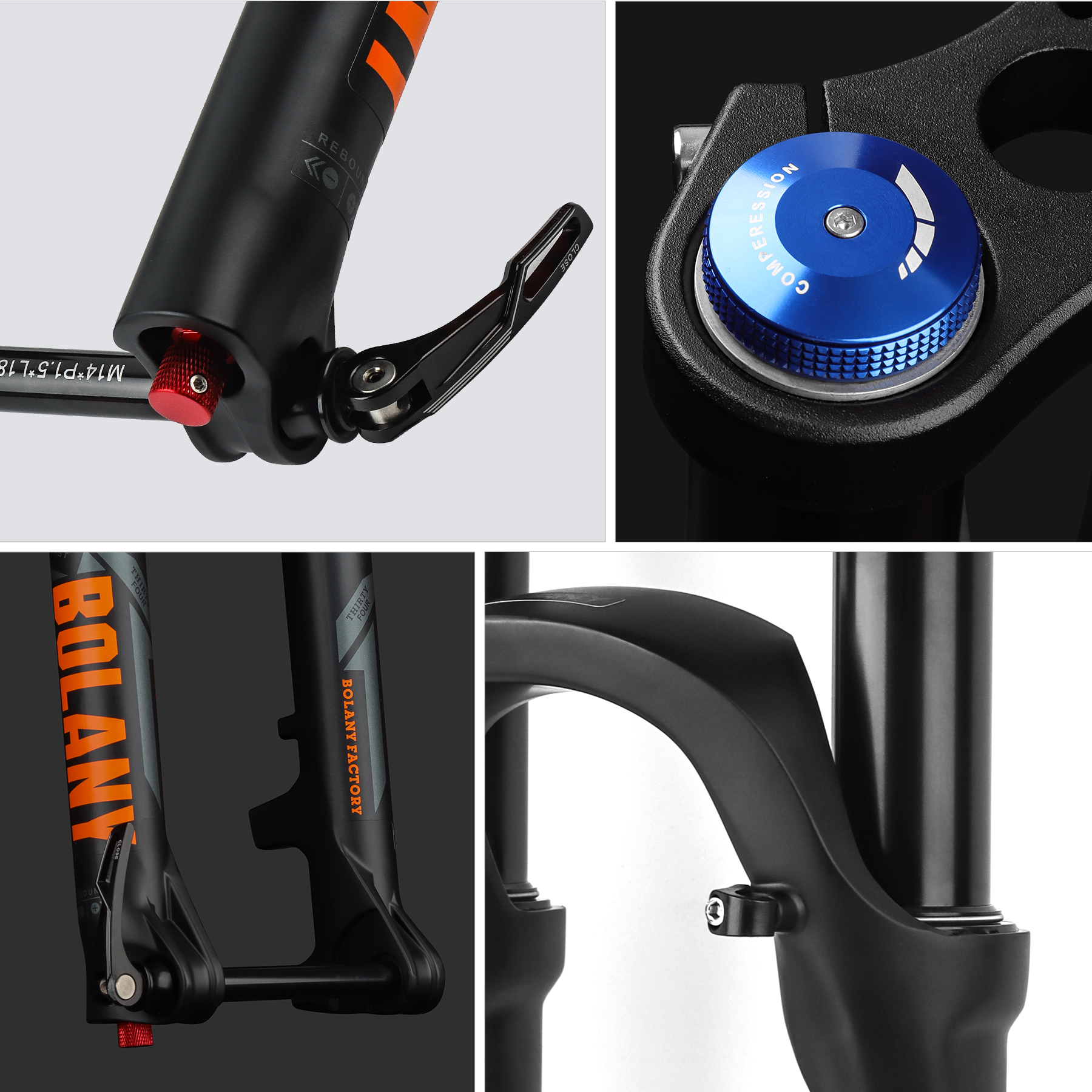

FEATURES
A-pillar Braking System: Integrated A-pillar braking system provides efficient braking performance and enhanced safety on rugged terrains.

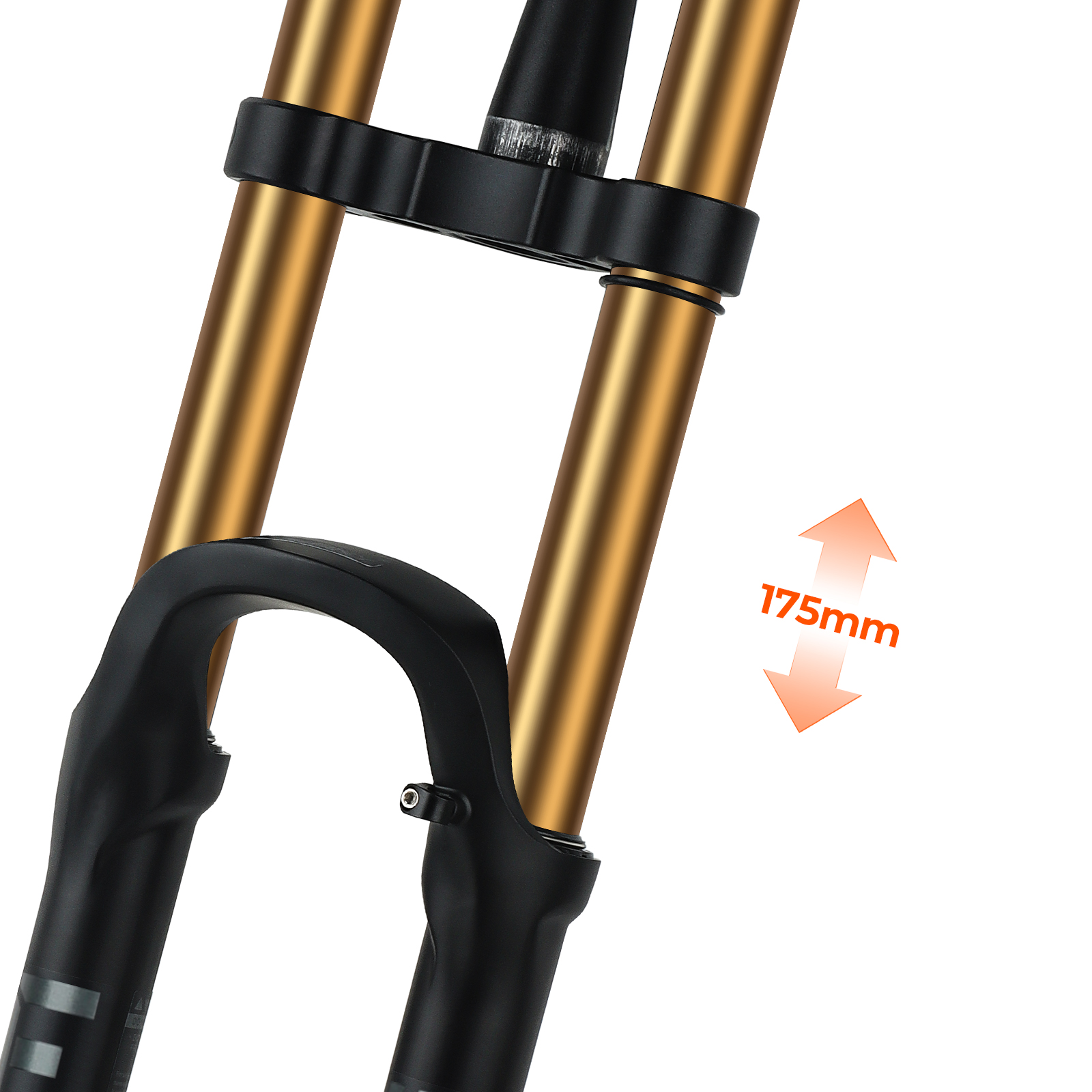

175mm Fork Suspension: Enjoy the 175mm Bolany suspension for the best driving experience on mountainous terrains.

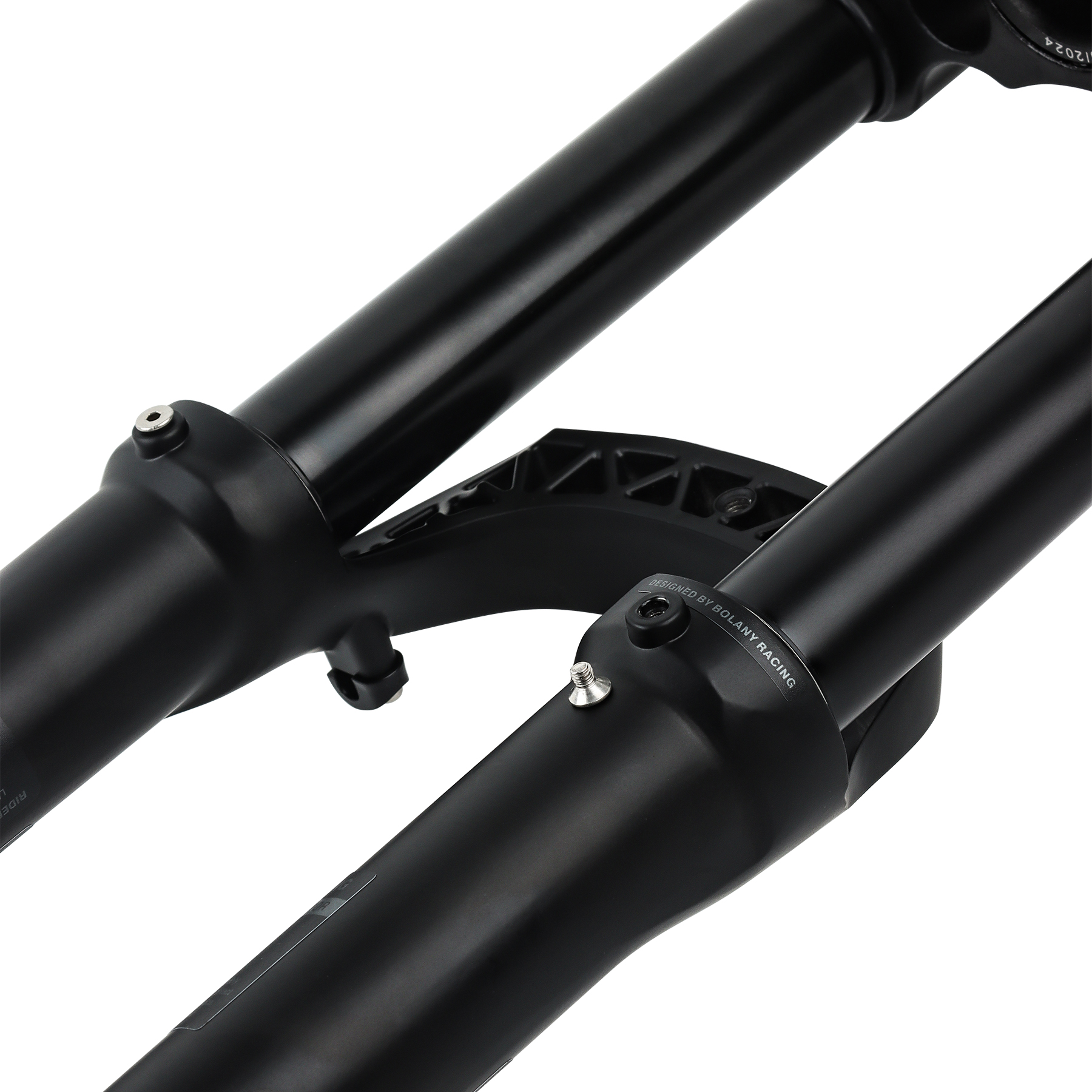

Aluminum Alloy Material Made with lightweight aluminum material, this front fork provides superior strength and durability.

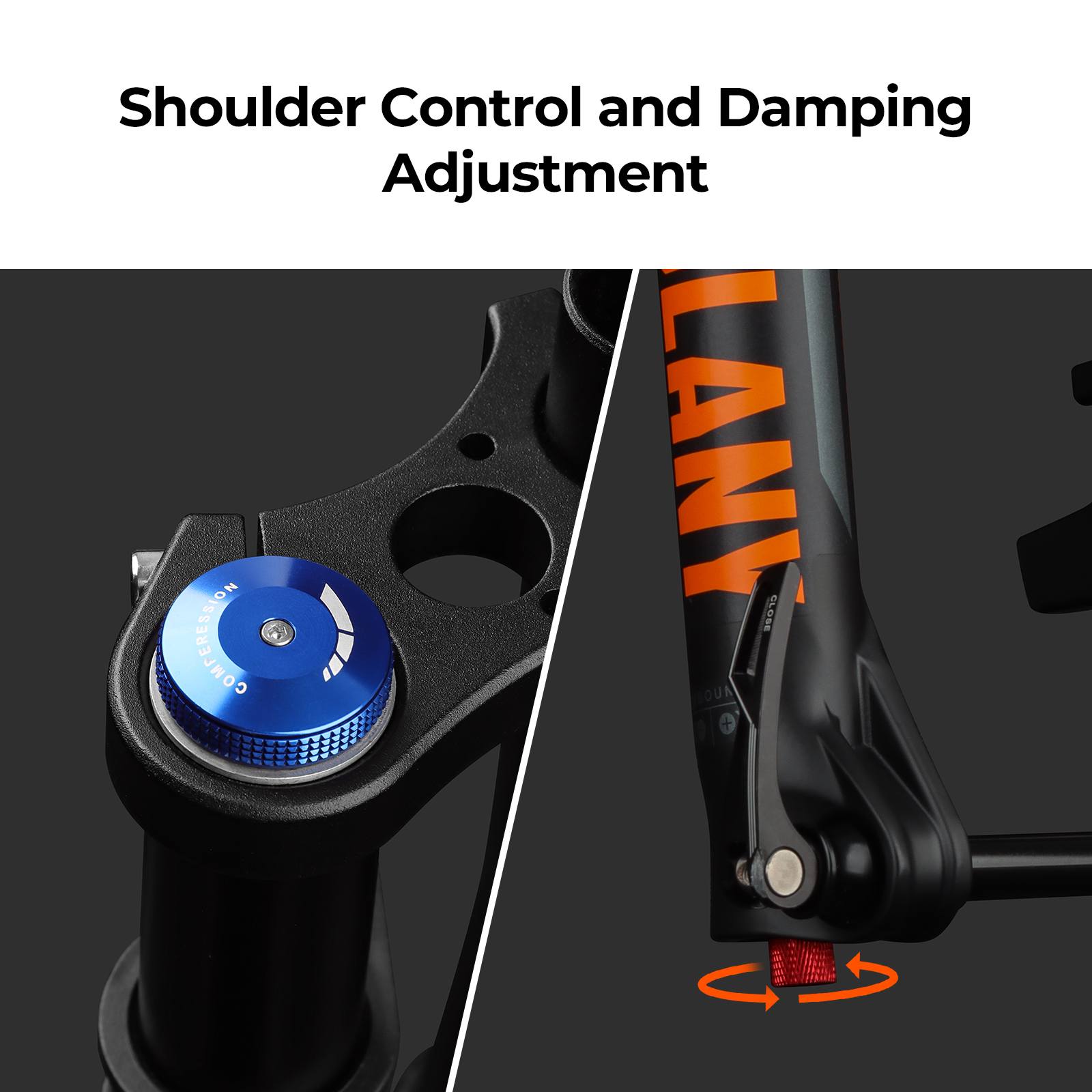

Rebound Damping Adjustment: Easily adjust the rebound damping for better impact absorption and improved.
Compatible with 6/27.5/29-inch Wheels: Adapt to 26, 27.5, and 9-inch tires, this front fork is suitable for various mountain bike configurations.

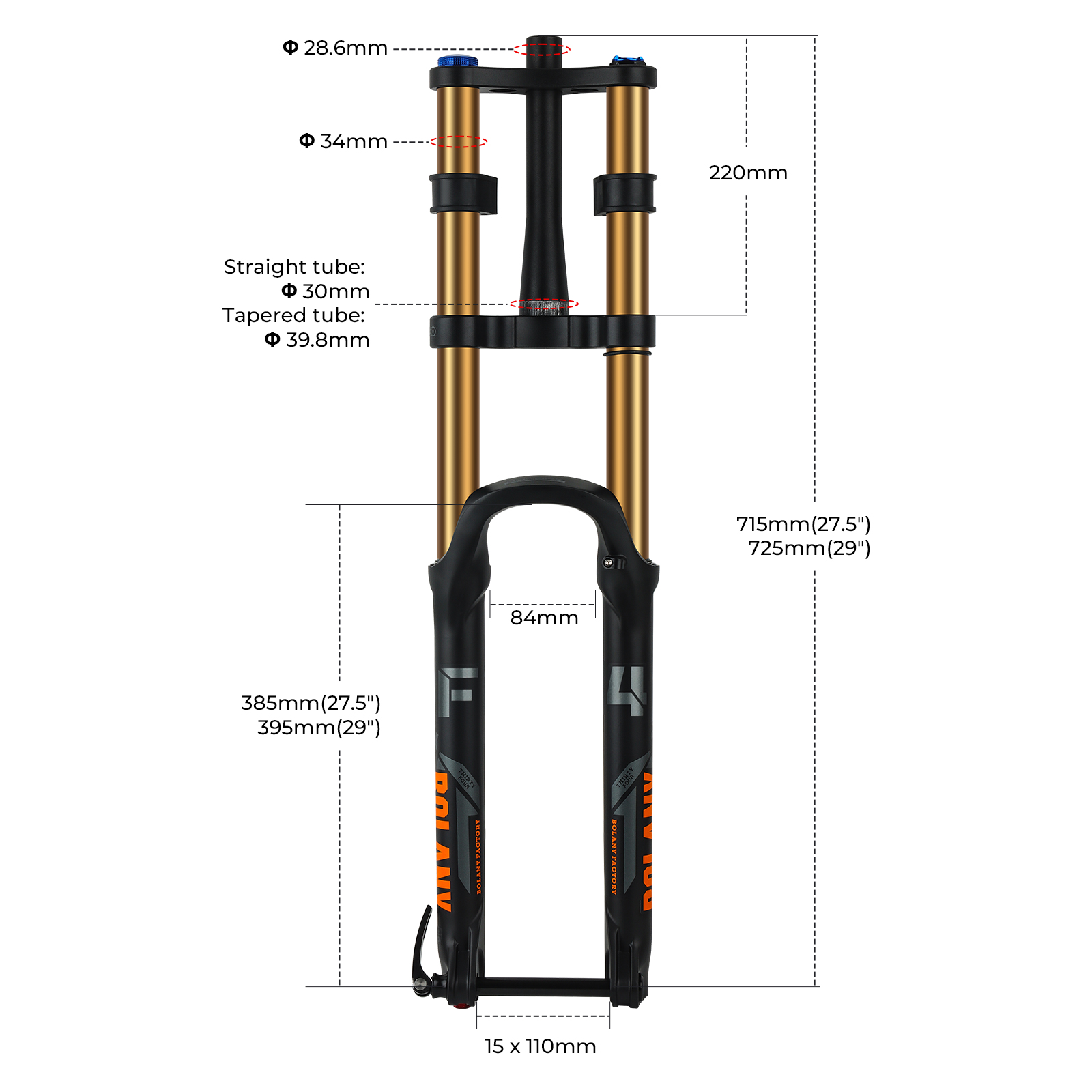

Specifications
Product name

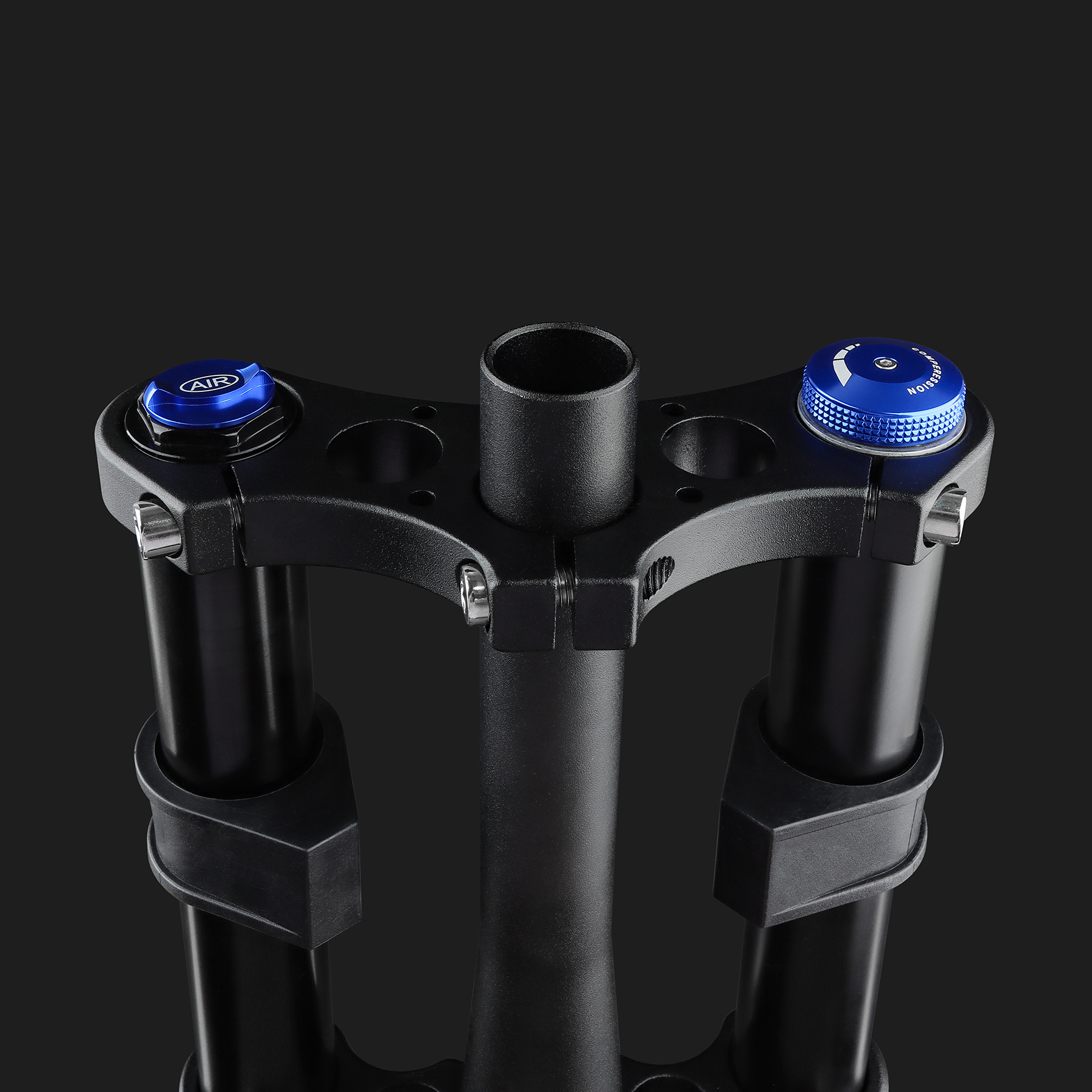

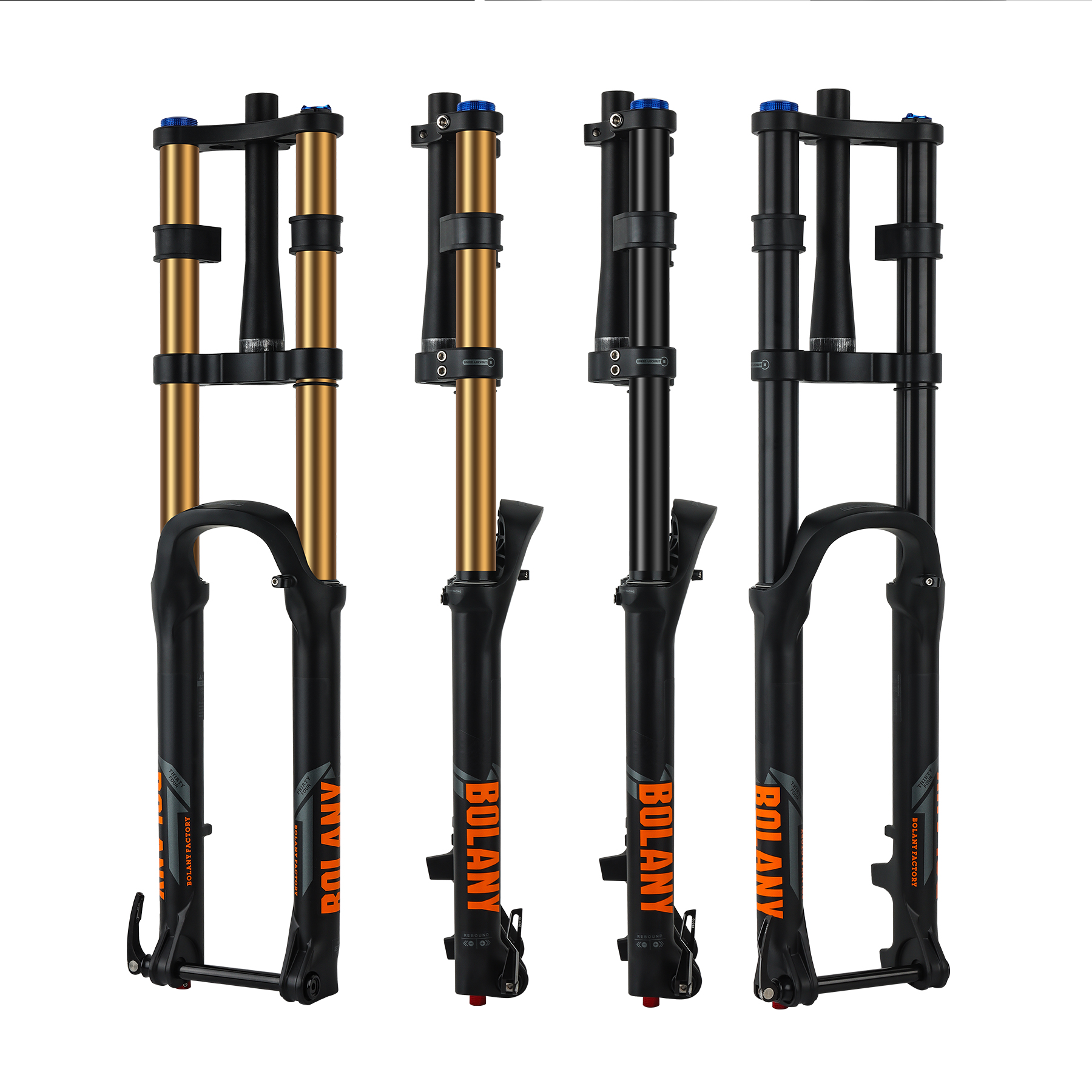

Double shoulder shock front fork
Applicable size
26 inches, 27.5 inches, 29 inches
Travel
175 mm
Type
A-type column disc brake
Steering tube size
1.5 inches (tapered) 1-1/8
Opening file
110 mm

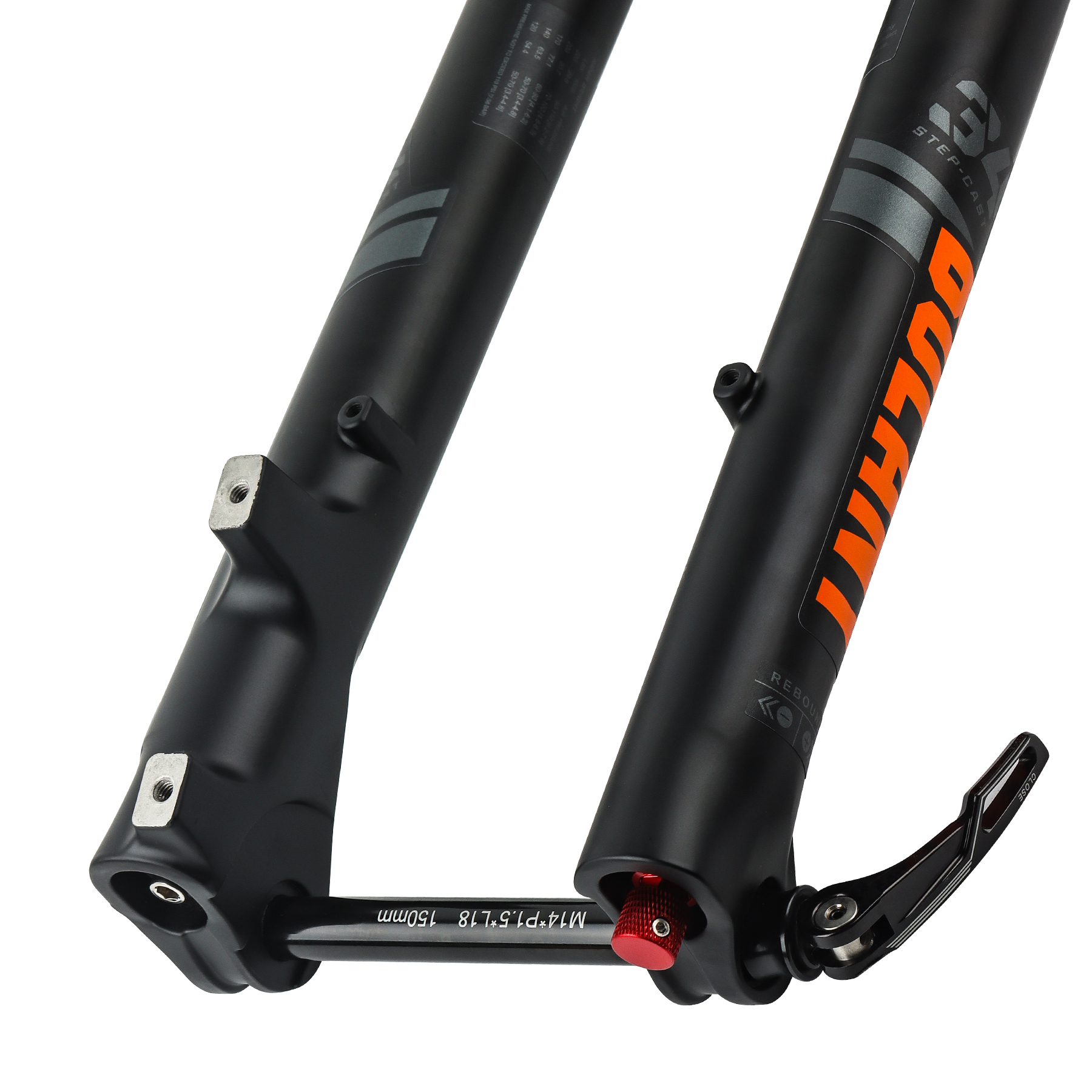

Shaft diameter
15mm
Material
Aluminum alloy
Standpipe
34mm
Steering wheel length
220 mm
Steering wheel diameter
28.6 mm Stand diameter: 39.8 mm
Weight
3000 grams
Service
We provide PDF documents for installation instructions for various products.
You can check out our installation and maintenance videos for FrontFork.123
TZA323
2024-2025 Catalog

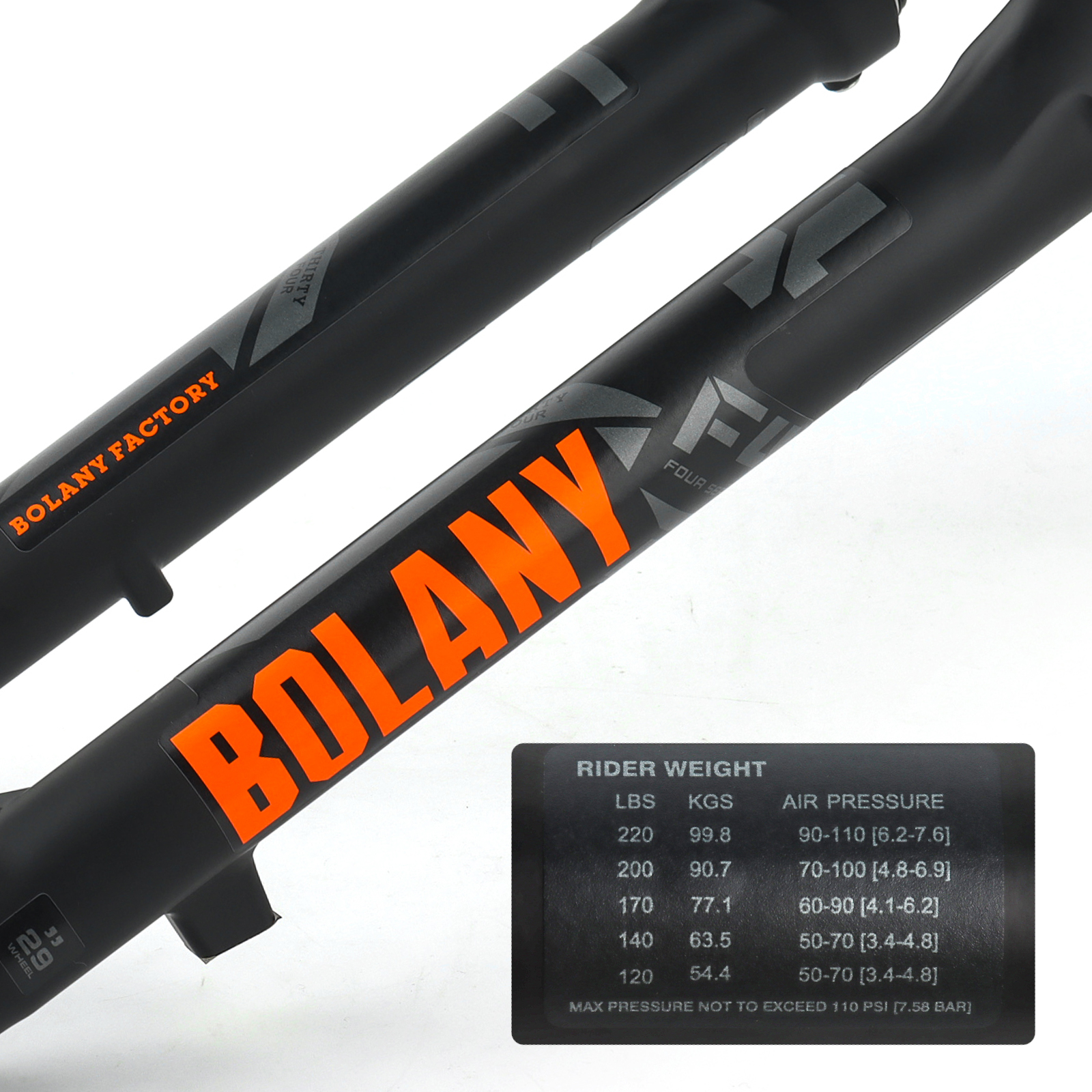

Learn how to quickly set sag, air spring pressure, compression adjustments, rebound adjust, additional tuning options and more.
The recommended settings in this tuning guide are designed to be a starting point, in order to get you out on your first ride in as few steps as possible.
