STG489
DESCRIPTION

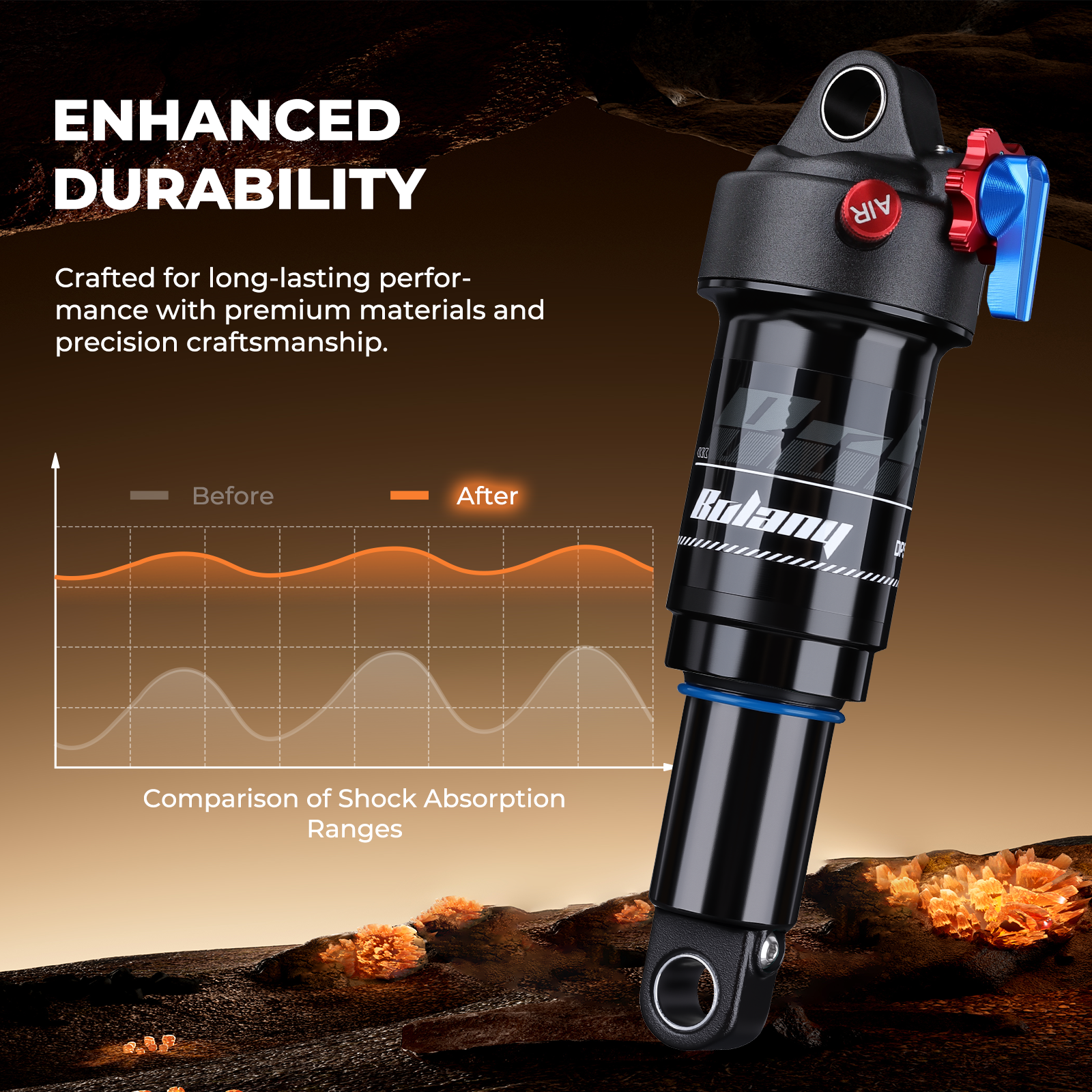

Reinforced durability is high because it uses high-strength materials and precision craftsmanship to create lasting performance. Riding is not afraid of rugged, especially suitable for bumpy and flat road riding, can effectively absorb subtle impact vibration, enhance riding comfort, and easily cope with various downhill challenges.
FEATURES
Adjustable damping, compression adjustment, air pressure soft and hard adjustment, shock lock.
Piston type - air pressure type Sensitive to complex terrain perception is smooth, not bumpy.

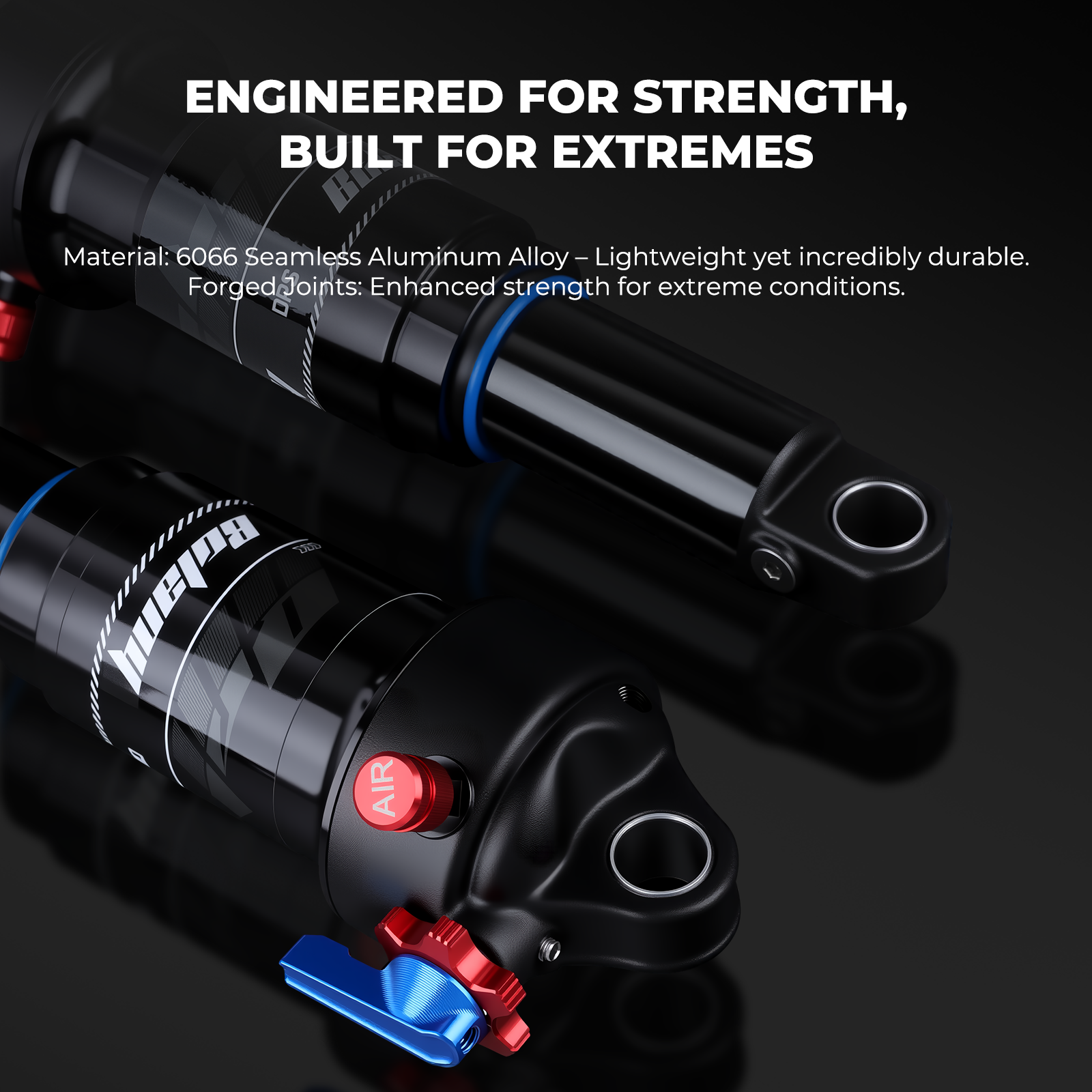

6066 seamless aluminum alloy - lightweight but extremely durable, designed for strength, built for competition.

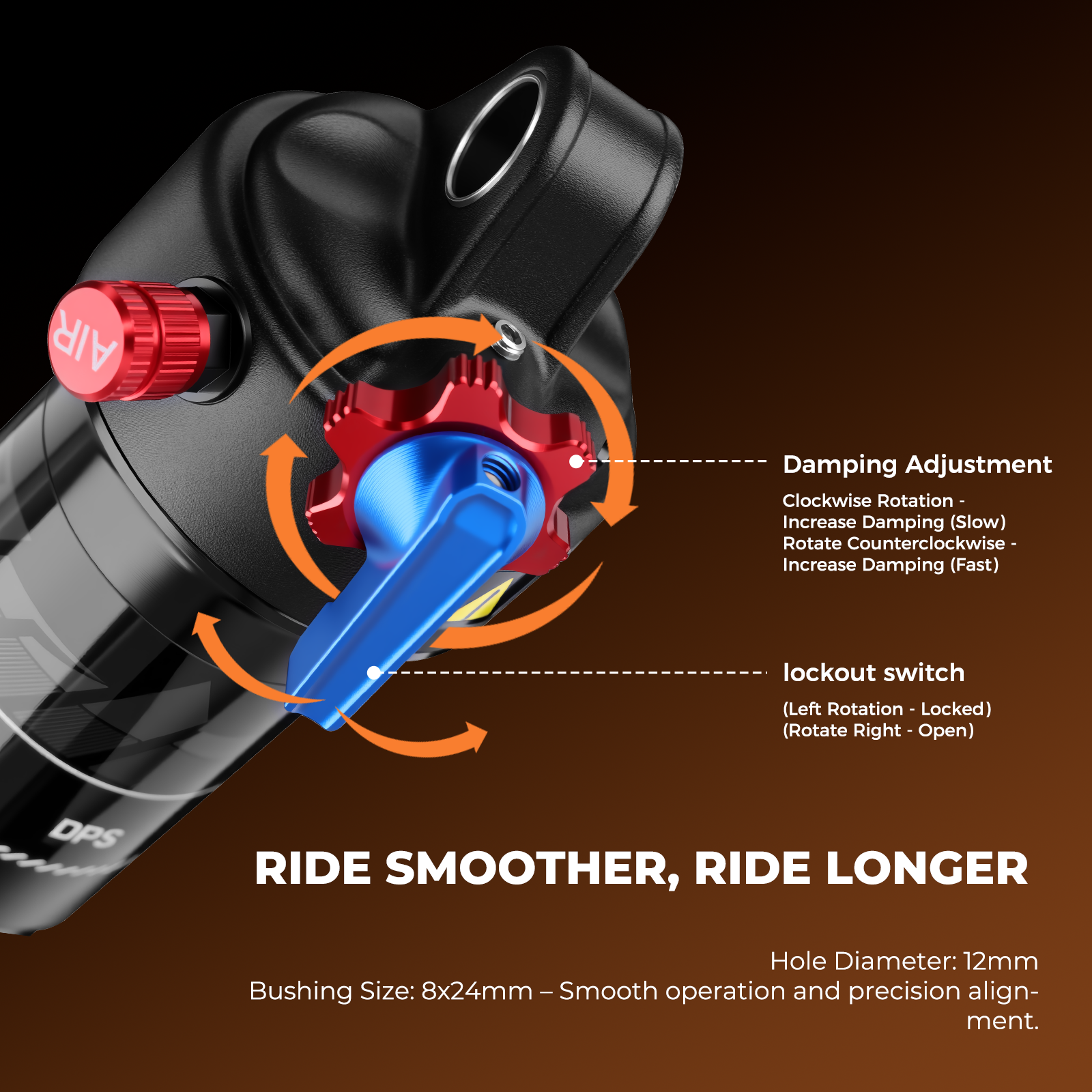

Damping adjustment rotary knob adjustment damping rebound speed for a smoother ride, durable.
Specifications
Product Name
Soft Tail Damping Rear Cushion

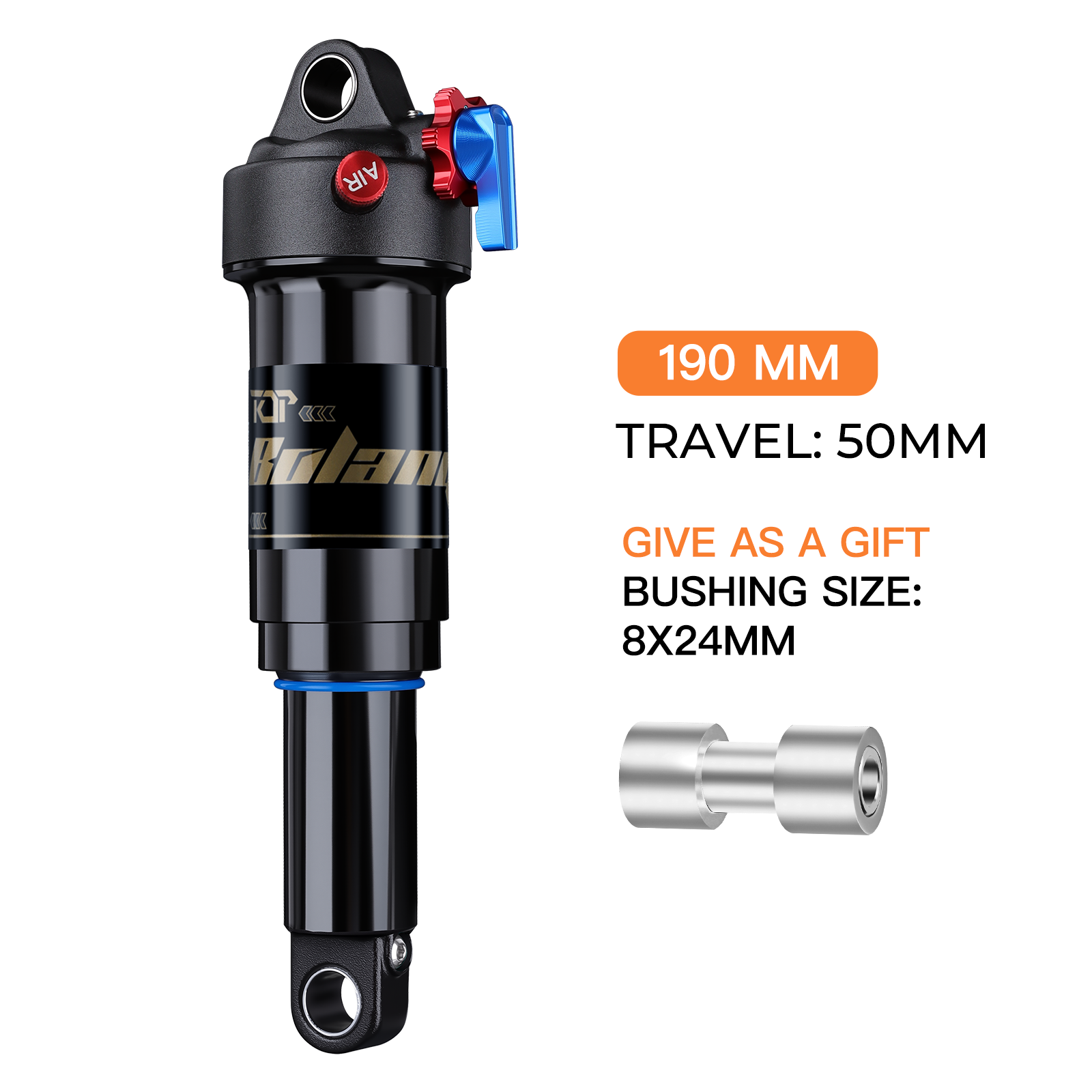

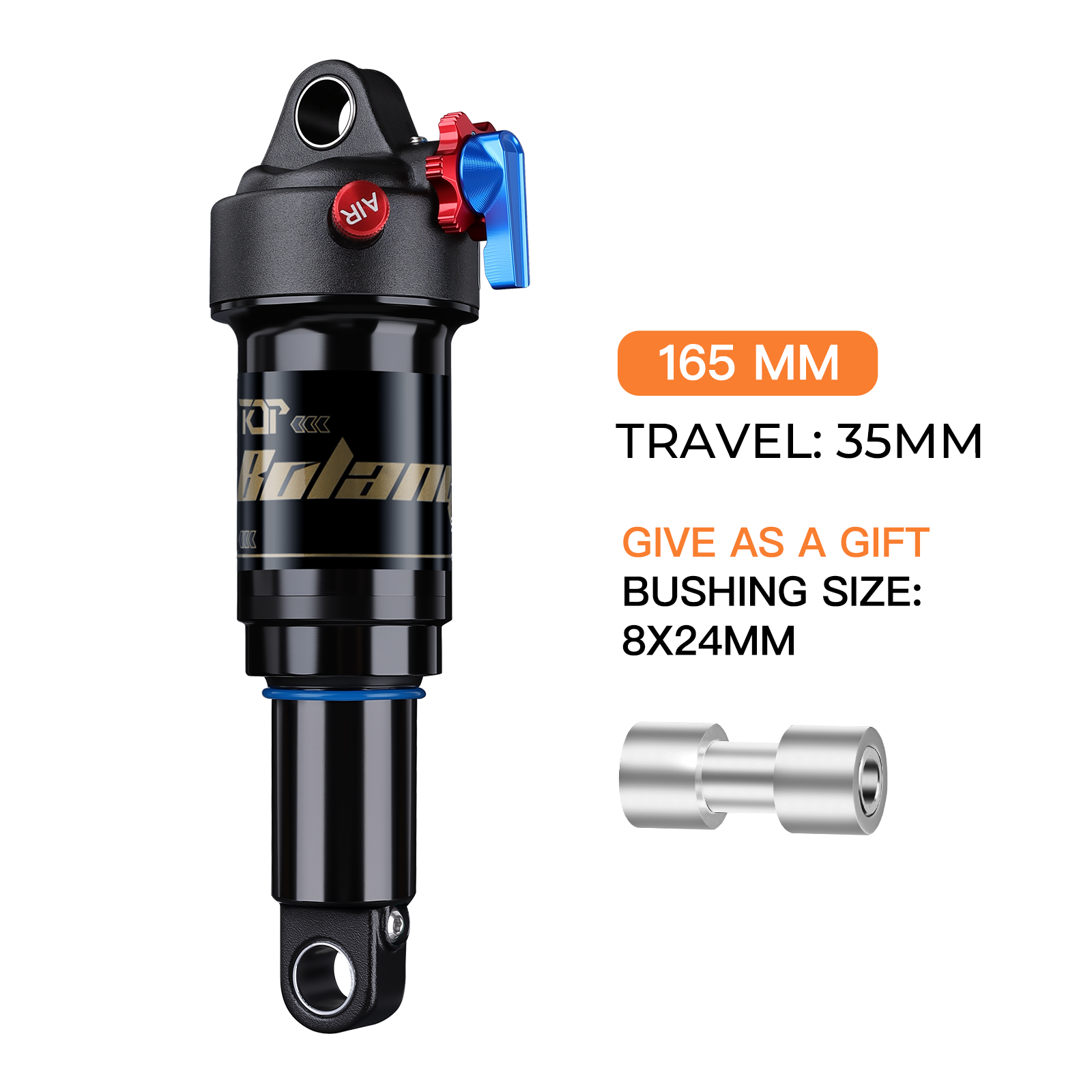

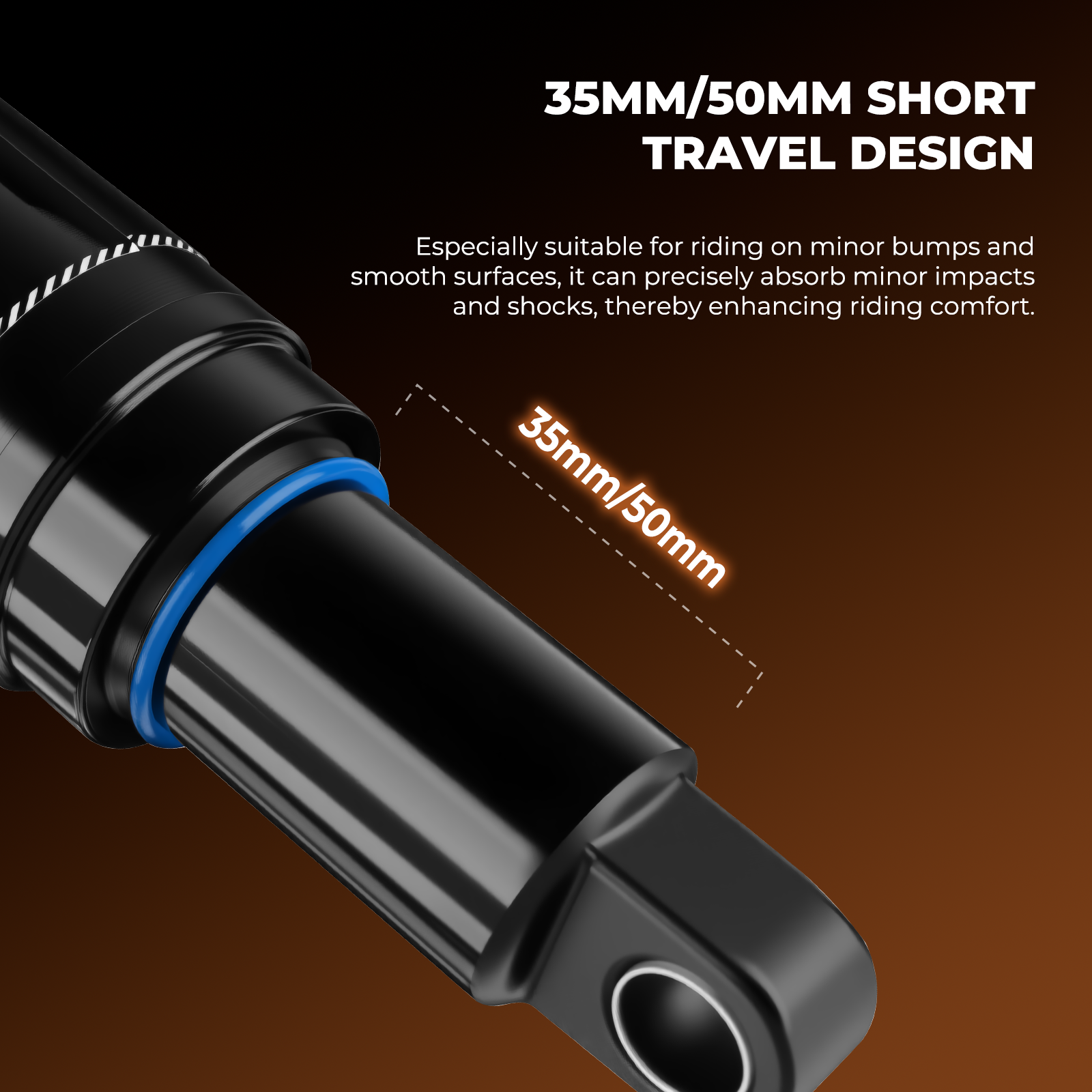

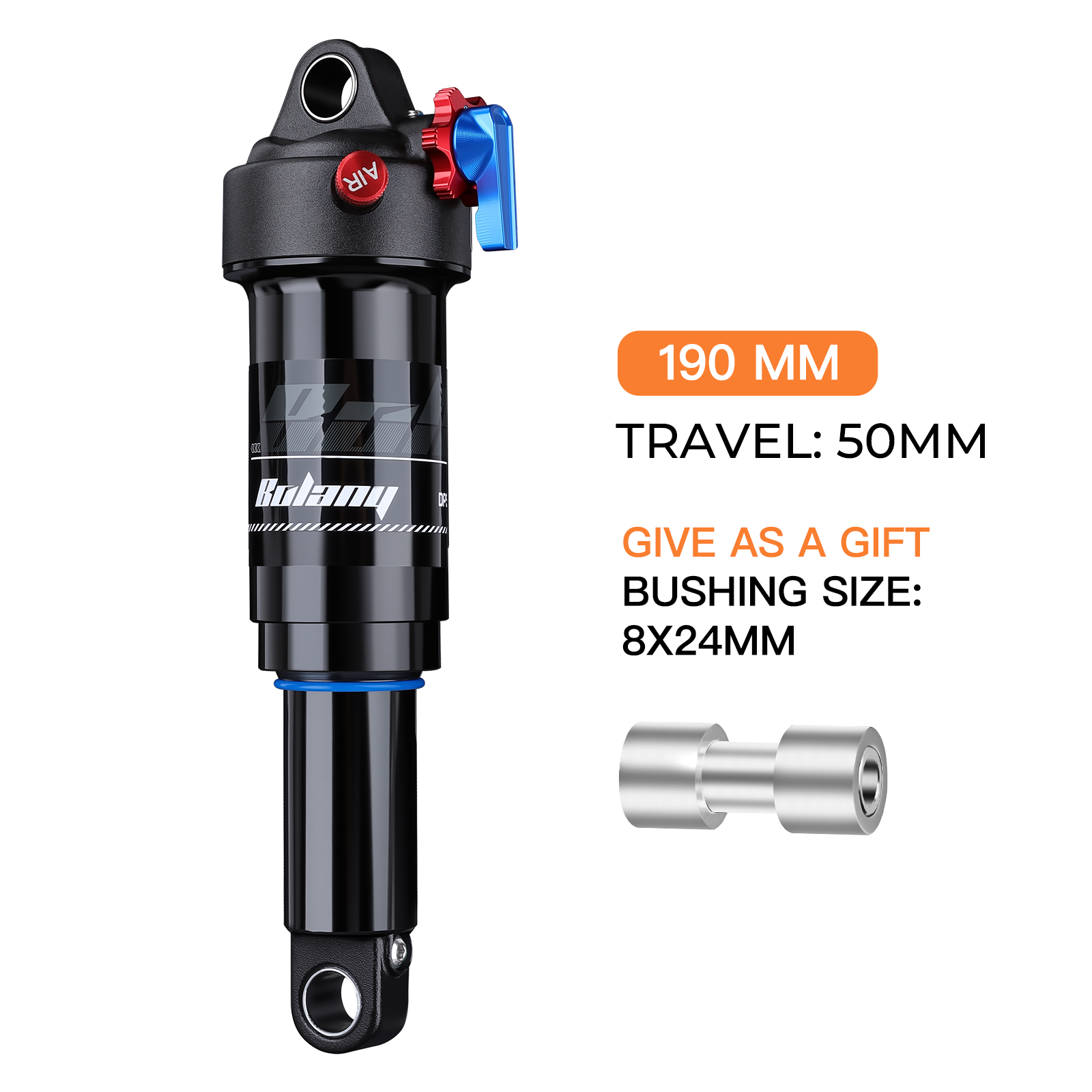

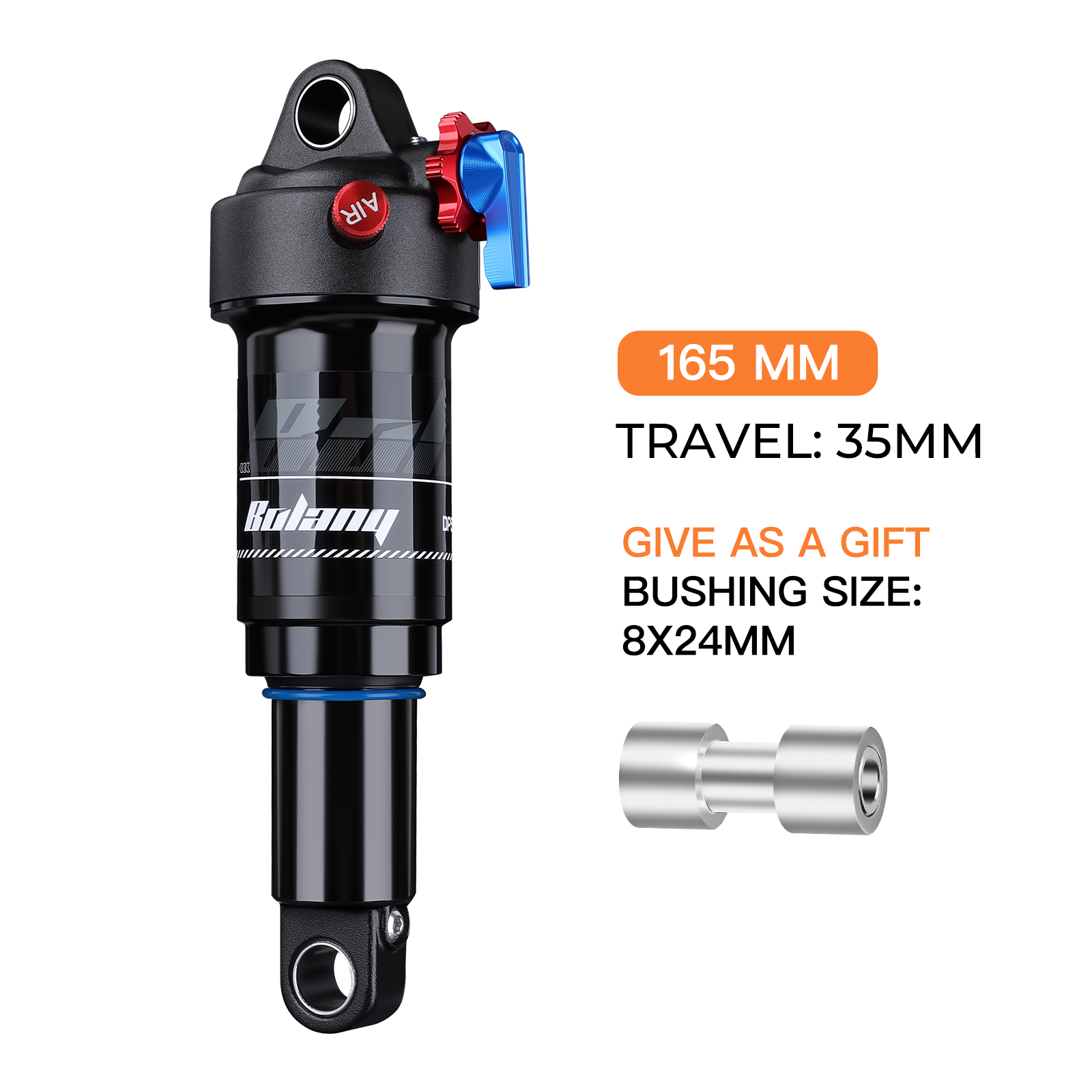

Travel length
35mm/50mm

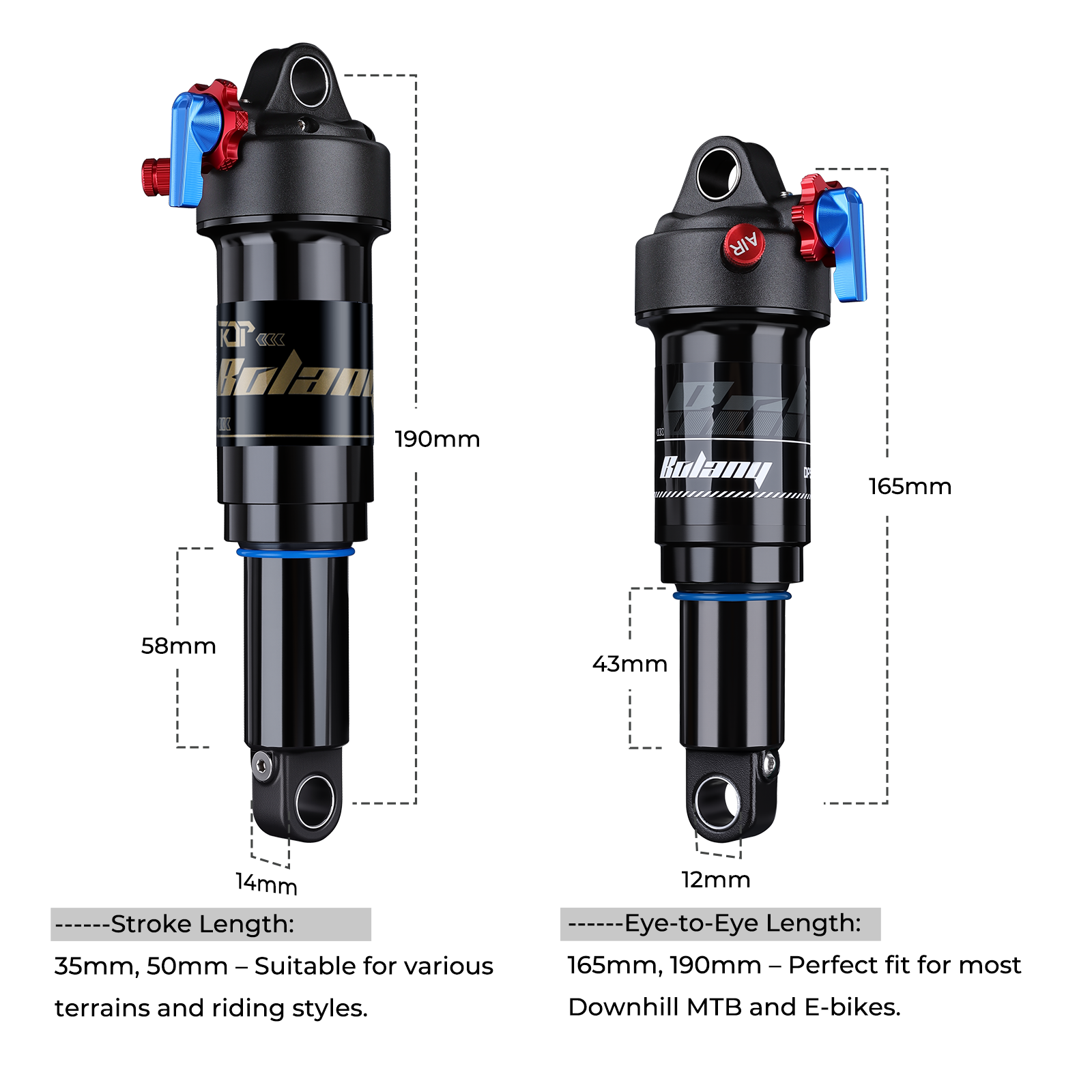

Mounting hole pitch
165mm/190mm
Damping
Supported
Weight
280g/300g
Mounting hole inner diameter
12mm
Bushing size
8mm*24mm
Piston Type
Air Shock
Maximum Air Pressure
140-25 psi, recommended around 150
Material
6066 Seamless Aluminum Alloy, Forged Fittings
Applicable to
Soft Tail Frame/Downhill Mountain Bike/Electric Downhill Bike
Service
We provide PDF documents for installation instructions for various products.
You can check out our installation and maintenance videos for FrontFork.123
STG489
2024-2025 Catalog
Learn how to quickly set sag, air spring pressure, compression adjustments, rebound adjust, additional tuning options and more.
The recommended settings in this tuning guide are designed to be a starting point, in order to get you out on your first ride in as few steps as possible.
