PD402
DESCRIPTION
The combination of locking shoes and pedals allows for full power from both feet to be exerted during cycling, with one foot pushing down while the other is pulling up, ensuring a sealed bearing that is both water and dust resistant, thus increasing the frequency and speed of the pedaling motion. The high-strength nylon material ensures a longer lifespan.
FEATURES
Road bike pedal lock pedal - self-locking pedal, easy and labor-saving, to improve the pedal frequency.
The standard thread caliber, is not easy to loosen during cycling, makes cycling more stable.
The characteristics of the lock pedal are mainly to control the pedal, step, pull, and lift, then better allocate the power of both feet.
Embedded, exit adjustable tension design, can be freely adjusted embedded and exit tension design with a 2.5mm hex.
Specifications
Product Name
Road Lock Pedal
Material
Aluminum Alloy Nylon

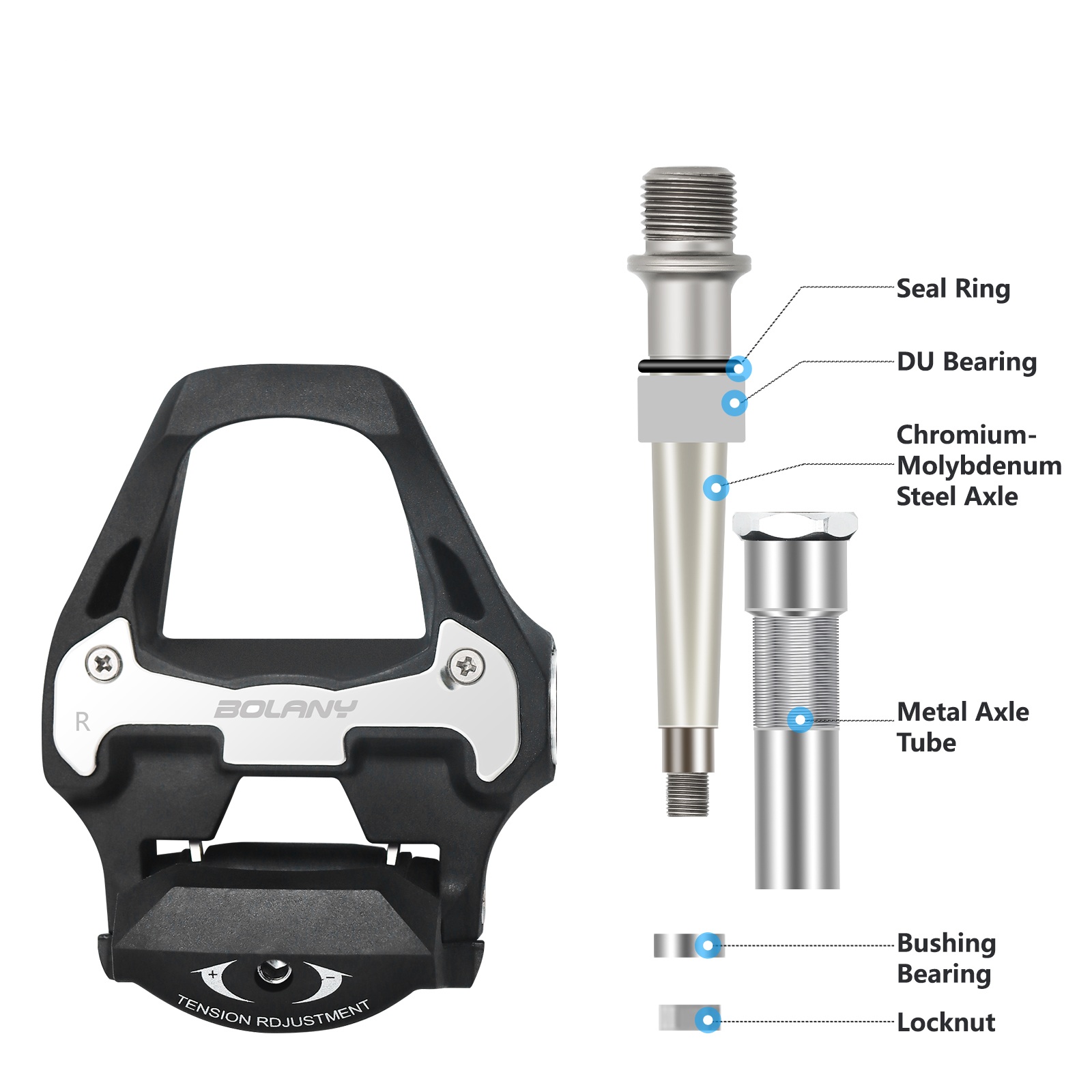

Bearing
DU Ball Bearing

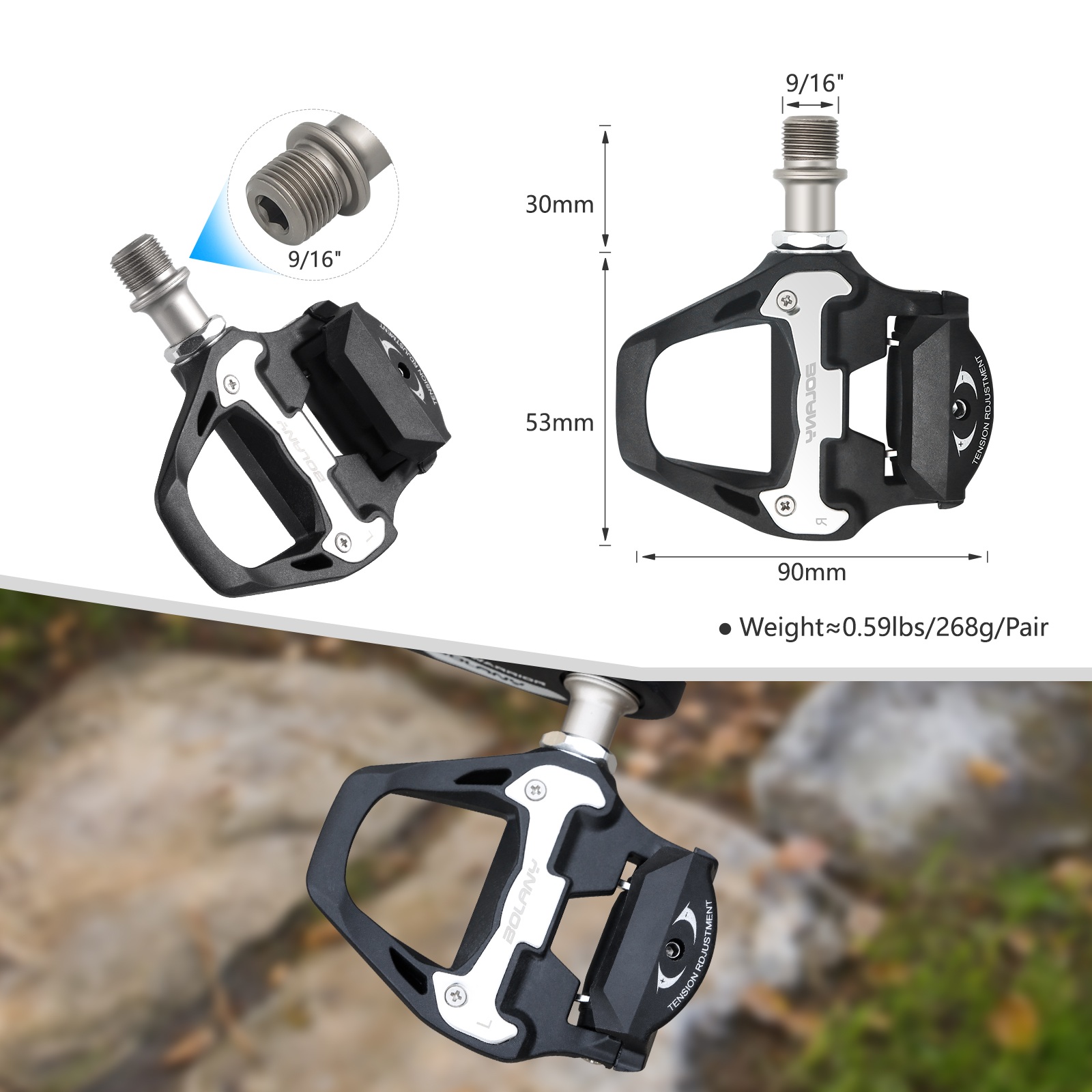

Size
83mm*90mm*20mm
Shaft
Chromium Molybdenum Steel, 14mm
Applicable to
Road bike 14mm shaft
Color
Black
Weight
about 268g/pair
Features
Widened stress area design, replaceable studs, hollowout design.
