FKA512
DESCRIPTION
This bicycle fork adopts lightweight design, it has strong tube diameter which can match 99.99% of the frames on the market, and has multifunctional compatibility, it can use manual locking/remote locking two choices to have more high-pressure shock absorption capabilities.
FEATURES

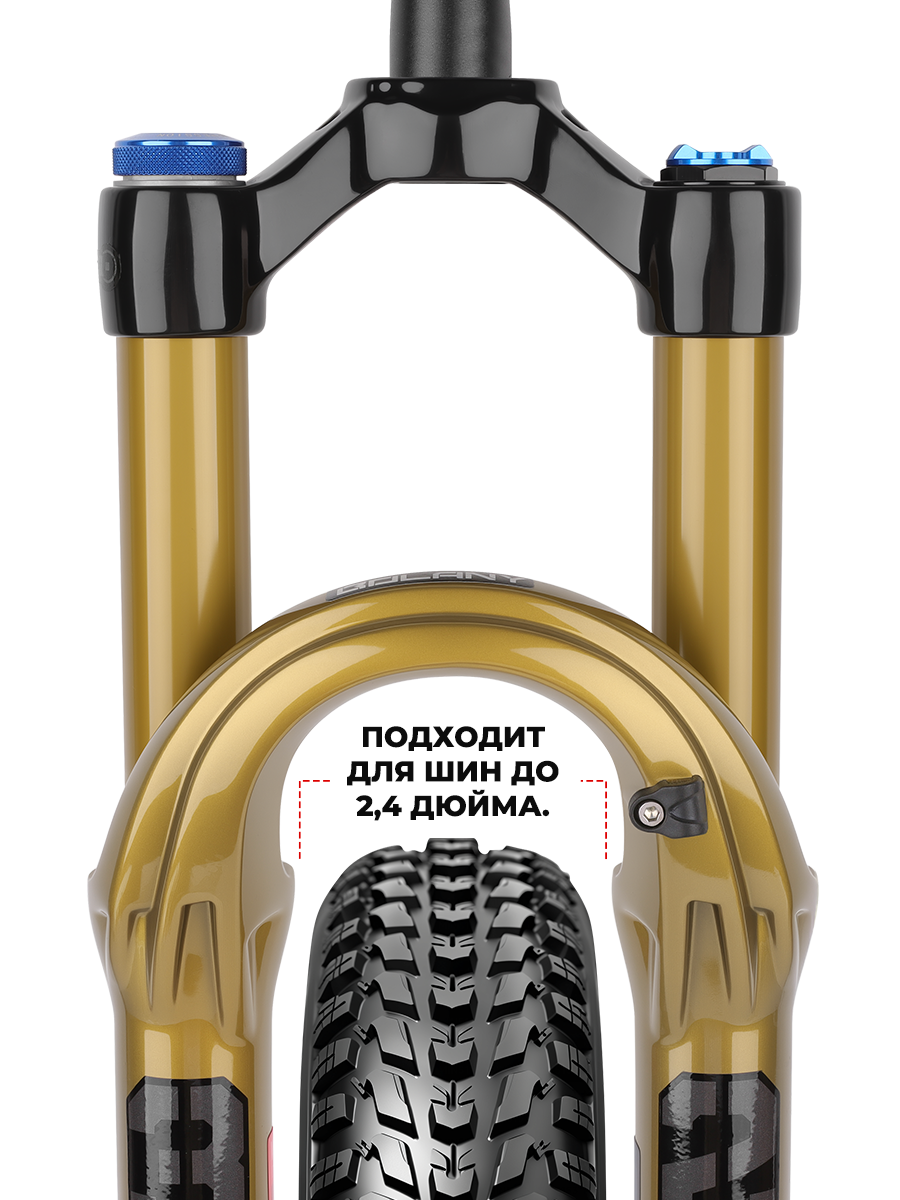

Universal compatibility: Suitable for various hubs of 26/27.5/29 inches, perfect for a variety of ATV configurations.
Quick unlock system with 9x100mm for easy replacement and quick adaptation to different environments.

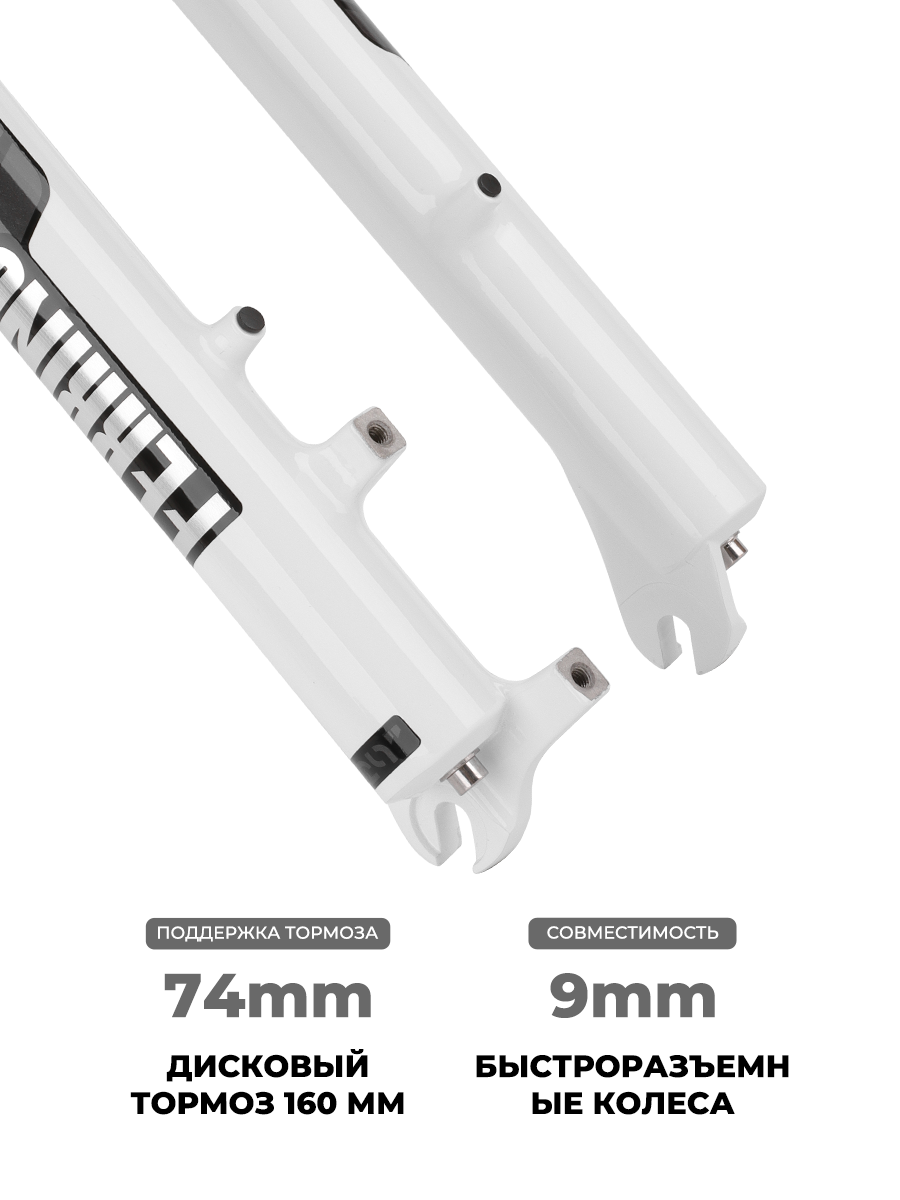

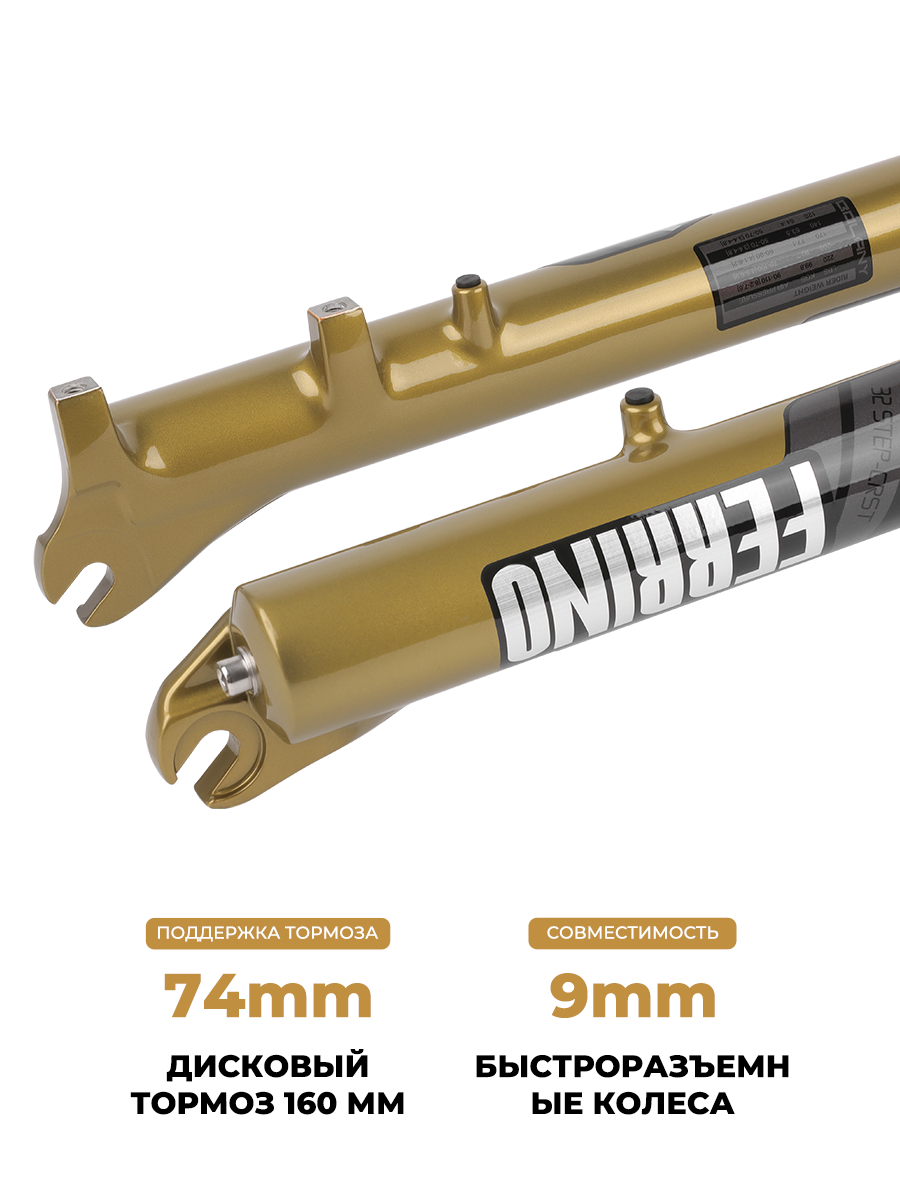

Support disc brakes: Specially designed for disc, ensuring compatibility and reliable performance.
Provide 120mm of suspension to ensure optimal shock absorption and enhance the driving experience.

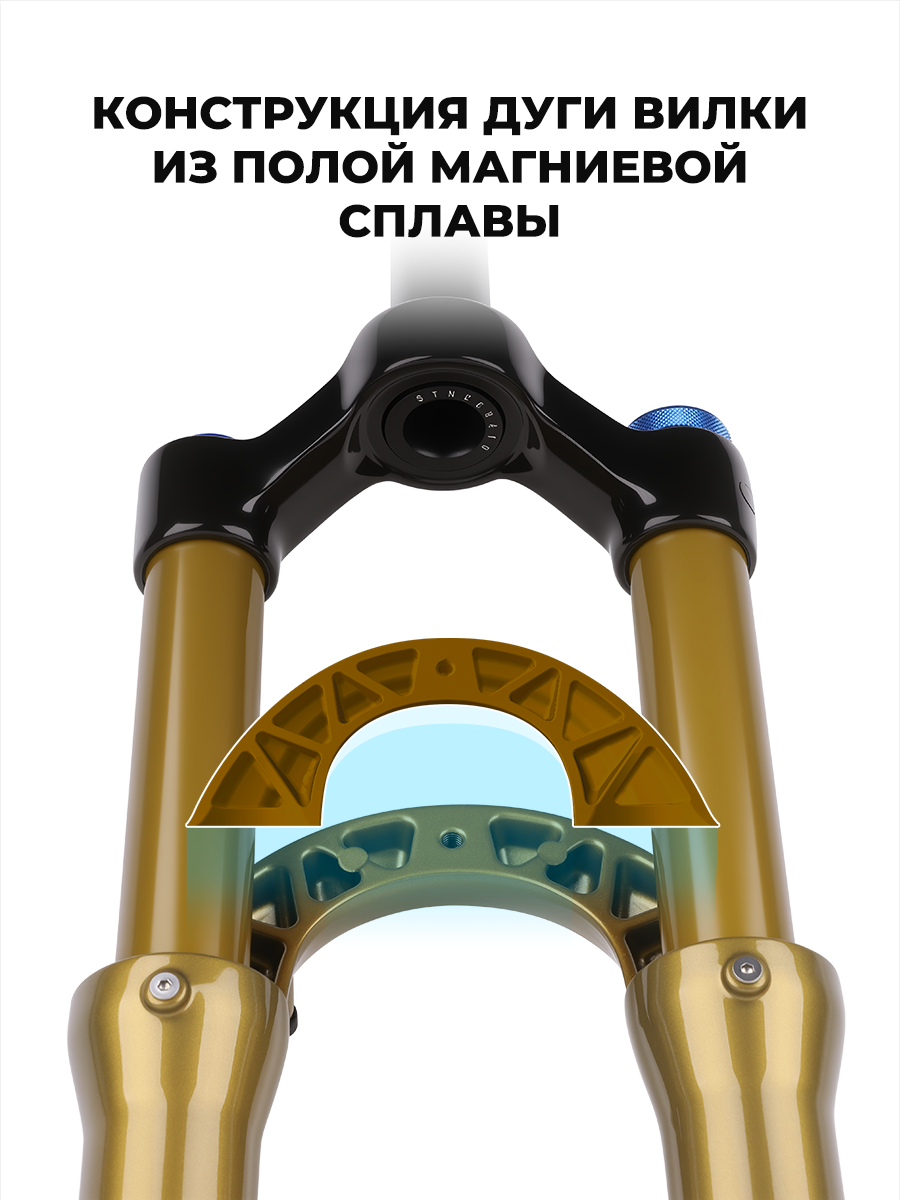

weight magnesium alloy: Provide higher durability and excellent response through its magnesium alloy.

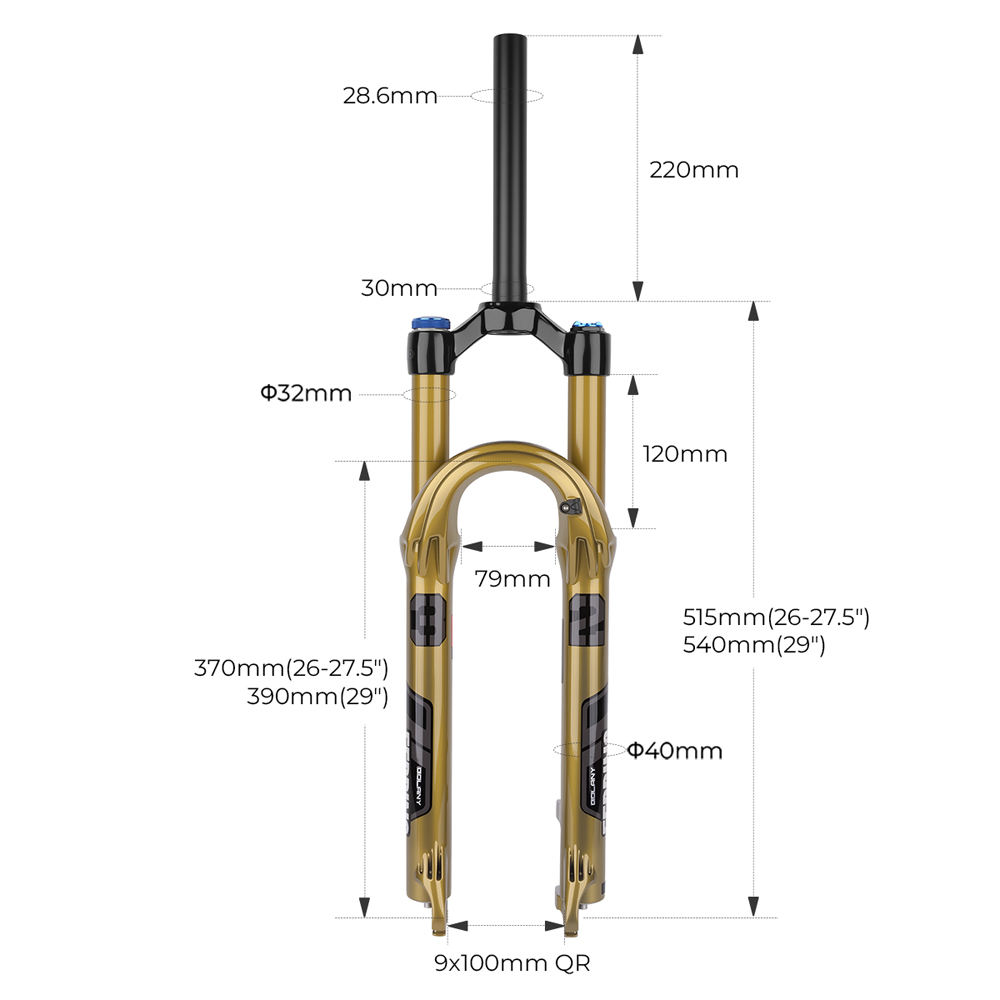

Specifications
Product name
Air pressure front fork
Material
Aluminum alloy Magnesium alloy
Suitable size
26 inches/27.5inches/29 inches

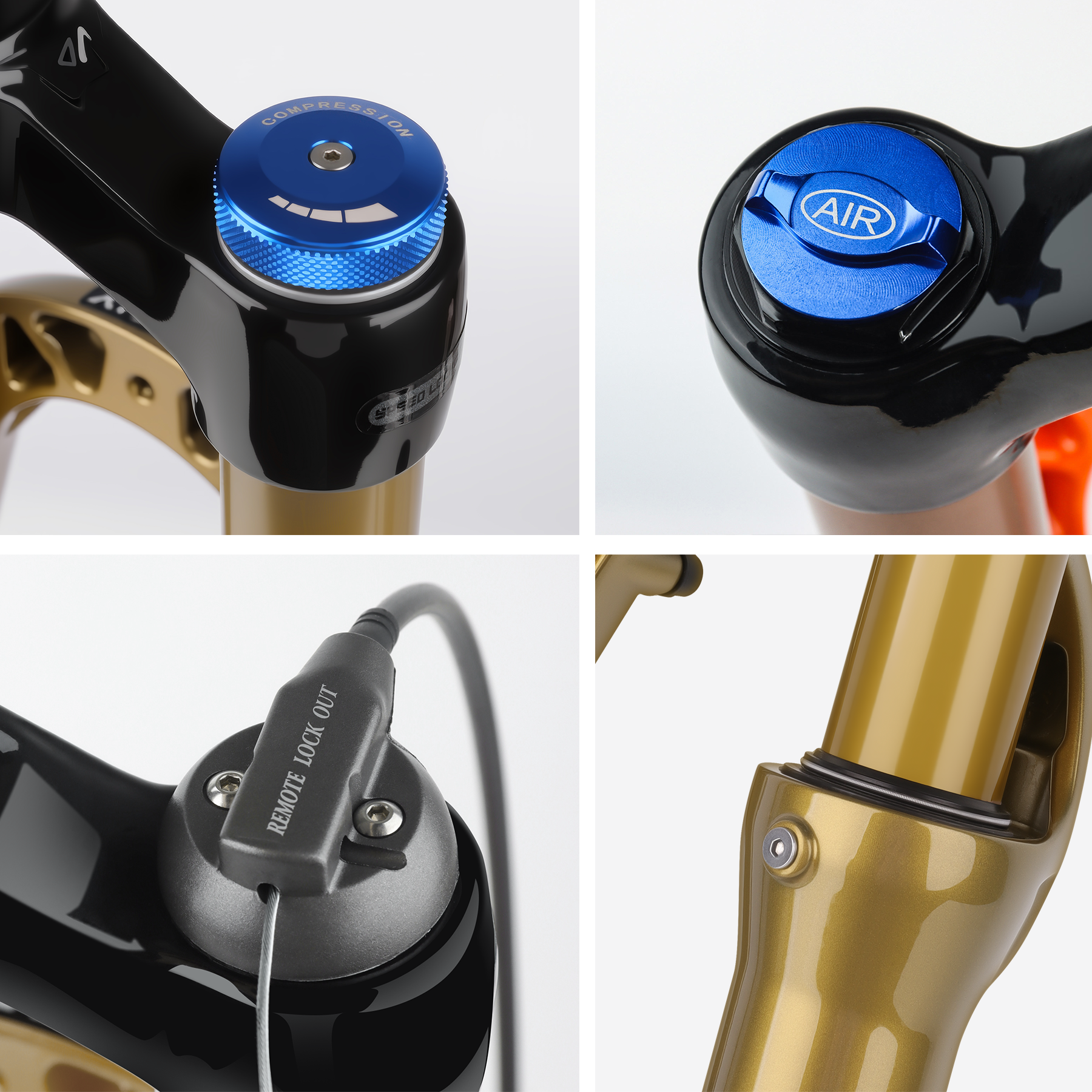

Lock device
Fork shoulder control/Lead control

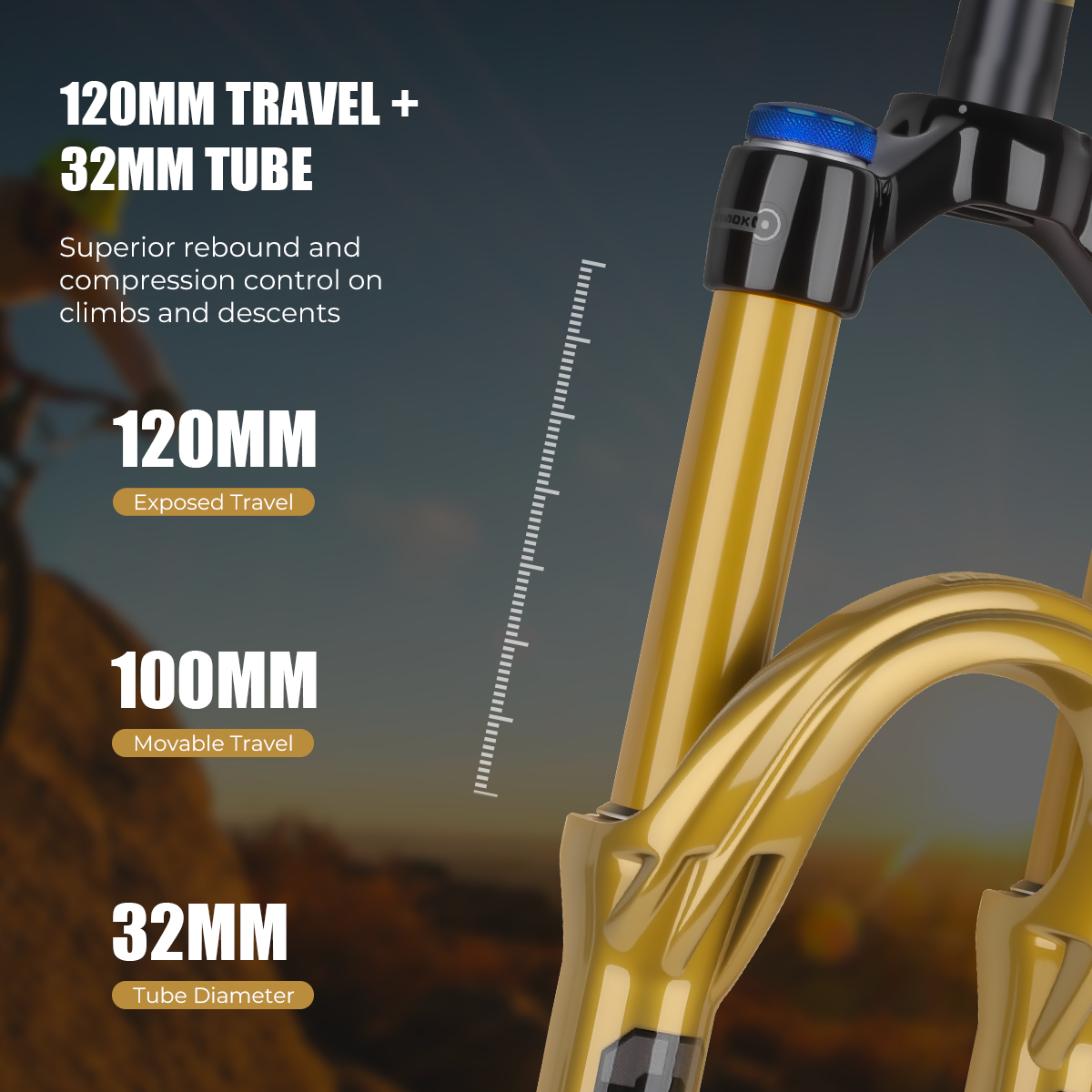

Travel
Exposed 120mm/Movable 100mm
Em size
Straight stem 28.6 mm
Fork leg size

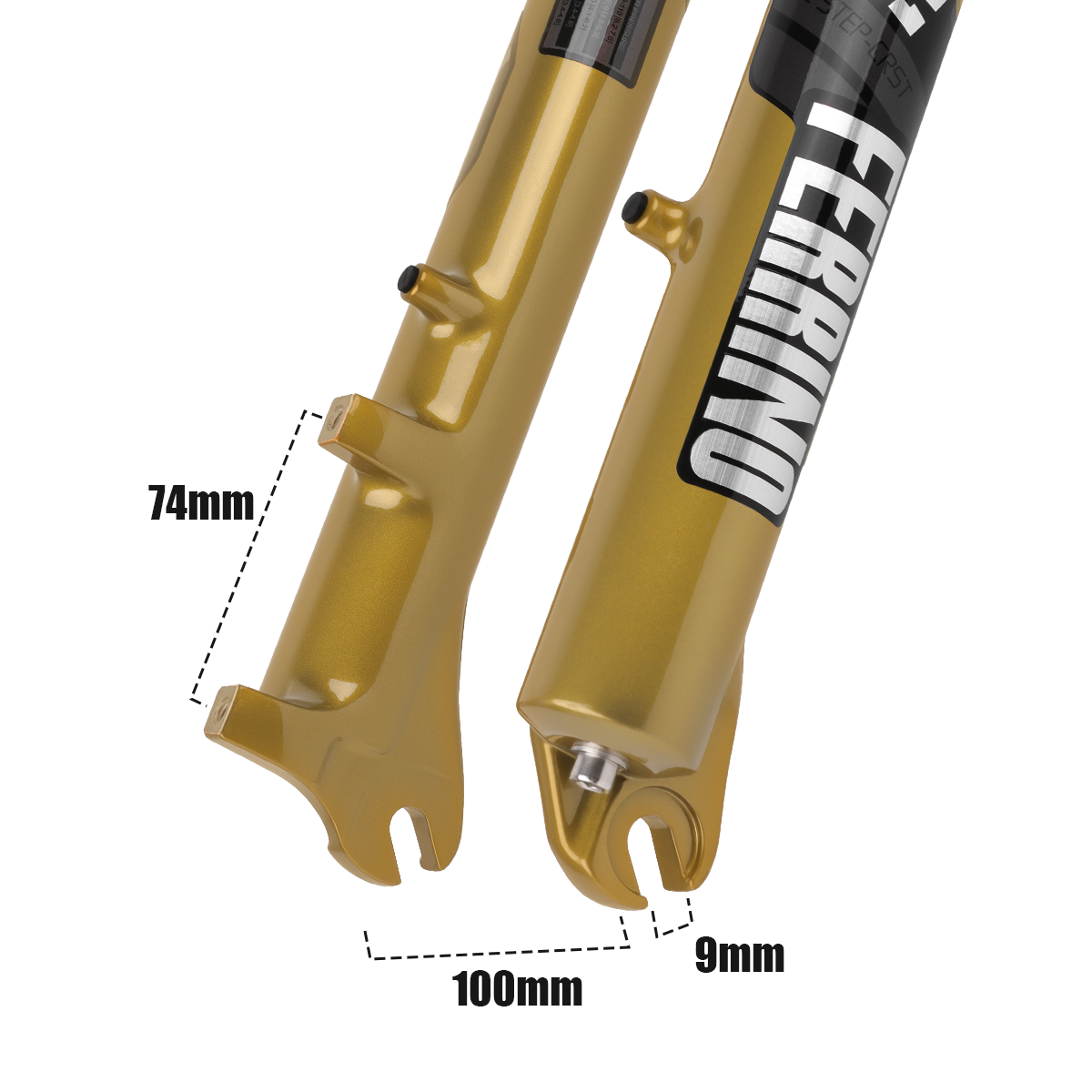

9x100mm (quick release)
Features

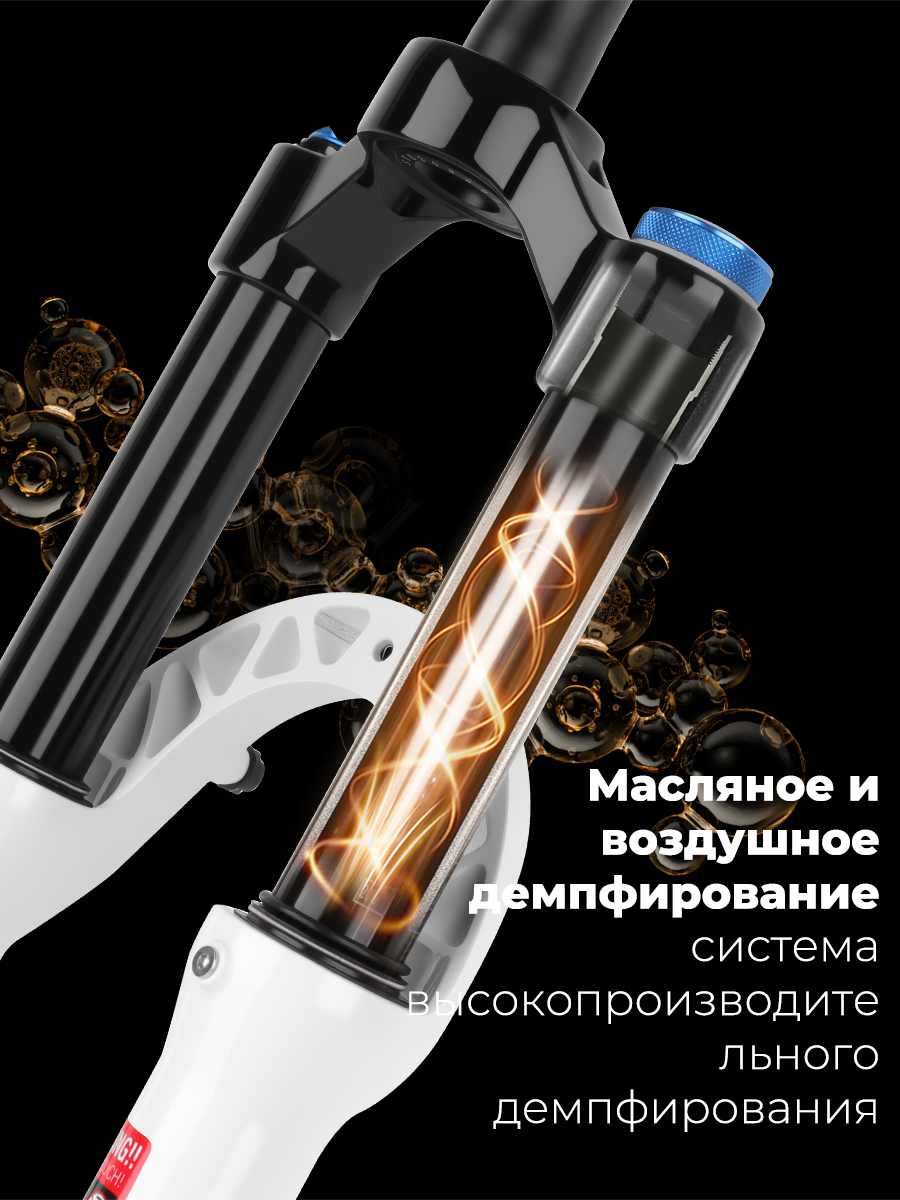

Air pressure shock absorption
Weight
1850 grams

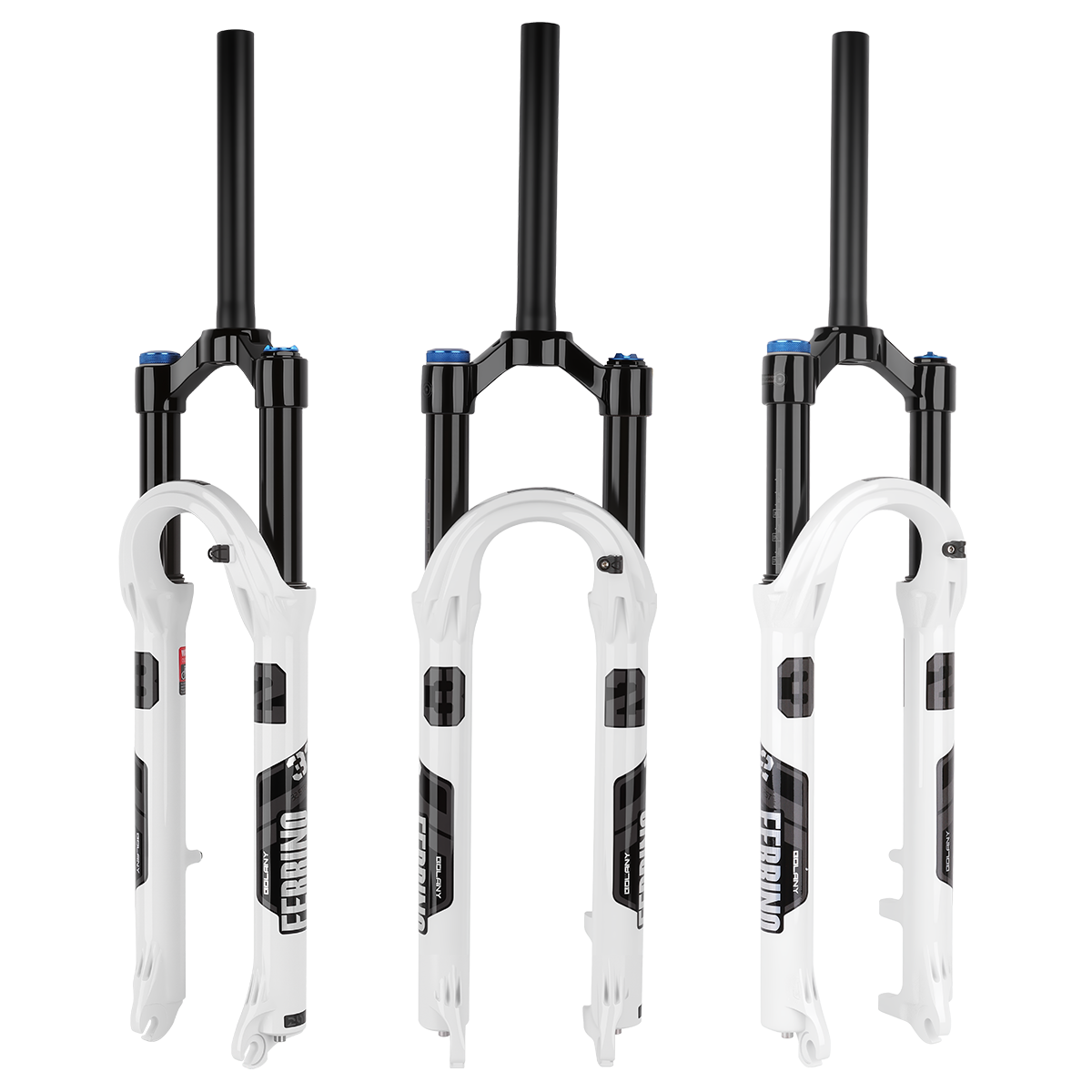

Color
Gold/White
Service
We provide PDF documents for installation instructions for various products.
You can check out our installation and maintenance videos for FrontFork.123
