FKA503
DESCRIPTION

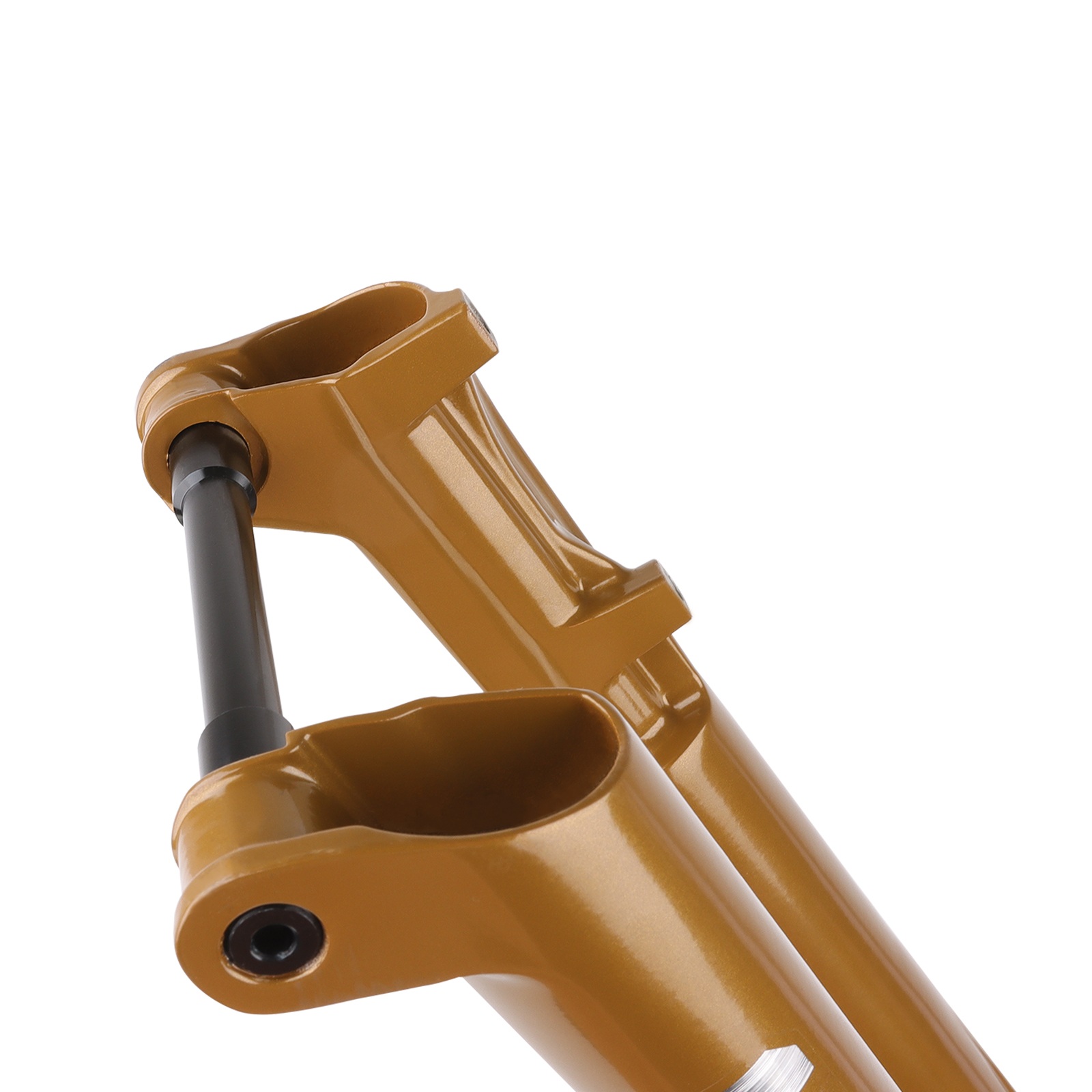

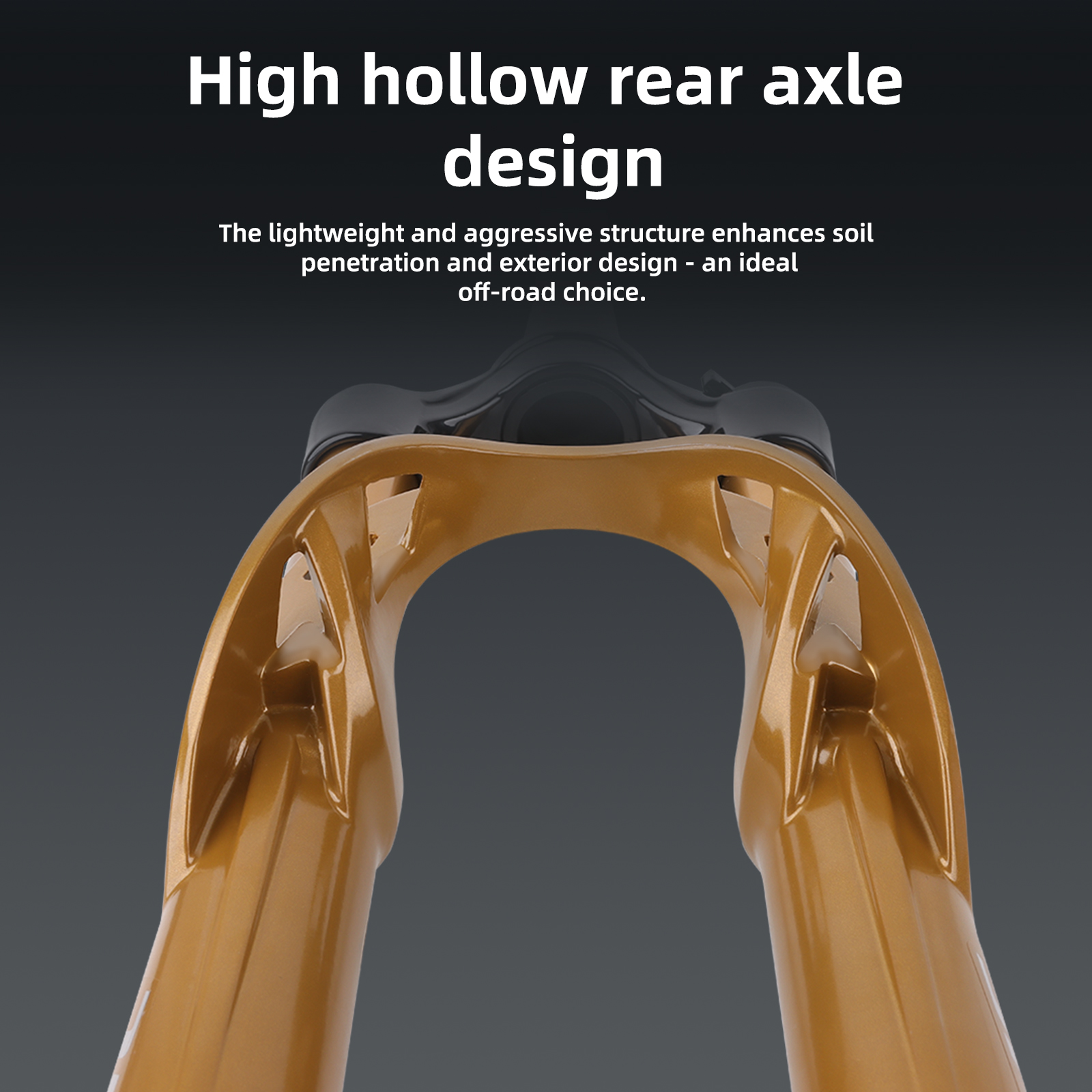

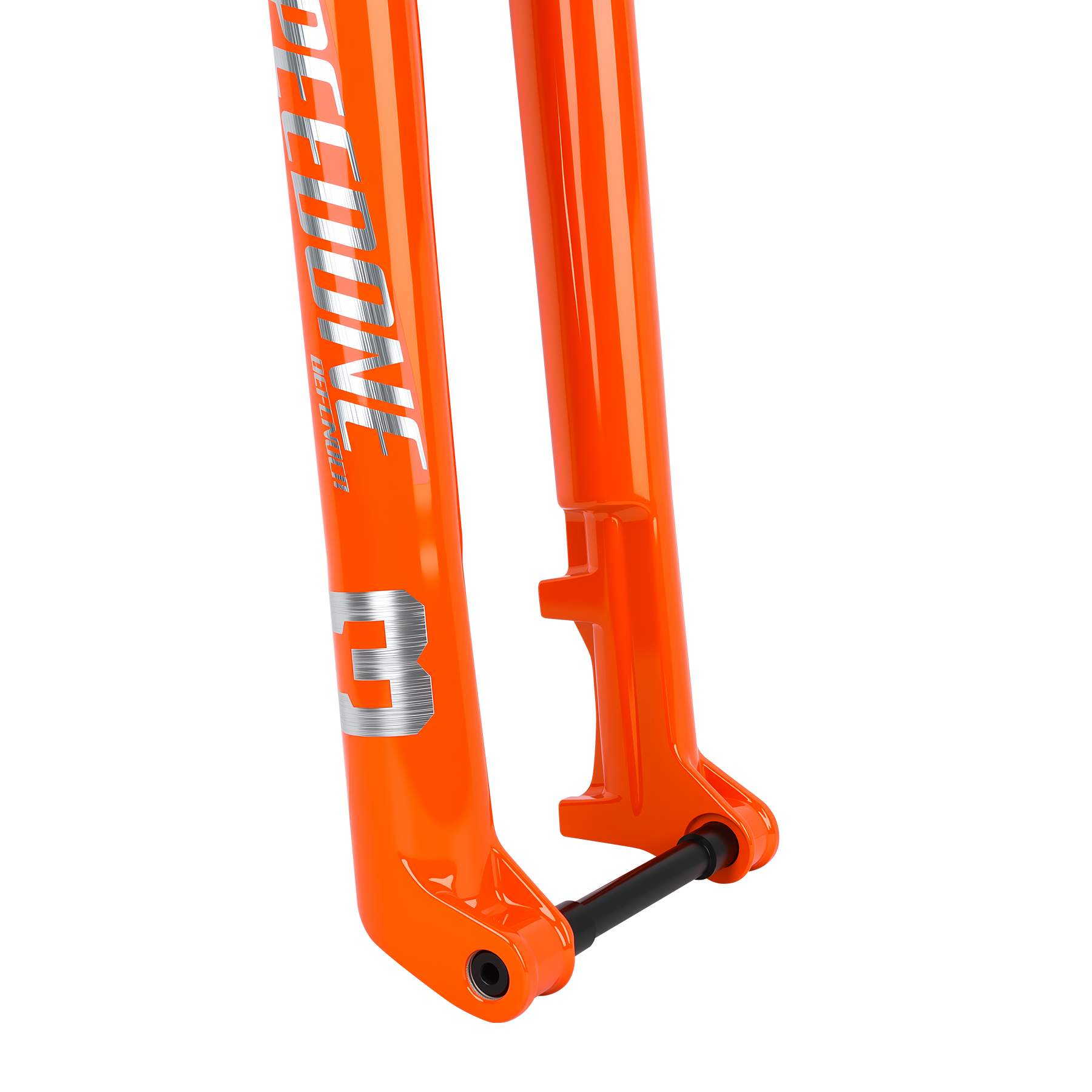

Rear axle air pressure front fork, — designed for off-road and mountain biking, air pressure damping. BOOST dropout, high open rear ax design, through CNC precision cutting process to achieve a lighter overall weight without sacrificing strength.
FEATURES

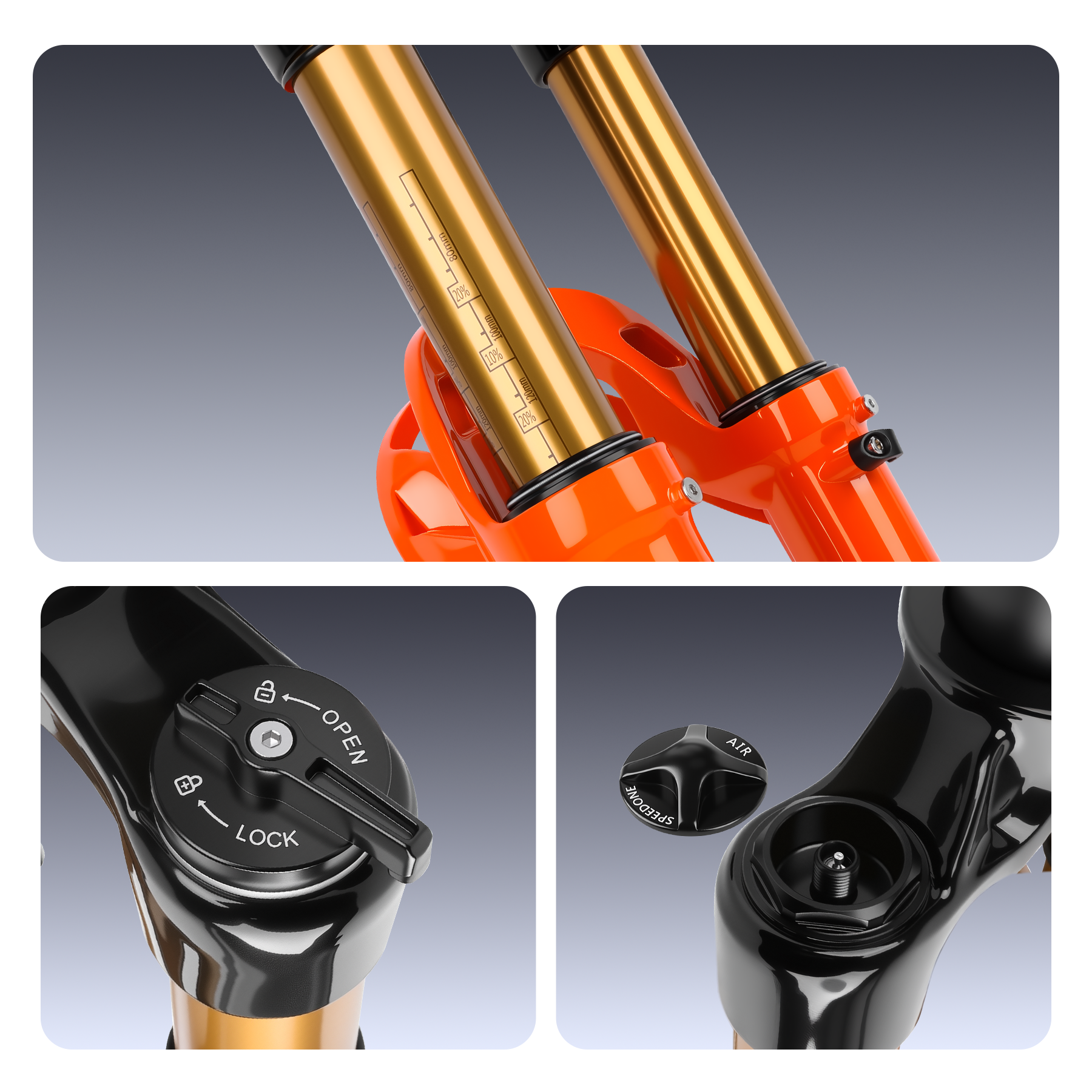

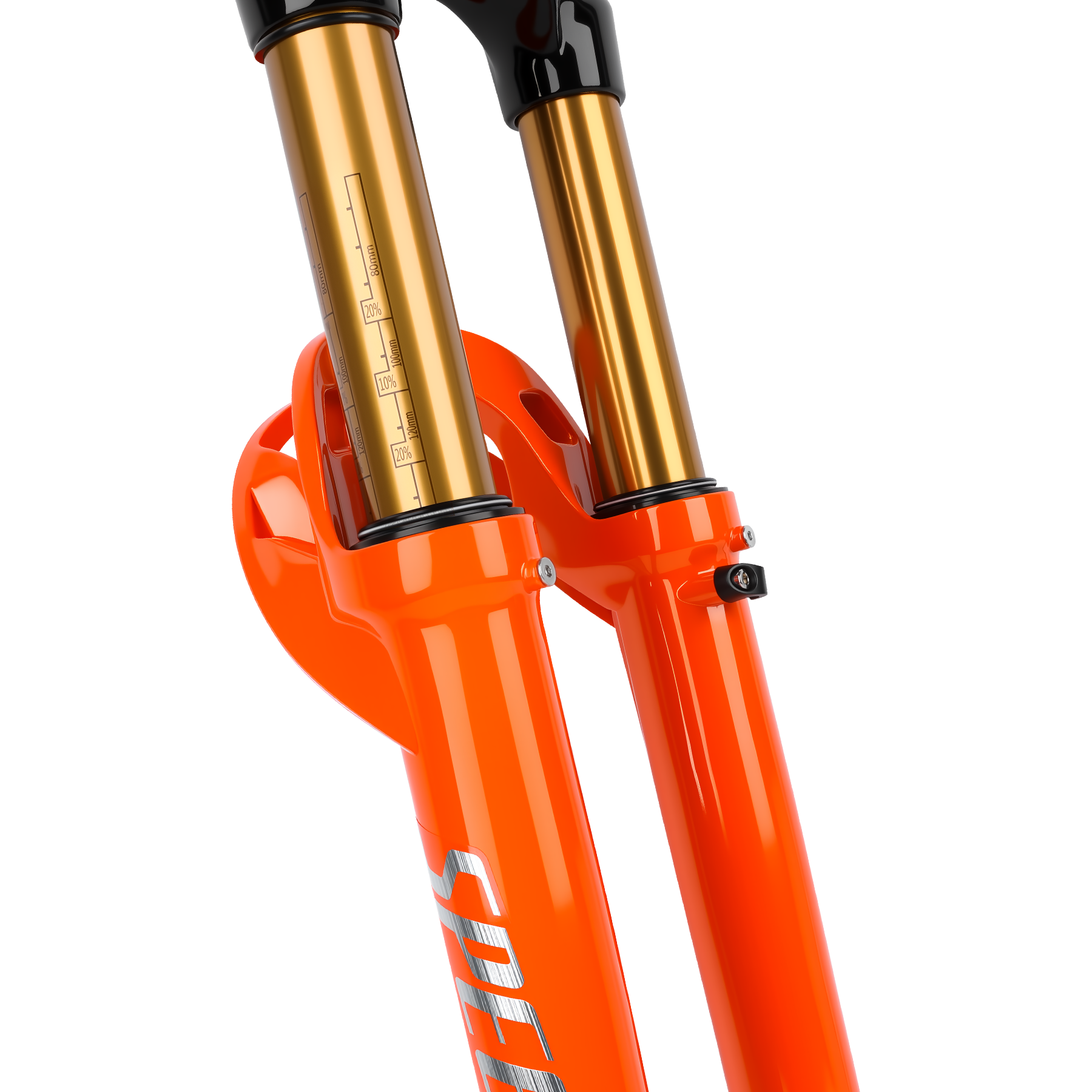

Anodized inner tubes with multi-color appearance—wear-resistant and corrosion-resistant, visually more eye-catching. The golden inner tube is with black/golden fork legs, which is both textured and durable.
Air pressure damping system—adjustable air pressure, adapt to different weights and road conditions. pressure damping design, riding is more gentle, and the damping effect can be slightly adjusted according to personal habits.

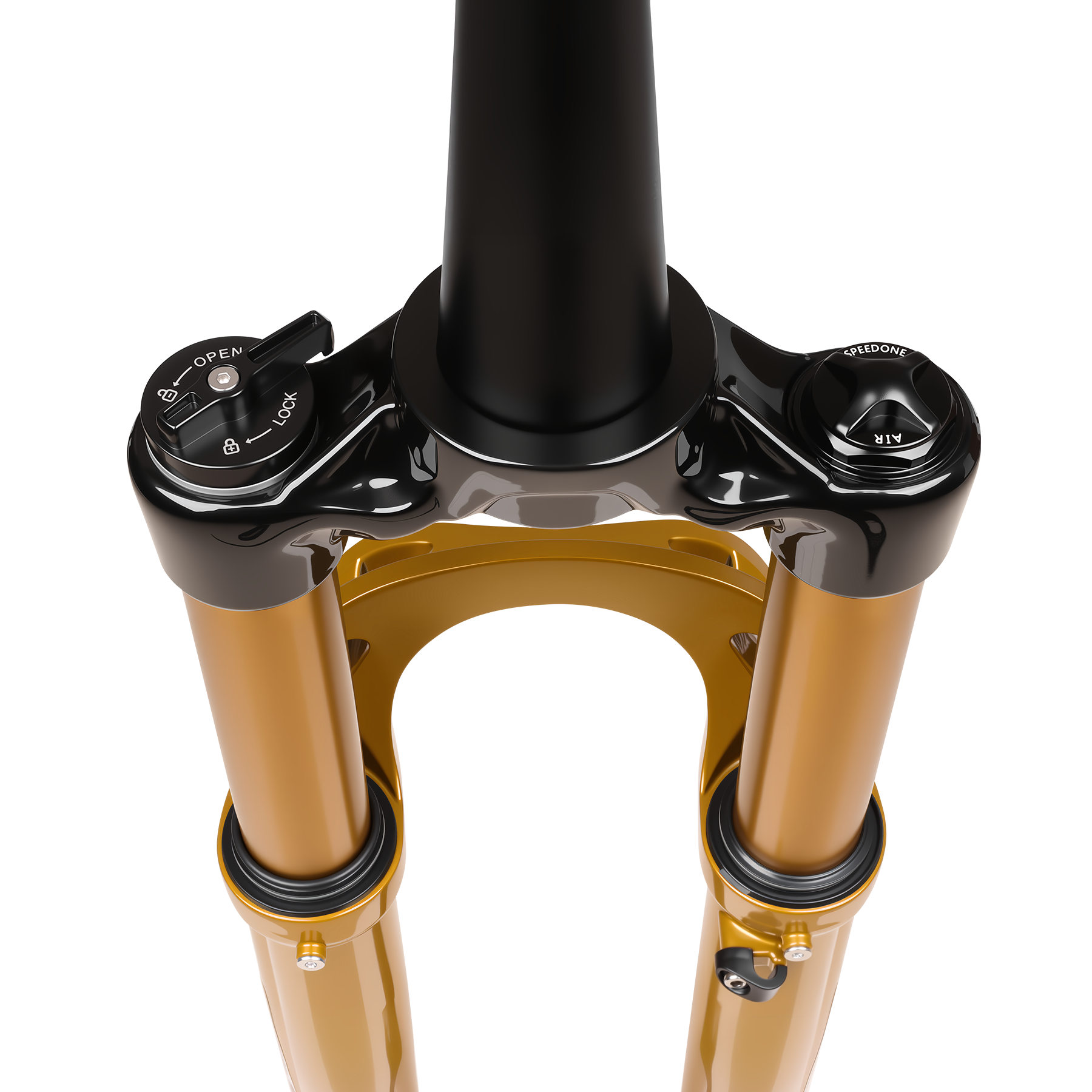

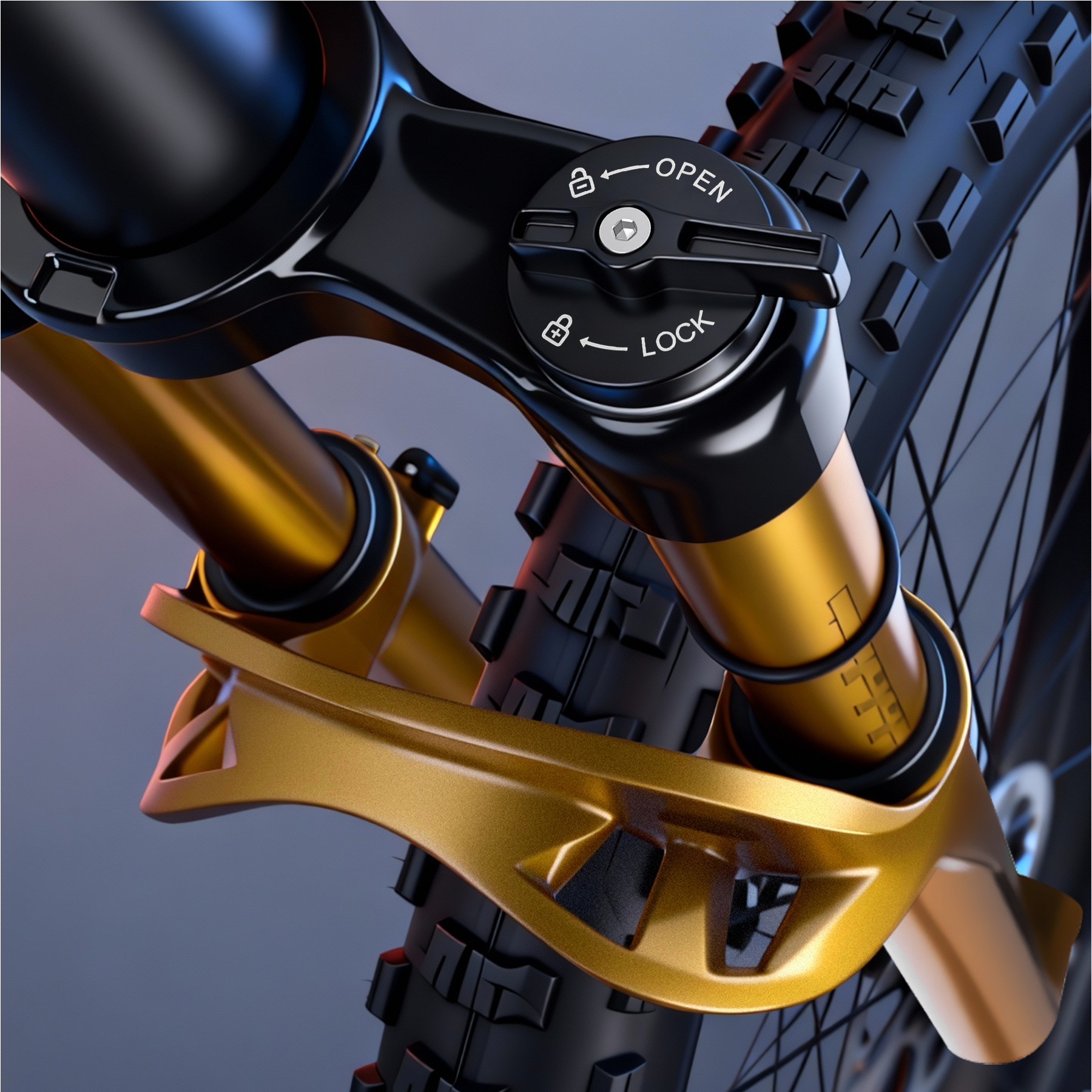

Shoulder control lockout system high air pressure adjustment— can complete the lockout switch with a finger operation. The air pressure can be adjusted to 130PSI, and it is easy to deal with uphill and flat road
Specifications
Brand
BOLANY
Fork Type
Rear Axle Air Spring Fork
Travel
External Travel: 120mm, Working Travel: 80mm
Damping Adjustment
Not Supported
Inner Tube Diameter
32mm
Lockout System
Shoulder Control Lockout
Inner Tube Color
Gold
Leg Color

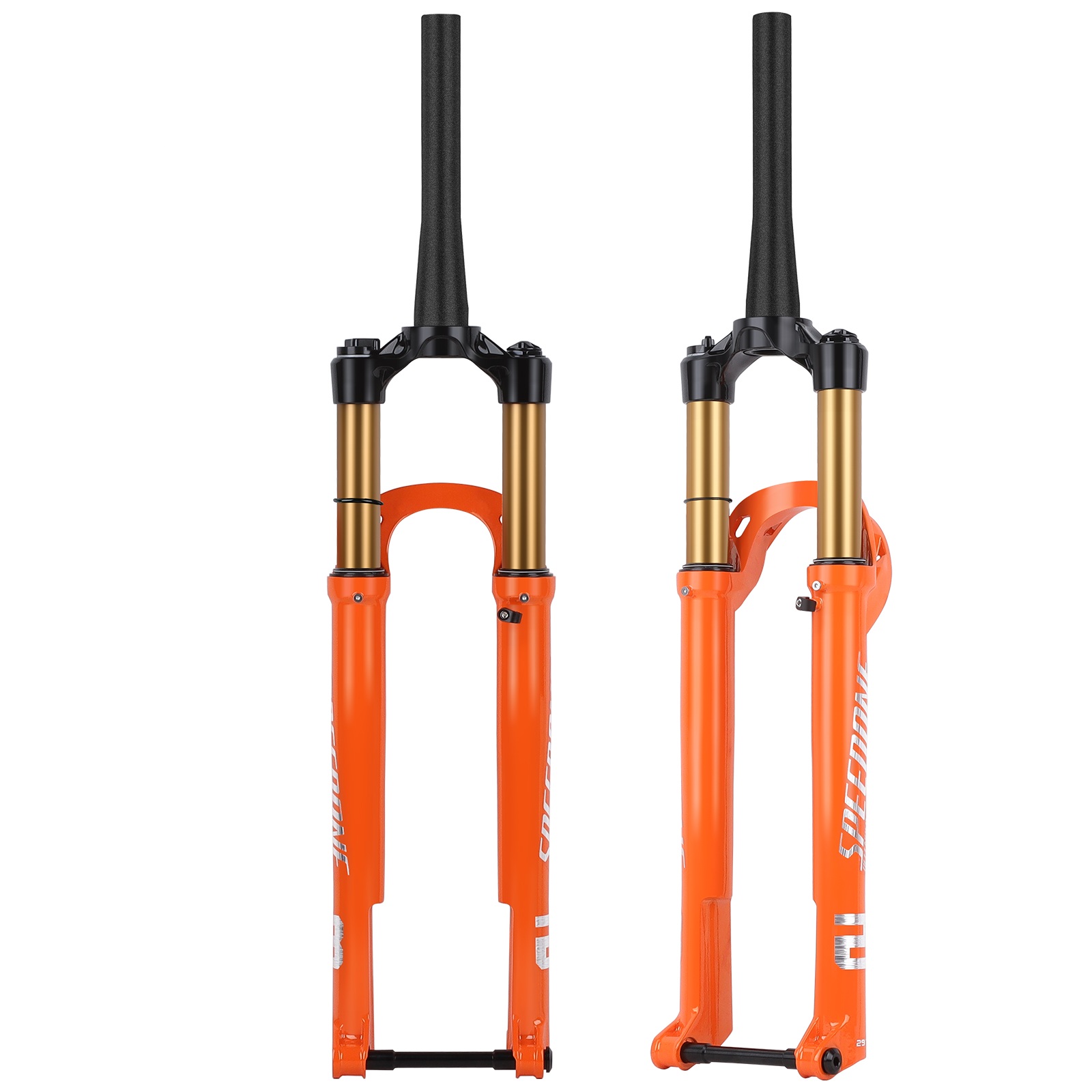

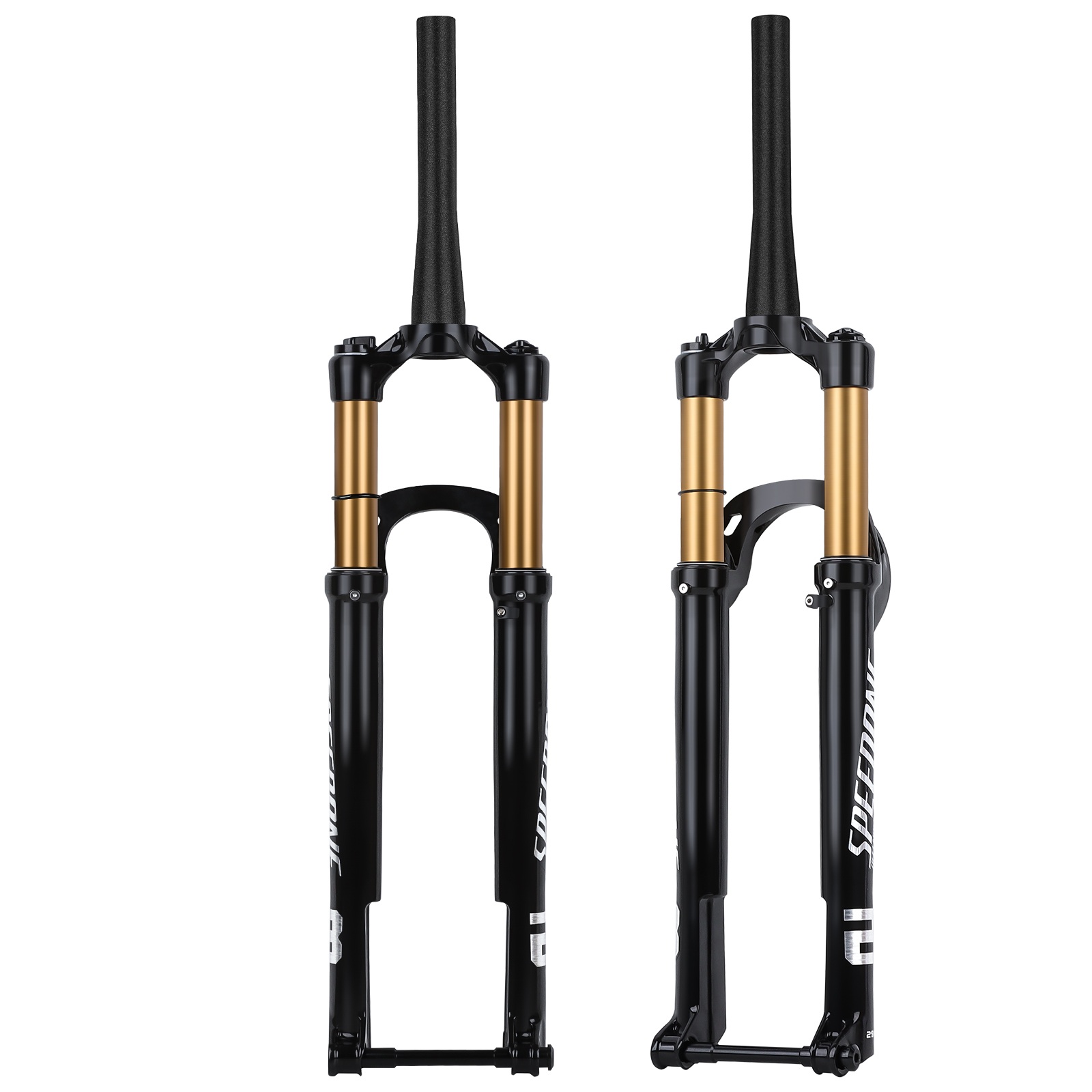

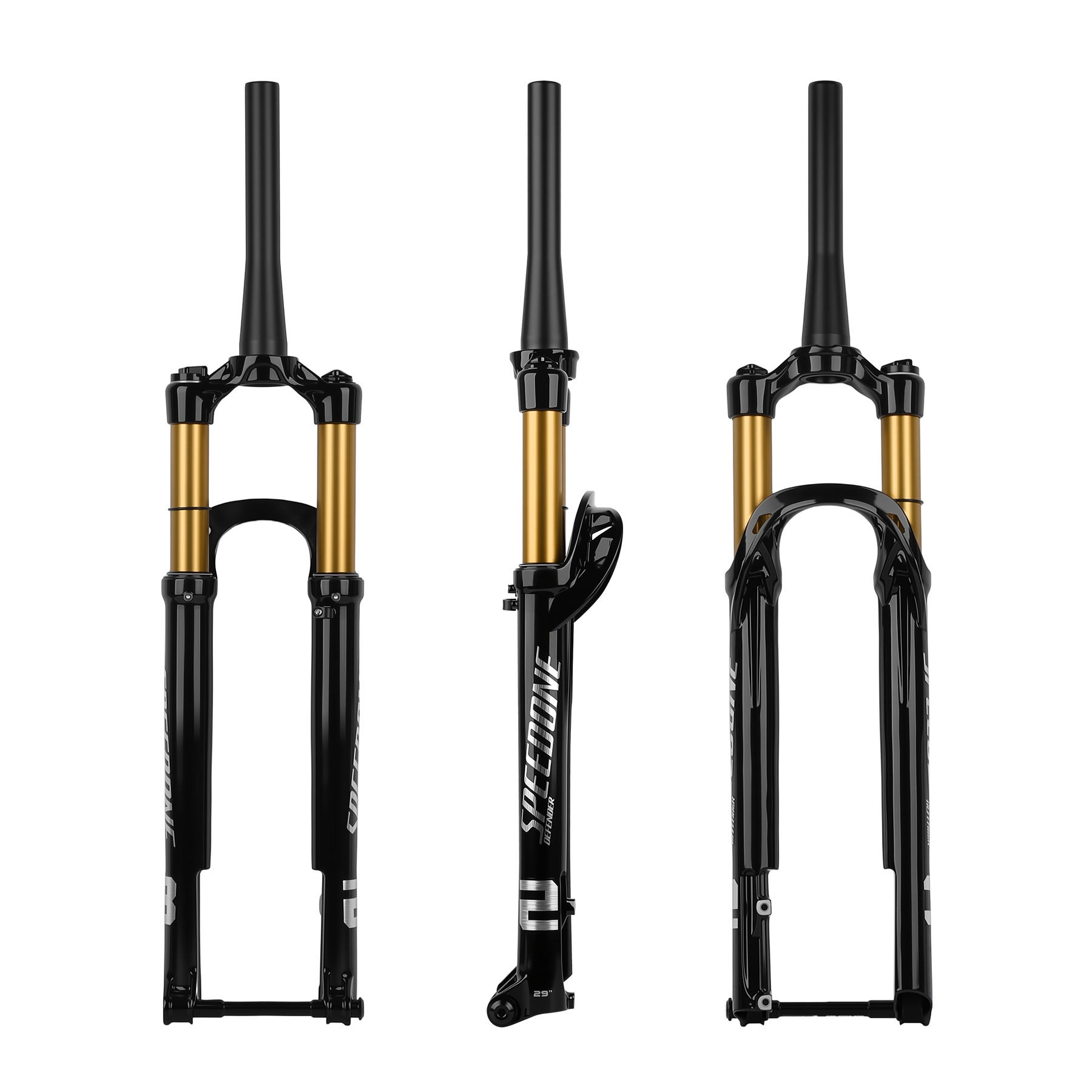

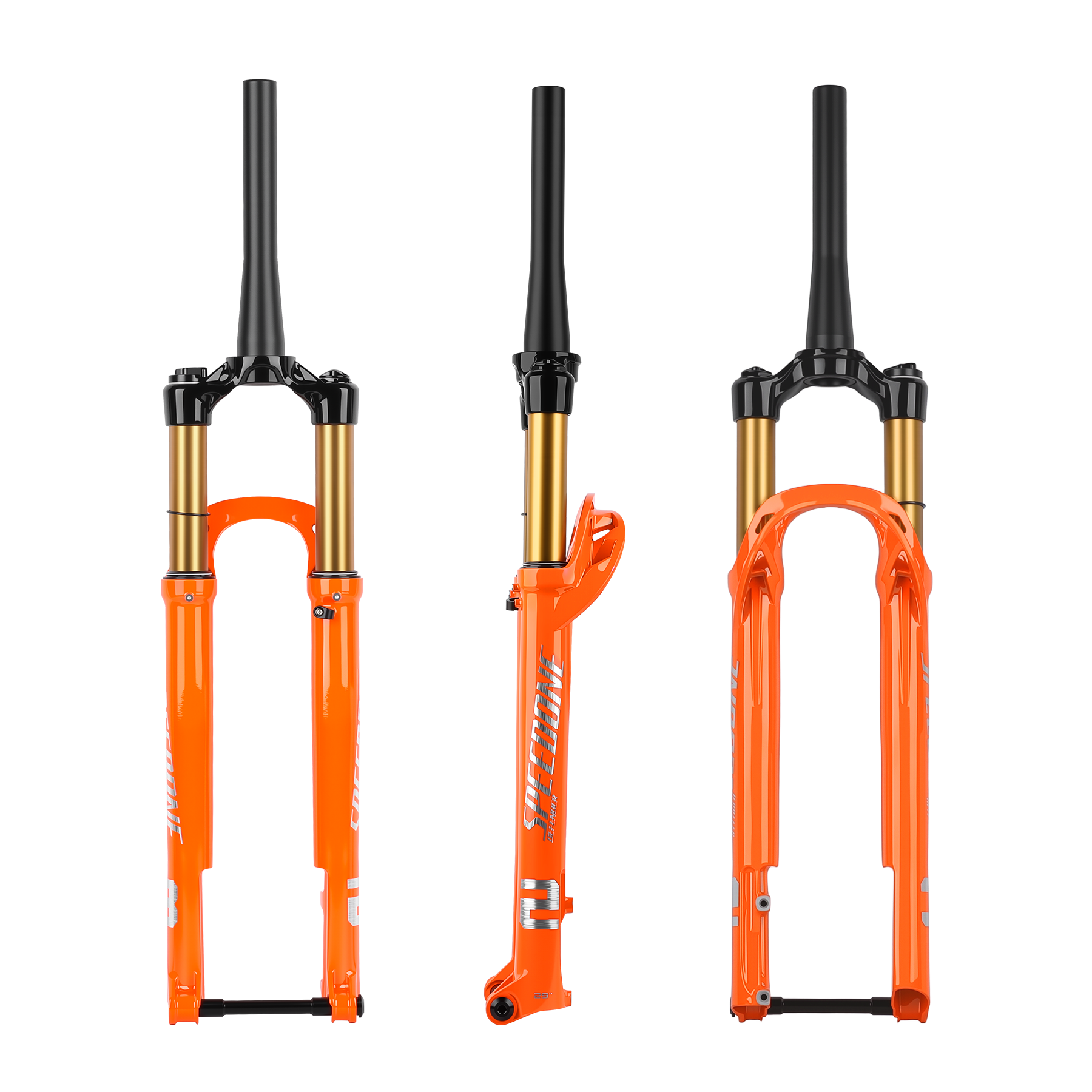

Black, Orange, Gold
Applicable Wheel

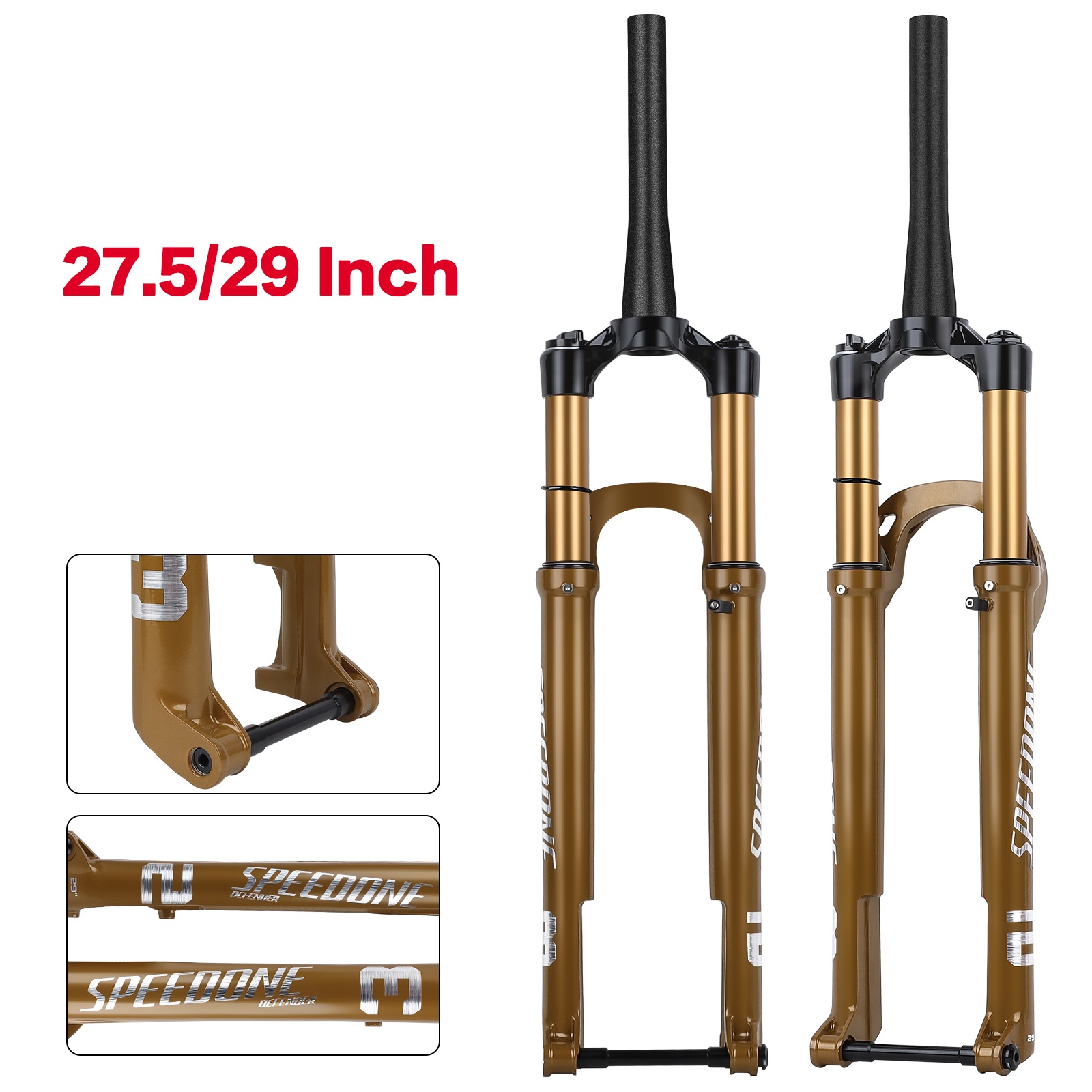

26"/27.5"/29"
Weight
27.5" 1700g (±30g)29" 1730g (±30g)
Maximum Supported Tire Width
2.3 inches
Steerer Specifications
Tapered 39.8mm
Steerer Length
220mm
Bushing Material
Teflon Sponge

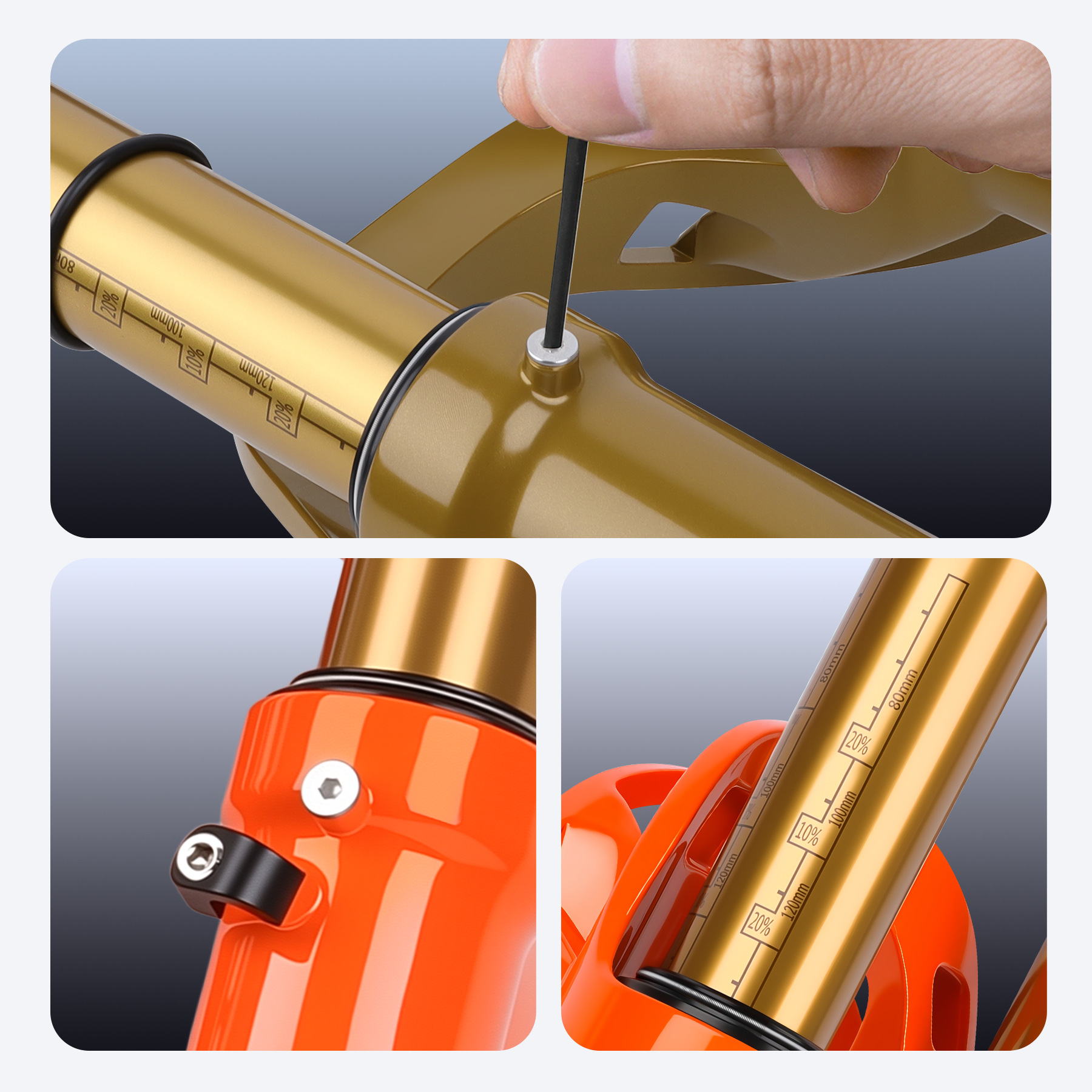

Oil Drain Screw
Supported
Hub Specifications
15x110mm (BOOST axle)
