DT337
DESCRIPTION

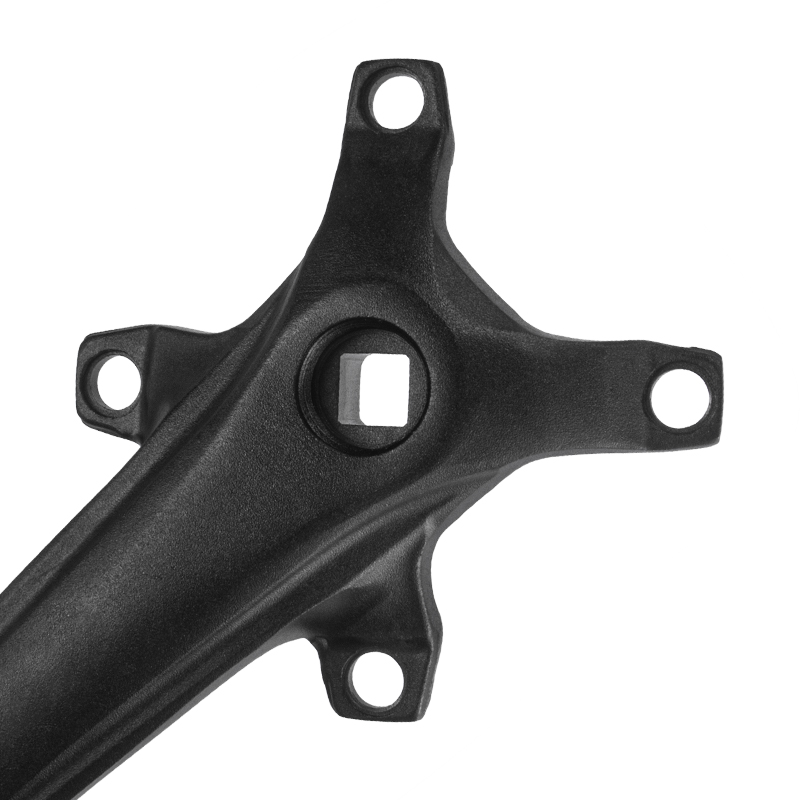

This crankset is like a forged crank, which effectively protects the aluminum alloy body while reducing weight internally, ensuring strength. The arched structure has a matte; the chromium-molybdenum steel axle core, with its precise threaded inner diameter, allows you to accurately connect to the port.
FEATURES
Main body aluminum alloy forged, surface rust prevention treatment.
Spray sand oxidation process, strong and impact resistant.

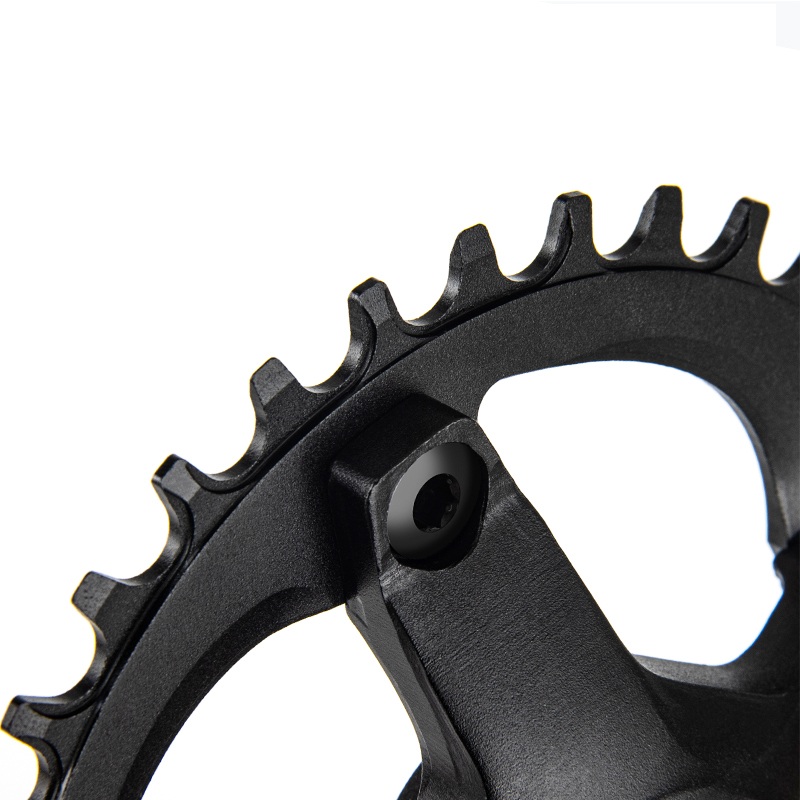

7075 aviation grade CNC gear disc.
Surface matte long-lasting as new, water repellent and wear resistant.
Specifications
Product Name
Round Hole Non-Gasket Tooth Plate
Center shaft

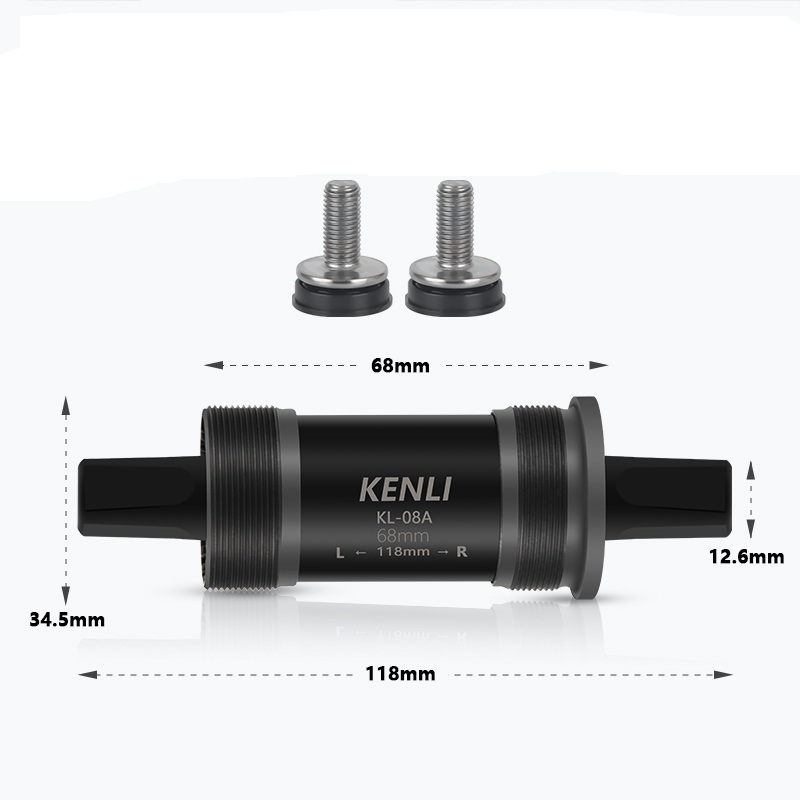

BB68/73 threaded center shaft
Pivot
24mm
Material
7075 Aluminum Alloy
Disc
Positive and negative gear, BCD104mm
Weight
859 grams
Compatible
8-12 speed shimano system
Crank length

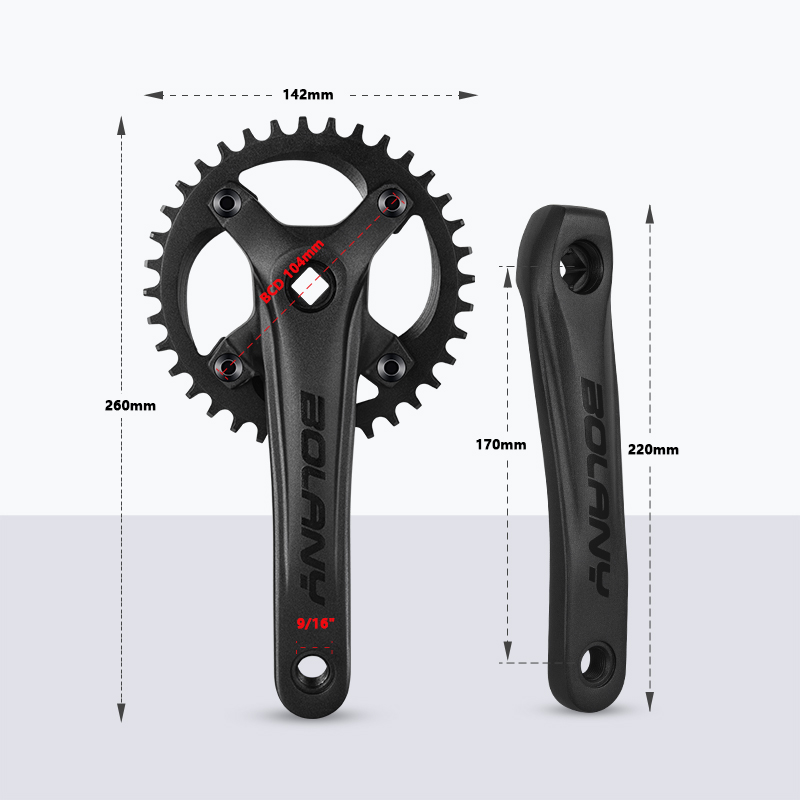

170mm
Number of teeth

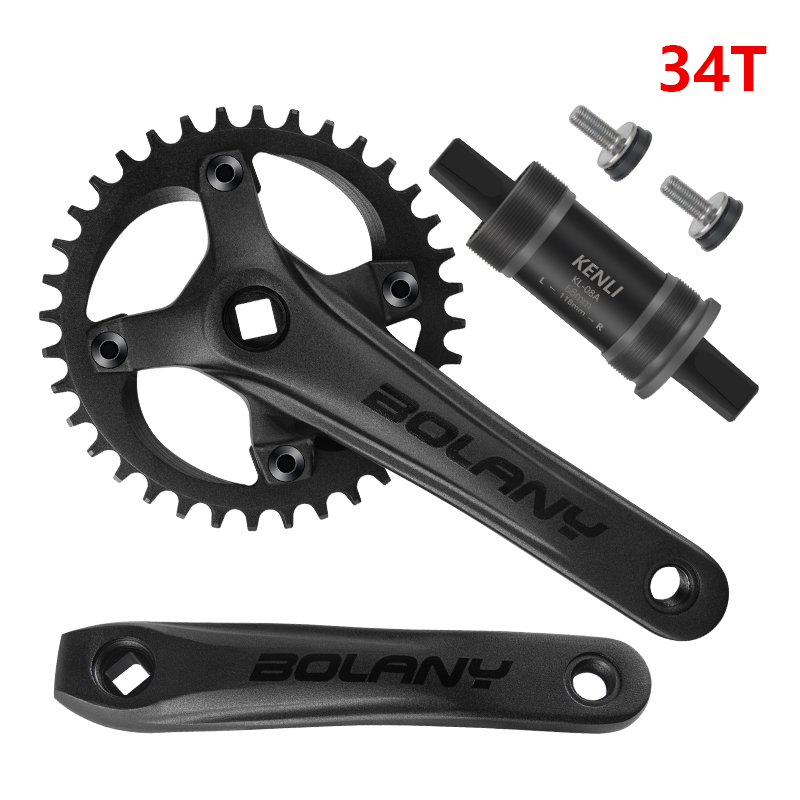

32T, 34T, 36T
Color
Black
